Energy Saving Front Rear Service P5 P6 P8 P10 Outdoor Led Displays

Product Feature

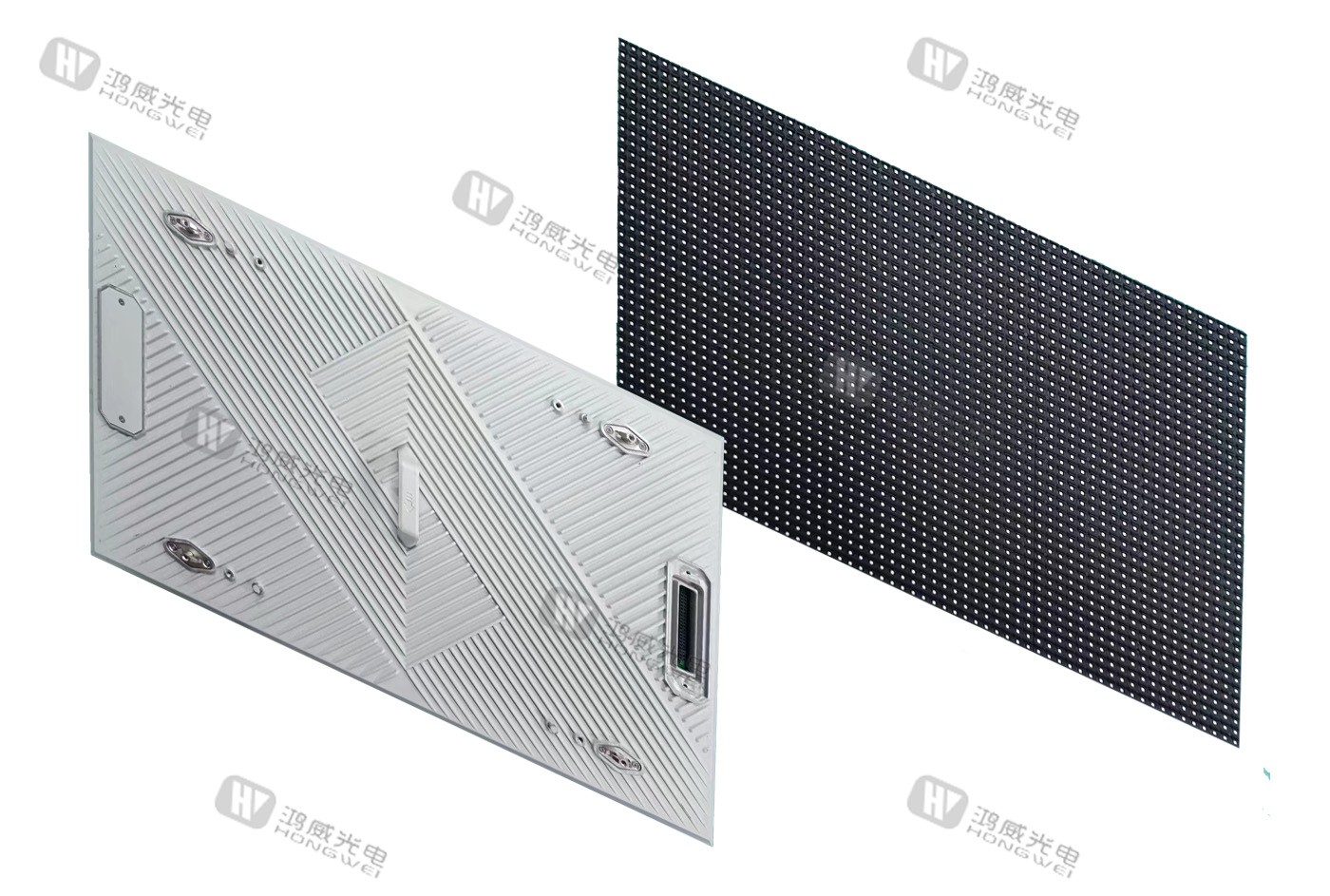

Our new design outdoor led display are totally front and rear service, made of aluminum led module case and aluminum cabinet with good heat disspiation, very suitable for extreamly hot and cold weather.

Pixel picth are available for P5 P6 P8 P10, can meet your request on different resoluiton.

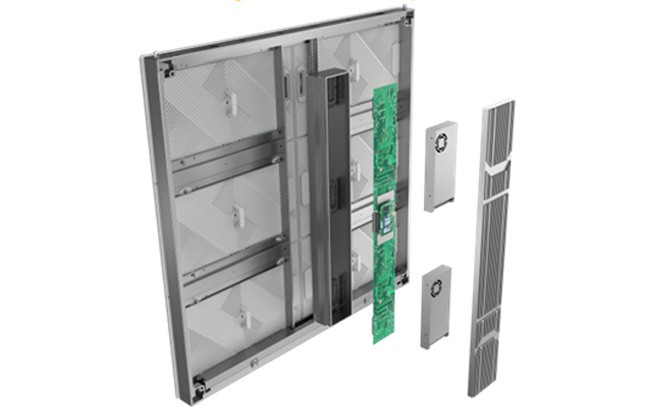

Cable-less design: more stable and safe
All-aluminum kit: high heat transfer efficiency, efficient heat dissipation
Energy saving: the use of split-voltage power supply drive mode to reduce energy consumption, the maximum power consumption of 650W/sqm
Double side IP65 waterproof, 6000-10000nits high brightness can be adjustable
Support curved corner splicing, support right angle corner splicing

More details

Light and slim design: 77mm thichness, 28kgs/panel (960x960mm)

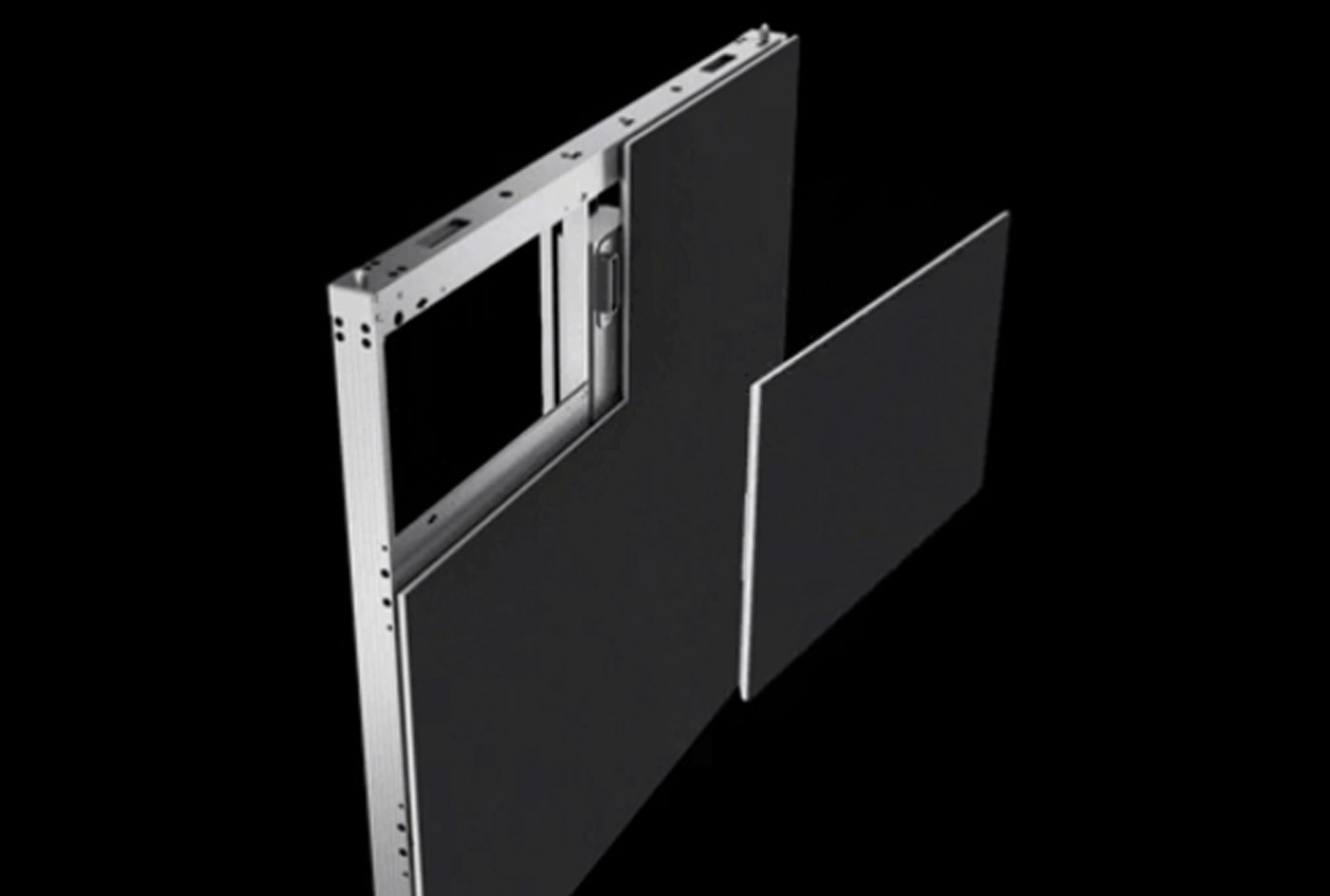

Totally front and rear service, easy for installation and mainteniance

Support curved corner splicing

Support right angle corner splicing

We can help you to design and customize your own led display, we work with professional engineers who continuously develop new products, constantly solve the pain points of the market and industry of led display.

One stop led video wall solutions: We provide complete led video wall proposal, including led panels, power
supply, control system, hanging beam, flight case, installation frame and other accessories.

Knowing that our products and your needs is the most important thing, suitable proposal can save so many times and cost.
24 hours online pre-sale and after-sales customer service, no time difference

Product Size

Different size are available: 960×320mm；1440×320mm; 960×640mm；1440×640mm; 960×960mm；1440×960mm.

Product Specification

P10 Outdoor LED Display

Pixel pitch	10mm
Led type	SMD3535
Usage	Outdoor
Protection class	IP65
Brightness	6500-10000nits adjustable
Led panel material	Aluminum
Led panel size	960 x 960mm
Scan	1/2S
Pixel density	10000 dot/m2
Weight	28 kgs/panel
Power supply	110/220v-50/60Hz
Max/Avg power consumption	650w/200w per led panel, energy saving

P8 Outdoor LED Display

Pixel pitch	8mm
Led type	SMD3535
Usage	Outdoor
Protection class	IP65
Brightness	6500-10000nits adjustable
Led panel material	Aluminum
Led panel size	960 x 960mm
Scan	1/5 S
Pixel density	15625 dot/m2
Weight	28 kgs/panel
Power supply	110/220v-50/60Hz
Max/Avg power consumption	650w/200w per led panel, energy saving

Technical Specification

Led lifetime	100000 hours
Viewing angle	140 ° / 140 °. Extended angle that improves viewing of images from the side
Working temperature and humidity	-30°C / 55°C 10%～95%
Refresh rate	1920-3840Hz
Control system	Novasater/Colorlight/Linsn
Video signal input	HDMI, DVI, VGA…
Grayscale	14-16 bit
Brightness control	Programmable
