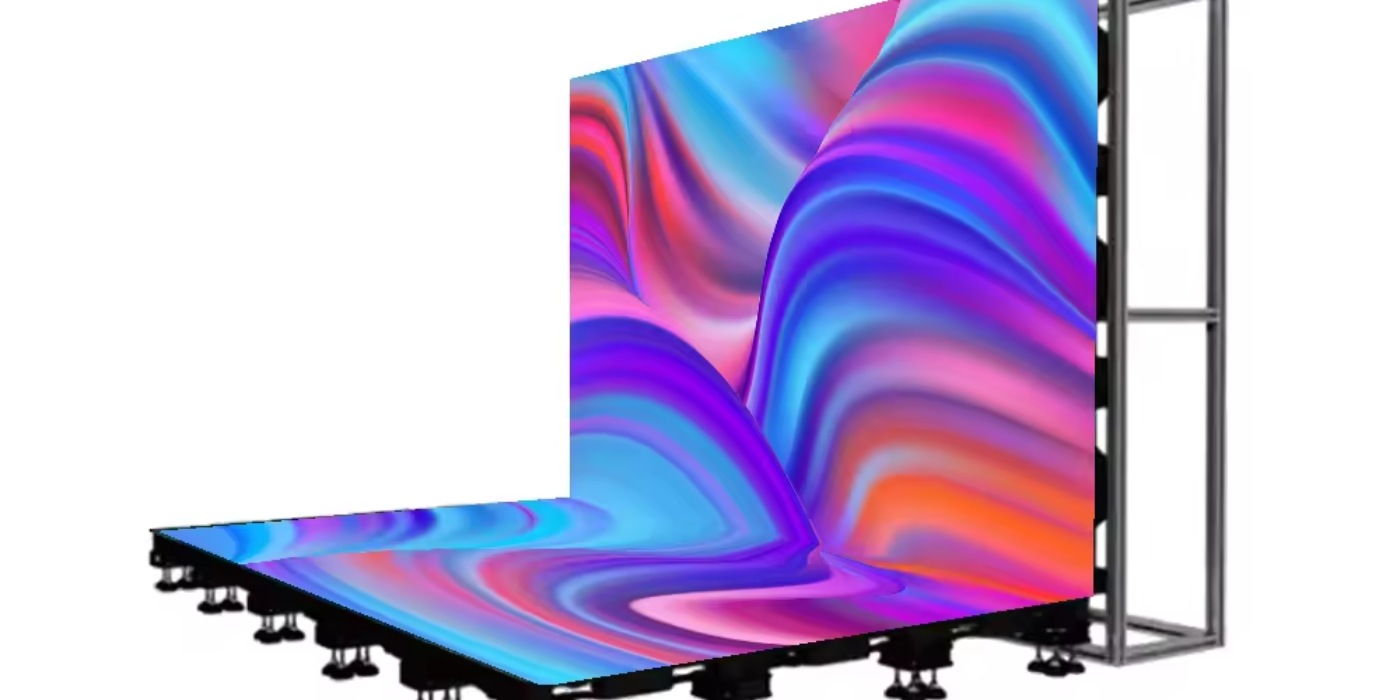

Foot Cup Installation: The LED floor tile screen boasts a unique foot cup installation system. The 1000mm x 500mm box features 6 foot cups, while the 500mm x 500mm box incorporates 4, ensuring faster and more level installation, guaranteeing a smooth and even surface.
High Load-Bearing Performance: Constructed with an iron box material design, this LED floor tile screen can withstand up to 2 tons of weight. Additionally, its die-casting aluminum structure design is capable of bearing 1 ton per square meter, ensuring stability and durability even under heavy loads.
High Contrast: Featuring patented technology masks, the LED floor tile screen offers an exceptionally high picture contrast, resulting in a clearer and more vivid playback effect. This ensures that images and videos are displayed with stunning clarity and depth.
Adjustable Thickness: The screen's thickness measures 8cm, but post-installation adjustments allow for a thickness of 13-15cm (subject to coordination). This flexibility enables it to adapt to various installations and environments.
Ultra-Wide Viewing Angle: With a viewing angle of 140°, the LED floor tile screen offers a full and immersive visual experience. No matter where you stand, the colors, images, and videos will appear vibrant and lifelike.
Smooth Broadcasting: Synchronizing with a computer for point-to-point playback, the LED floor tile screen allows for seamless switching between pictures and videos. Its high refresh rate ensures ultra-high-definition visuals with natural colors and no eye strain, delivering a truly remarkable visual experience.

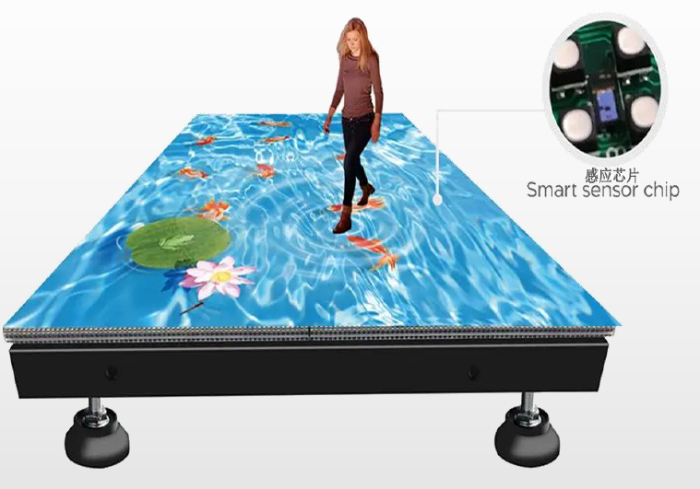

1.The sensing chip is pasted inside the module, which can track the steps and present a timely picture effect with the human body's activities.
2.Fast sensing and high accuracy, 360° no dead angle, no blind area, and no need to add radar.
3.It can achieve multi-touch and not affected by external factors; The sensing speed reaches 0.14s with high sensitivity. Each module has 8 sensing chips..
1.Easy operation, four-point quick calibration, no need installs any plug-ins and can multi-touch on the irregular plane.
2.Radar 270° fan-shaped diffusion scanning, support the radius of 7 meters, 10 meters, 15 meters, 25 meters and other types, the projection medium is normal led screen or dance floor led screen. The radar can be cascaded to cover a larger area, sensing speed 0.5s.
3.Disadvantage is the sensing speed and sensitivity will be affected by light and obstructions.
Only play regular advertising pictures and video text, etc, if need interactive affects you must add peripherals(radar) to achieve interactive effects.
Pixel PitchP2.604, P2.976, P3.91, P4.81
Refresh rate3840hz
Led Panel Size500x1000mm
Brightness2500nits
Inquire
Pixel PitchP2.604, P2.976, P3.91, P4.81
Refresh rate3840hz
Led Panel Size500x1000mm
Brightness2500nits
Inquire
Pixel PitchP2.604, P2.976, P3.91, P4.81
Refresh rate3840hz
Led Panel Size500x1000mm
Brightness2500nits
Inquire
Pixel PitchP2.604, P2.976, P3.91, P4.81
Refresh rate3840hz
Led Panel Size500x1000mm
Brightness2500nits
Inquire

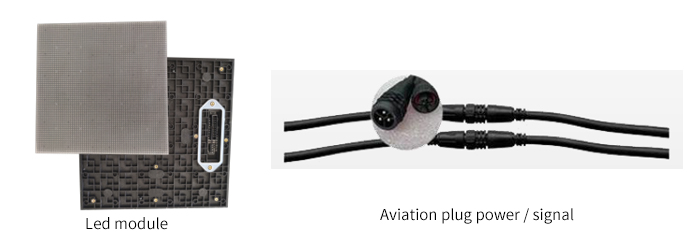

Sensor chip is located in the front of the light board, each module 8 sensor chips, 128 per square; Fast sensing speed, high accuracy, 360 degrees without dead angle, no blind spot, no need to add peripheral interactive equipment.
Foot cup mounting solution is easy to install and has a load capacity of 2 tons; the design height is adjustable from 13-15cm. Use immersion three-proofing paint to prevent moisture and oxidation.
Aviation plug power: International pure copper wire rod, pin butt joint design, waterproof and anti-falling.
Aviation plug signal: CAT6 cable, pin butt joint design, waterproof and anti-falling.
Ground support: Foot cup thread mouth design, adjustable height within 130-150mm, slotting design and more convenient installation.

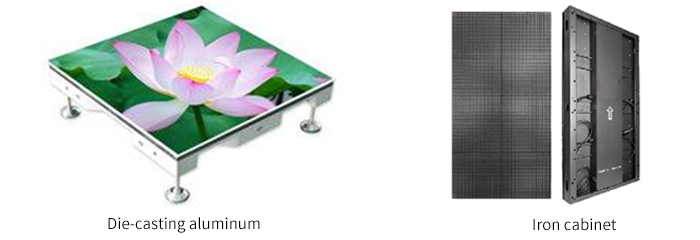

Iron box material：Double-layer plate reinforcement, penetrating reinforcement, stronger load-bearing, up to 2 tons; Cabinet size can be 500x1000mm, 500x500mm
Die-casting aluminum：High precision, lightweight, easy to install, load capacity up to 1 ton； Cabinet size will be 500x500mm

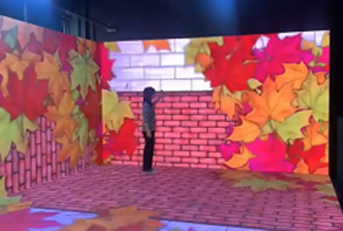

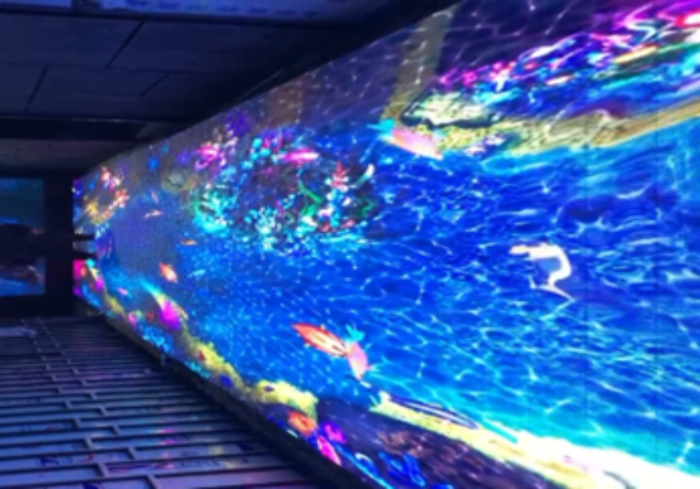

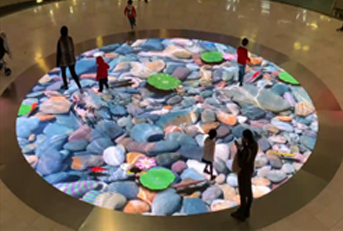

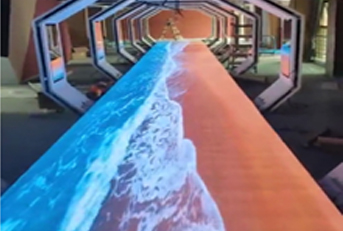

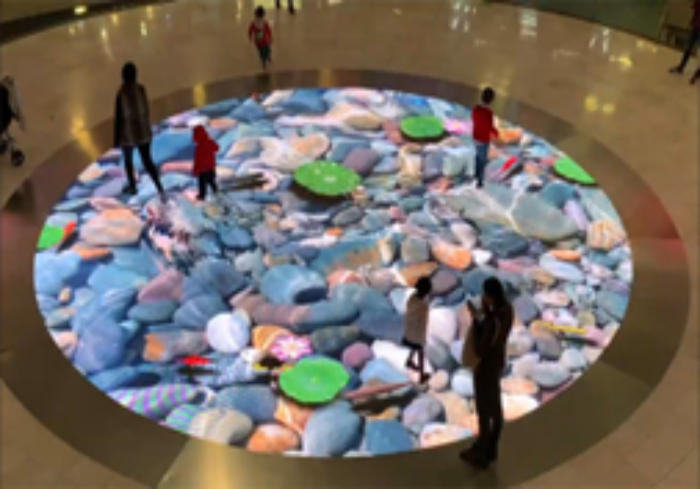

Dance floor led screen application field：Shopping malls, bars and discos, stage performances, science and technology museums, event celebrations, exhibition halls, scenic spots and other leisure and entertainment venues.

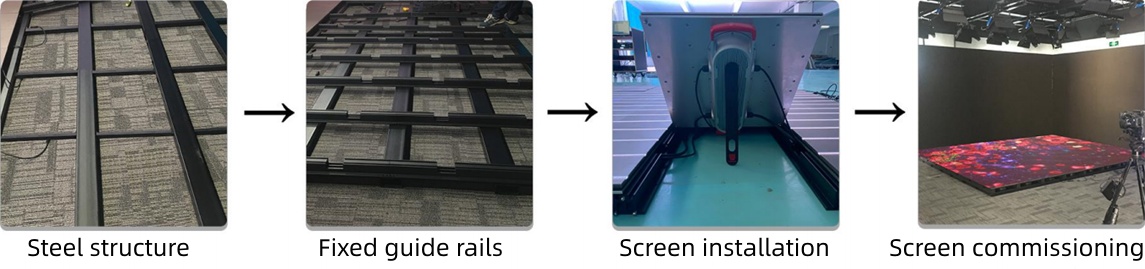

Foot installation method
We provide the accessories for interactive dance floor LED display products include ground support, 5V data cable, aviation plug power cable, aviation plug signal cable, aluminum power box, card board, receiving card, etc.
The quality and applicability of these accessories are crucial to the installation and operation of interactive dance floor LED display. Appropriate accessories can ensure that the display screen is safely and stably fixed on the wall, bracket or column, and can be connected to power and signal sources normally to ensure high-quality output of the display screen.
5V data cable
aluminum power box
aviation plug power cable
aviation plug signal cable
card board
flat cable
ground support
power supply
receiving card
