Product Feature

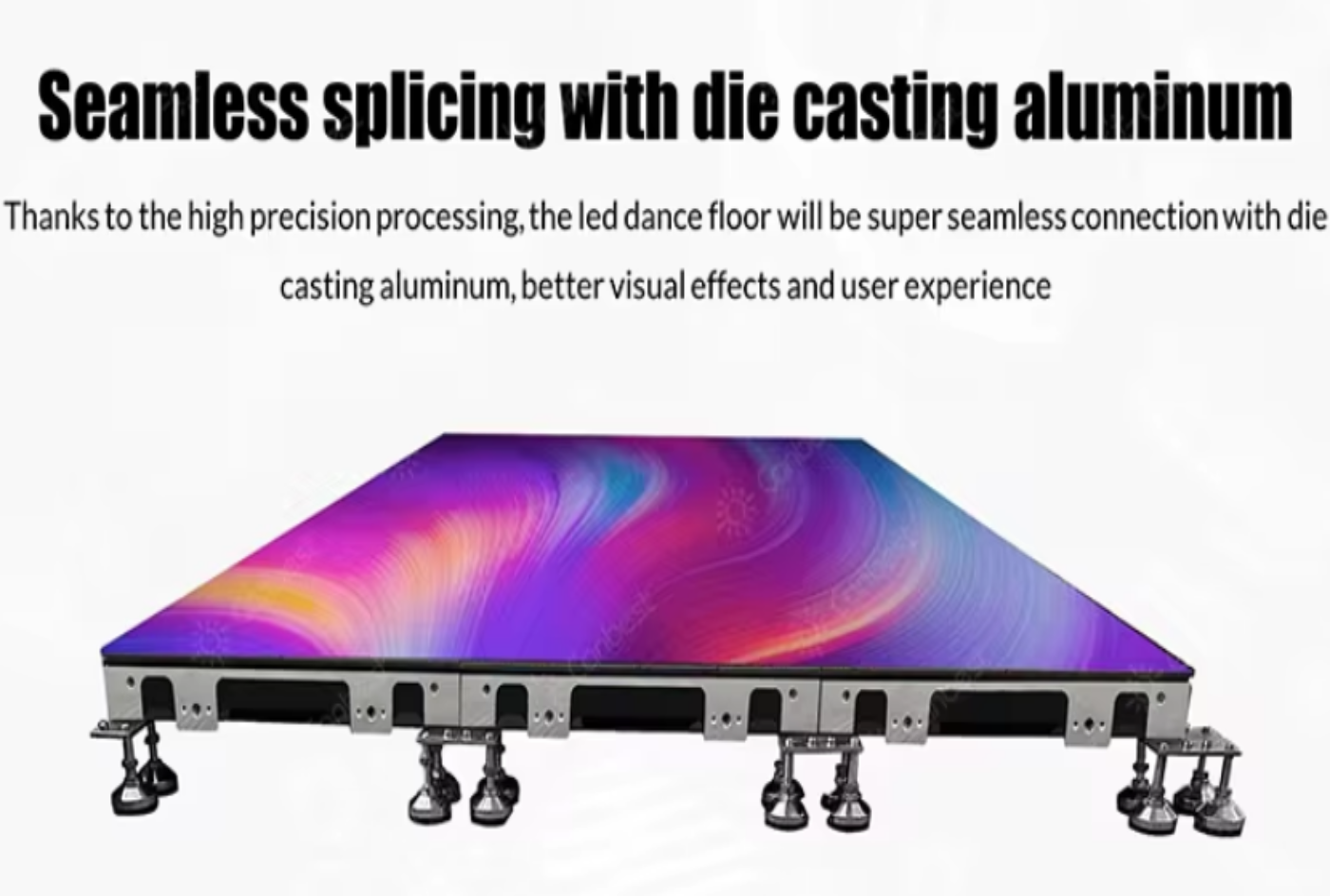

1. High-strength aluminum alloy casting:
Ensures extremely high manufacturing precision, light structure, convenient installation, outstanding load-bearing capacity, up to 1 ton; the box size is carefully designed to be 500x500 mm, suitable for a variety of application scenarios.
2. Selected raw materials and accessories:
Aviation plug power supply: Adopts international standard pure copper wire, and the pin docking design ensures excellent waterproof and anti-falling performance, escorting safe and stable power supply.
Aviation plug signal line: Adopts CAT6 specification cable, also with precise pin docking process, strengthens waterproof and anti-fall characteristics, and ensures unimpeded signal transmission.
Ground support system: The innovative foot cup threaded port design supports free adjustment of height within the range of 130 to 150 mm, and the unique card slot design further simplifies the installation process and improves efficiency.
3. Strengthened iron box series:
Combining minimalist aesthetics with the concept of fast installation, it is designed for efficient deployment. The foot cup installation solution is not only easy to assemble, but also has a load-bearing capacity of up to 2 tons, which can adapt to a wider range of application load requirements; its height adjustment range is flexible and can be freely set between 13 and 15 cm, and it uses immersive three-proof paint treatment to effectively prevent moisture and oxidation and extend its service life.
4. Broadcast control technology:
It realizes computer synchronous point-to-point playback, whether it is pictures or videos, the switching is smooth and free. High-brush ultra-high-definition display technology ensures that the colors are clear and natural without flickering, bringing the audience the ultimate visual enjoyment and creating an immersive viewing experience.
More details
We can help you to design and customize your own led display, we work with professional engineers who continuously develop new products, constantly solve the pain points of the market and industry of led display.
One stop led video wall solutions: We provide complete led video wall proposal, including led panels, power
supply, control system, hanging beam, flight case, installation frame and other accessories.
Knowing that our products and your needs is the most important thing, suitable proposal can save so many times and cost.
24 hours online pre-sale and after-sales customer service, no time difference
Product Size
Product Specification
P2.604 dance floor led display-aluminum
Pixel pitch | 2.604mm |
Led type | SMD1415 |
Usage | Indoor |
Protection class | IP33 |
Brightness | 2500nits |
Led panel material | Die casting aluminum with Front/back service |
Led panel size | 500 x 500mm |
Refresh rate | 3840Hz |
Pixel density | 147456 dot/m2 |
Weight | 10 kgs |
Power supply | 110/220v-50/60Hz |
Avg power consumption | 250w per square meters |
P2.976 dance floor led display-aluminum
Pixel pitch | 2.976mm |
Led type | SMD1415 |
Usage | Indoor |
Protection class | IP33 |
Brightness | 2500nits |
Led panel material | Die casting aluminum |
Led panel size | 500x1000mm |
Refresh rate | 3840Hz |
Pixel density | 112896 dot/m2 |
Weight | 10kgs |
Power supply | 110/220v-50/60Hz |
Avg power consumption | 250w per square meters |
P3.91 dance floor led display-aluminum
Pixel pitch | 3.91mm |
Led type | SMD1921 |
Usage | Indoor |
Protection class | IP33 |
Brightness | 2500nits |
Led panel material | Die casting aluminum |
Led panel size | 500 x 500mm |
Refresh rate | 3840Hz |
Pixel density | 65536 dot/m2 |
Weight | 25 kgs |
Power supply | 110/220v-50/60Hz |
Avg power consumption | 250w per square meters |
Technical Specification
Led lifetime | 100000 hours |
Viewing angle | 140 ° / 140 °. Extended angle that improves viewing of images from the side |
Working temperature and humidity | -30°C / 55°C 10%~95% |
Control system | Novasater/Colorlight/Linsn |
Video signal input | HDMI, DVI, VGA… |
Grayscale | 14-16 bit |
Brightness control | Programmable |
- PROGRAMMABLE ON AND OFF
- CAN ADD INTERACTIVE FUNCTION
- SUPPORTED VIDEO AND IMAGE FILES: AVI, WMV, MPG, MOV, VOB, MP4, FLV, Bmp, jpg, png ...
Product Application
Interactive dance floor led for shopping mall
Led floor tile screen for indoor activities
Dance floor LED display for stage

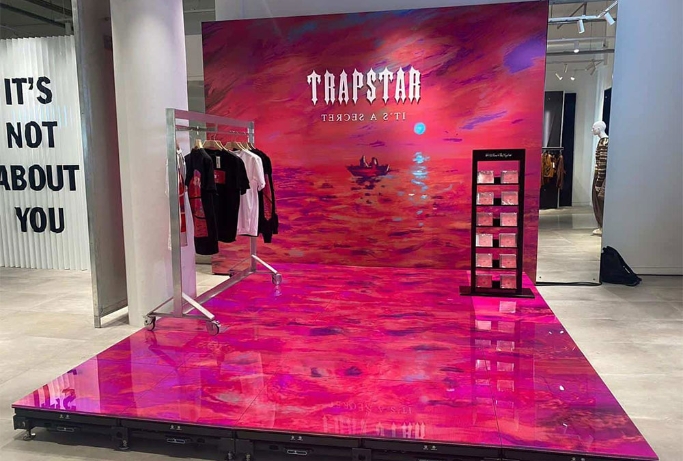

Immersive led dance floor display for exhibition halls
