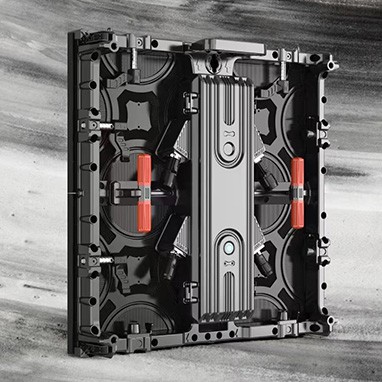

500x500mm Die Casting Led Panel P3.91 P4.81 Led Video Wall

Inquire

Product Feature

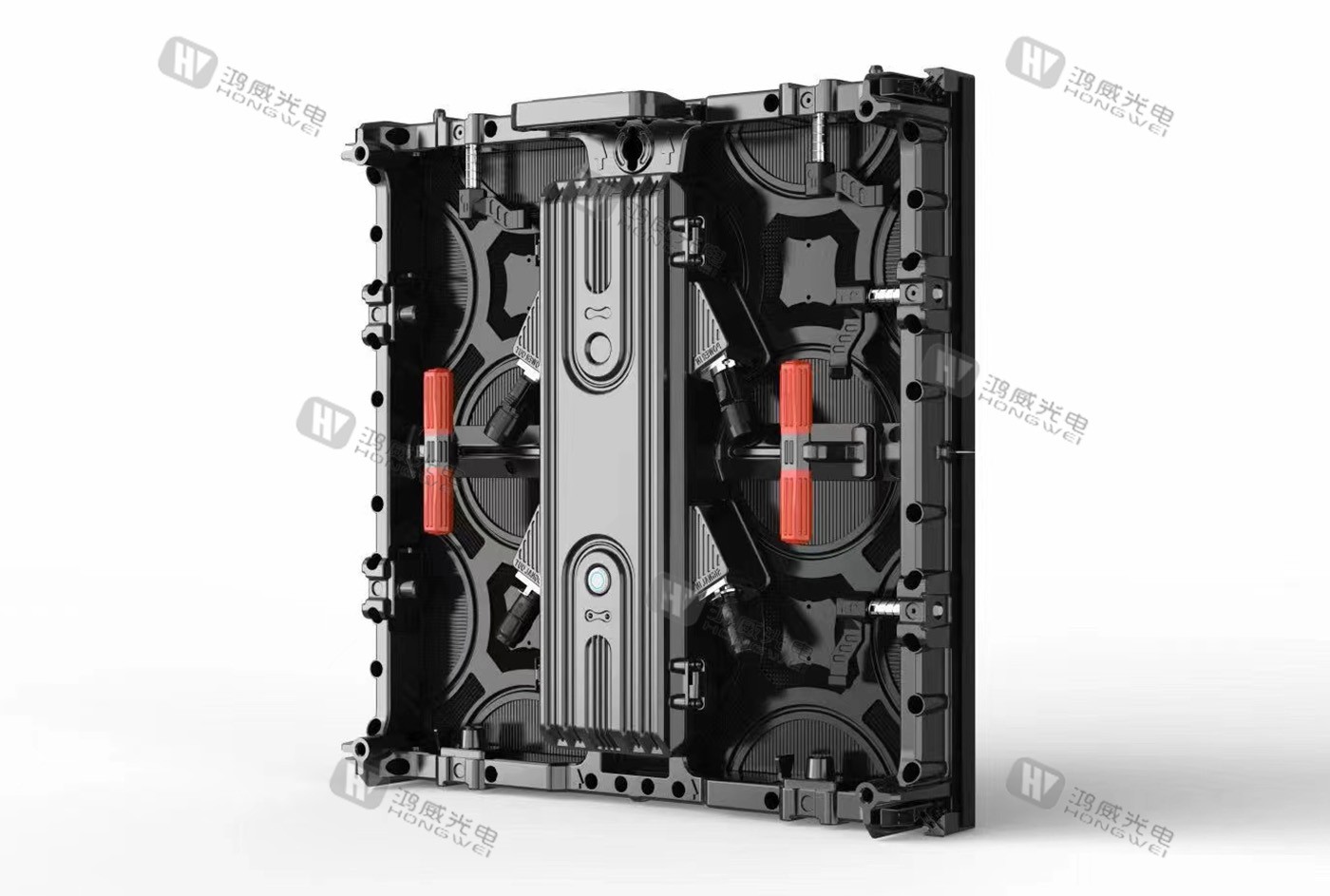

  • New design die casting aluminum, have 500x500mm and 500x1000mm
  • Can do cable free hard link design for inside connection

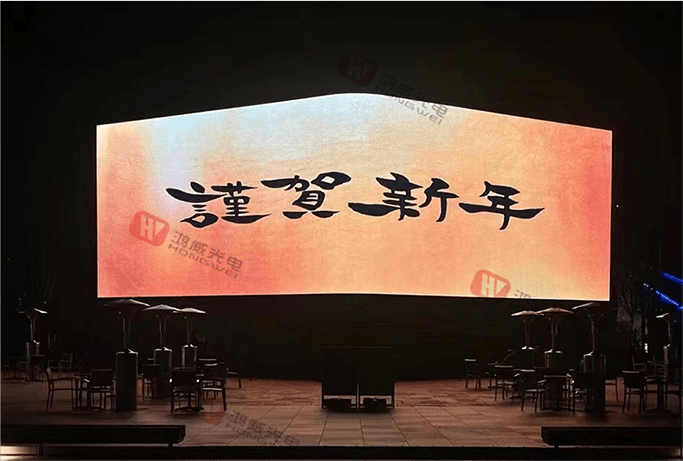

  • Concave and convex setup support
  • Perfect seamless stitching and fast installation
  • Lightweight and slim thickness
  • Front or back maintenance

More details

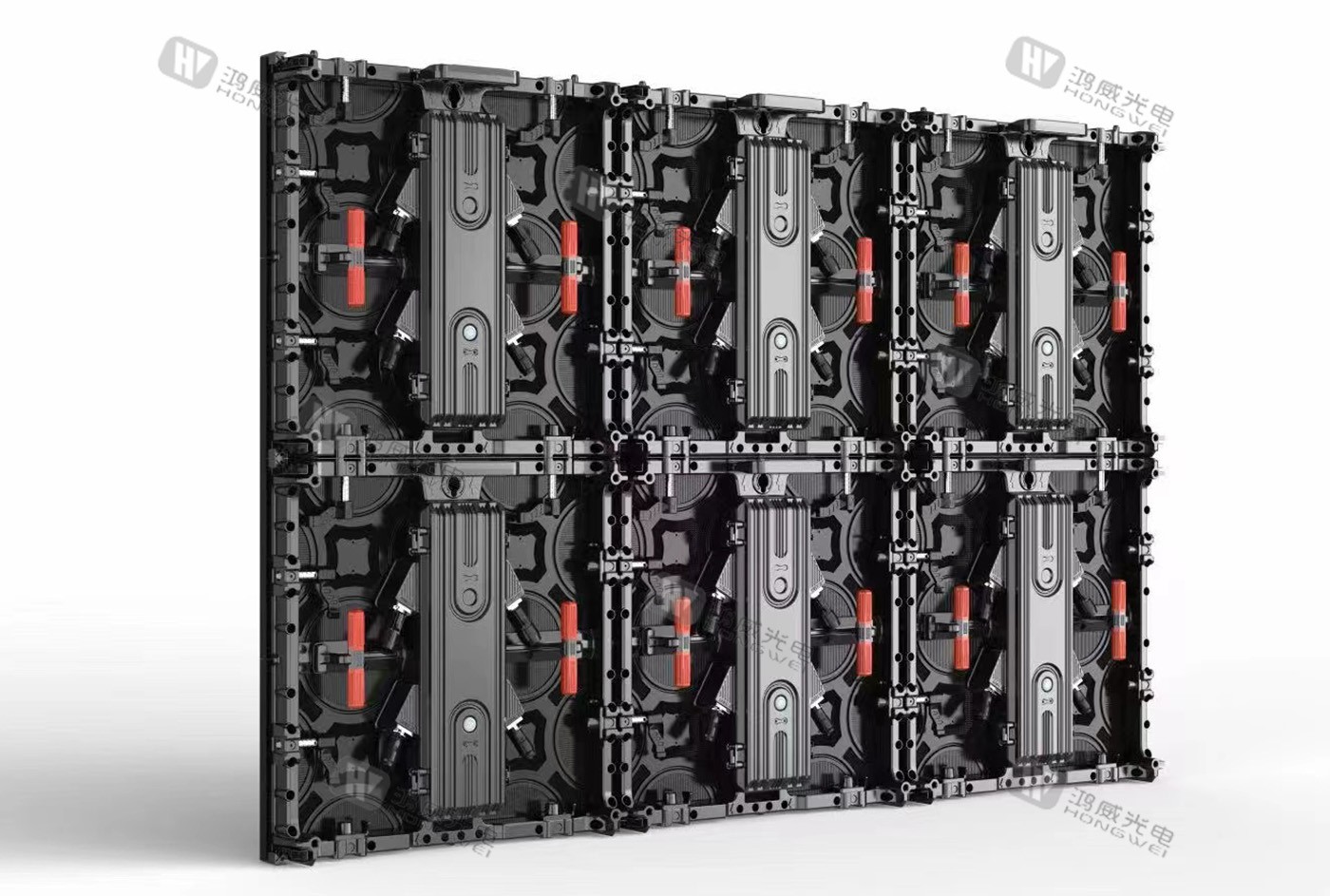

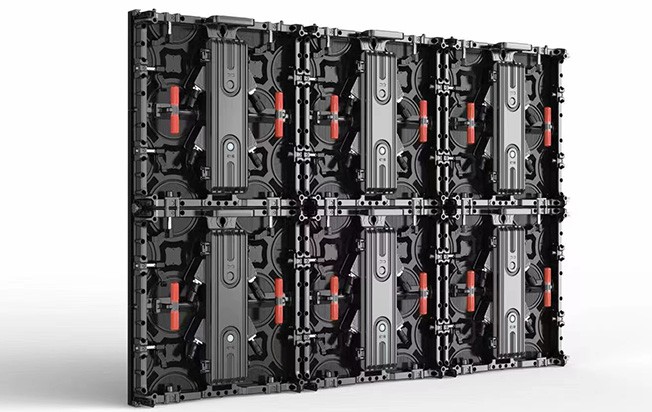

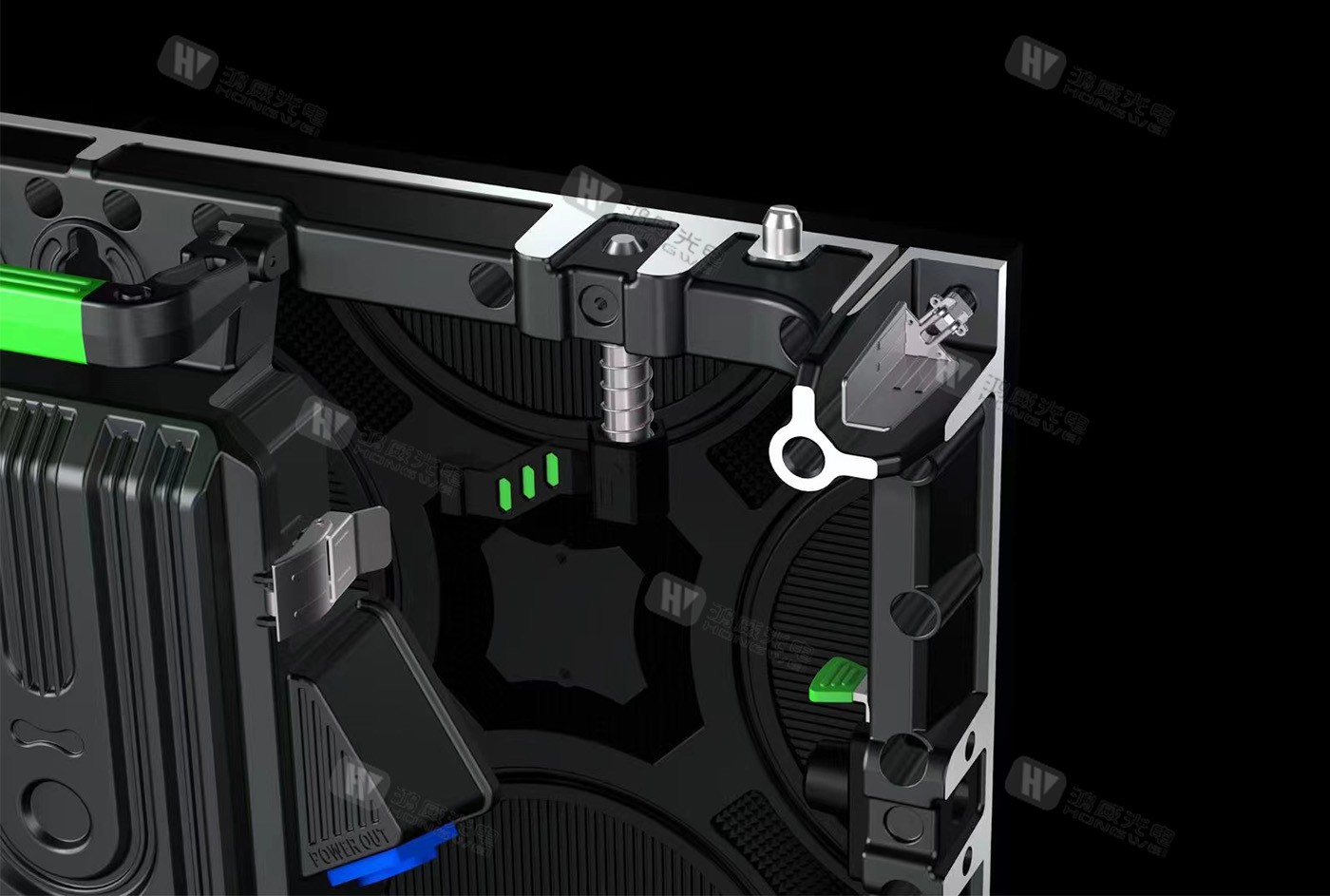

Fast Installation Lock and Seamless Side Lock

The side locks are used to tighten up the cabinets while installing, to reduce the gaps between cabinets. It is good to present the seamless screen.






Module Protection Corner

Corner protection designis avoiding any hits for modules' corner,100% protect LEDs.

We can help you to design and customize your own led display, we work with professional engineers who continuously develop new products, constantly solve the pain points of the market and industry of led display.

One stop led video wall solutions: We provide complete led video wall proposal, including led panels, power
supply, control system, hanging beam, flight case, installation frame and other accessories.

Knowing that our products and your needs is the most important thing, suitable proposal can save so many times and cost.
24 hours online pre-sale and after-sales customer service, no time difference

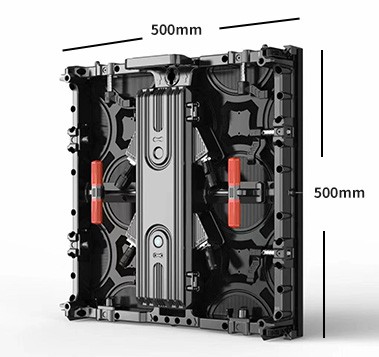

Product Size



Product Specification

Indoor LED Display

Pixel pitch 3.91mm
Led type SMD2121
Usage Indoor
Protection class IP33
Brightness 800nits
Led panel material Die casting aluminum

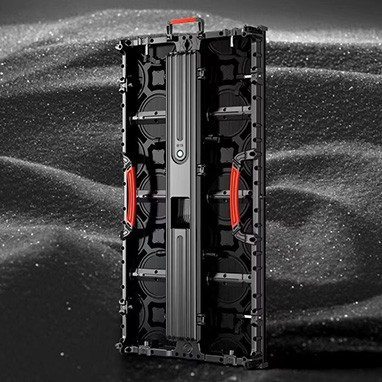

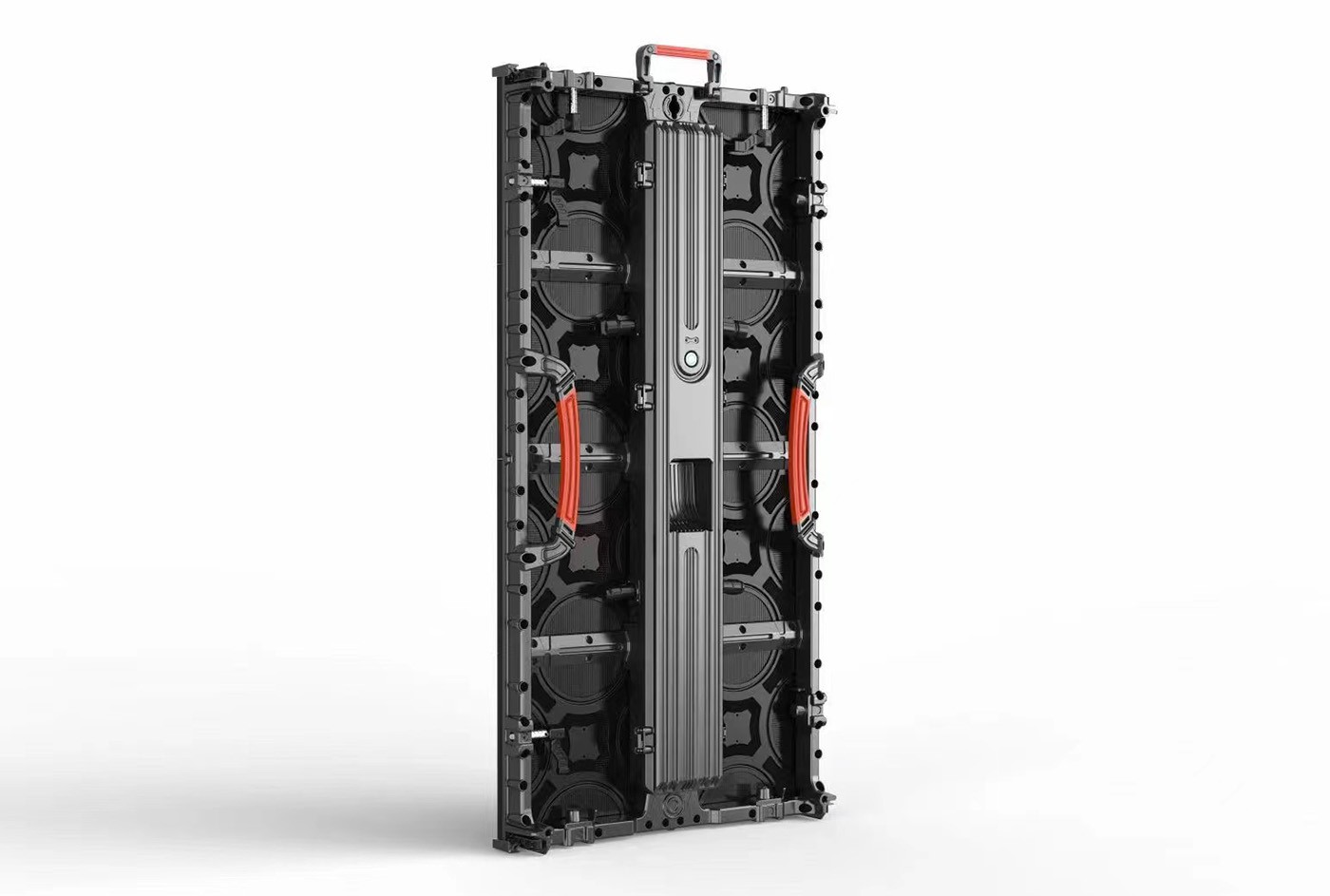

Led panel size 500 x 500mm /500 x 1000mm
Weight 6.4 / 12.5kgs
Power consumption 800W/250W per square meter

Outdoor LED Display

Pixel pitch 3.91mm
Led type SMD1921
Usage Outdoor
Protection class IP65
Brightness 5000nits
Led panel material Die casting aluminum
Led panel size 500 x 500mm /500 x 1000mm
Weight 6.8 / 12.8kgs
Power supply 110/220v-50/60Hz
Power consumption 800W/250W per square meter

Technical Specification

Led lifetime 100000 hours
Viewing angle 140 ° / 140 °. Extended angle that improves viewing of images from the side
Working temperature and humidity -30°C / 55°C 10%~95%
Refresh rate 1920-3840Hz
Pixel density 65536 dot/m2
Control system Novasater/Colorlight/Linsn
Video signal input HDMI, DVI, VGA…
Grayscale 65536
Brightness control Programmable
  • PROGRAMMABLE ON AND OFF
  • FAST AND EASY INSTALLATION
  • SUPPORTED VIDEO AND IMAGE FILES: AVI, WMV, MPG, MOV, VOB, MP4, FLV, Bmp, jpg, png ...
×
