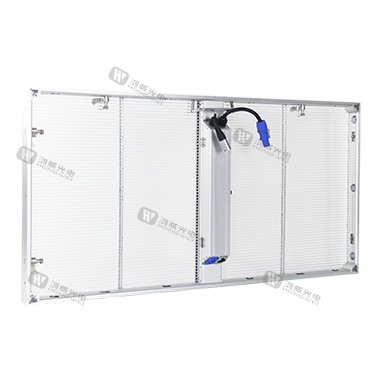

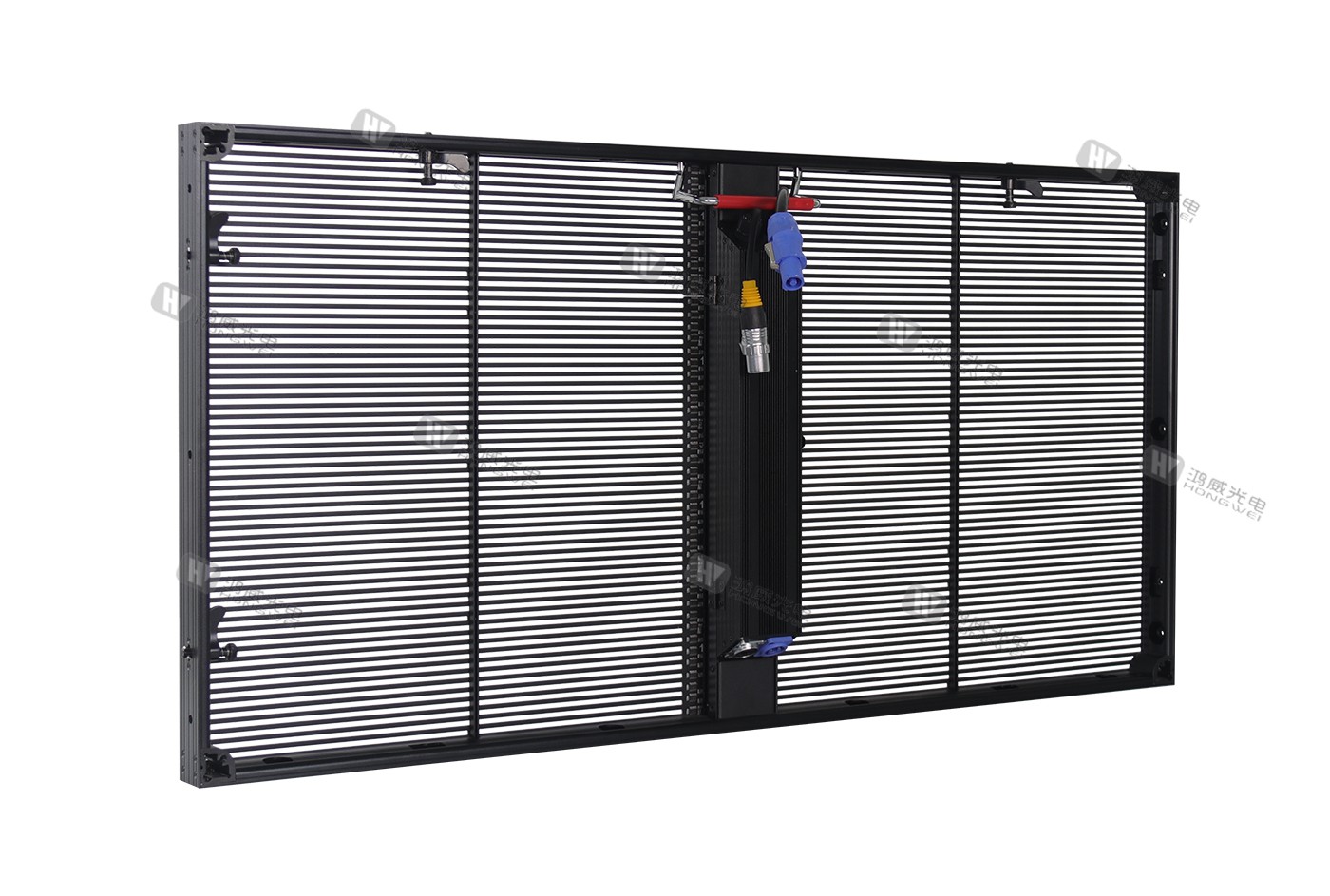

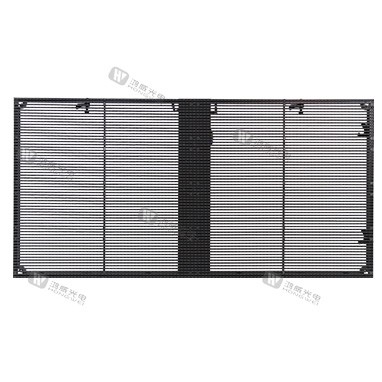

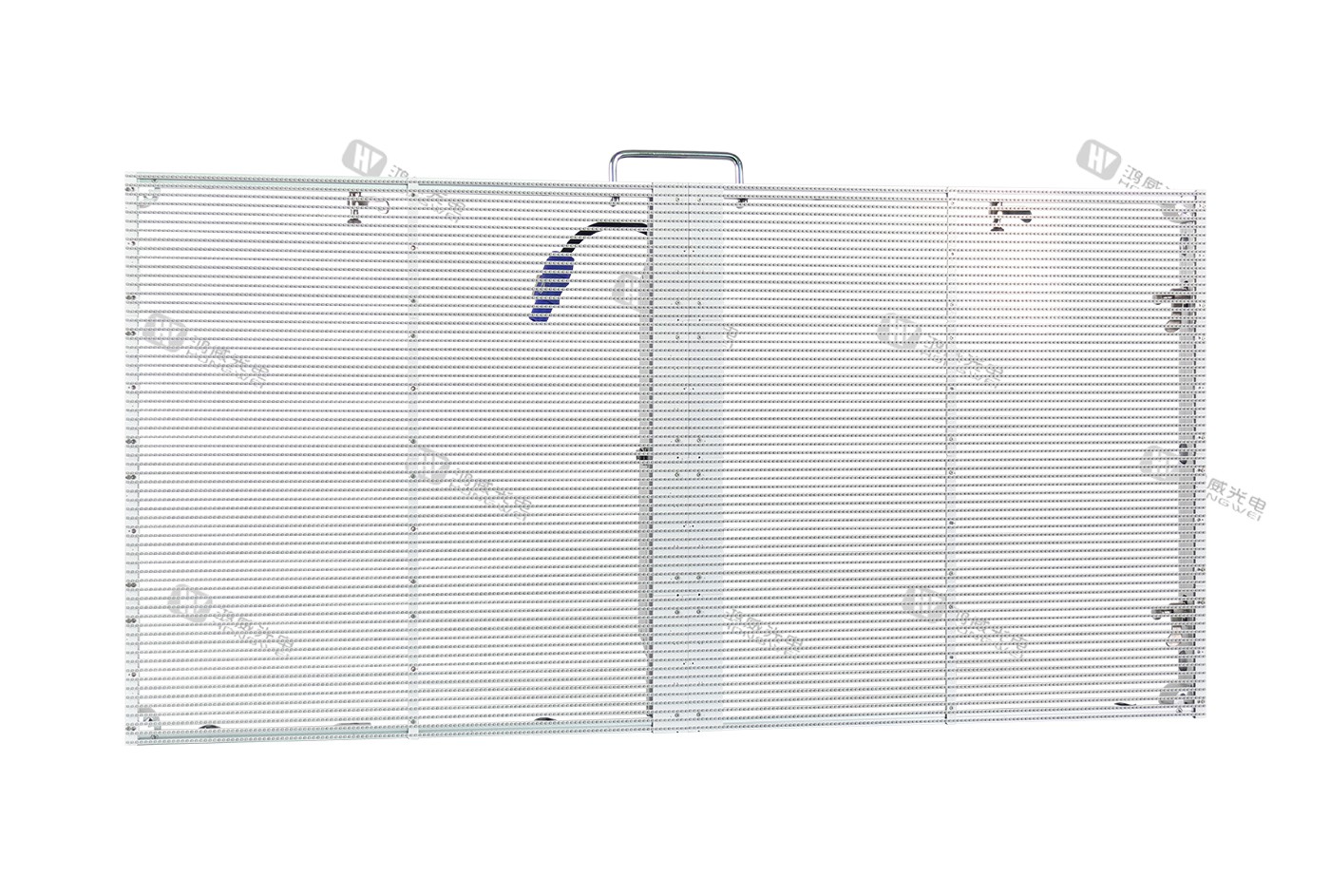

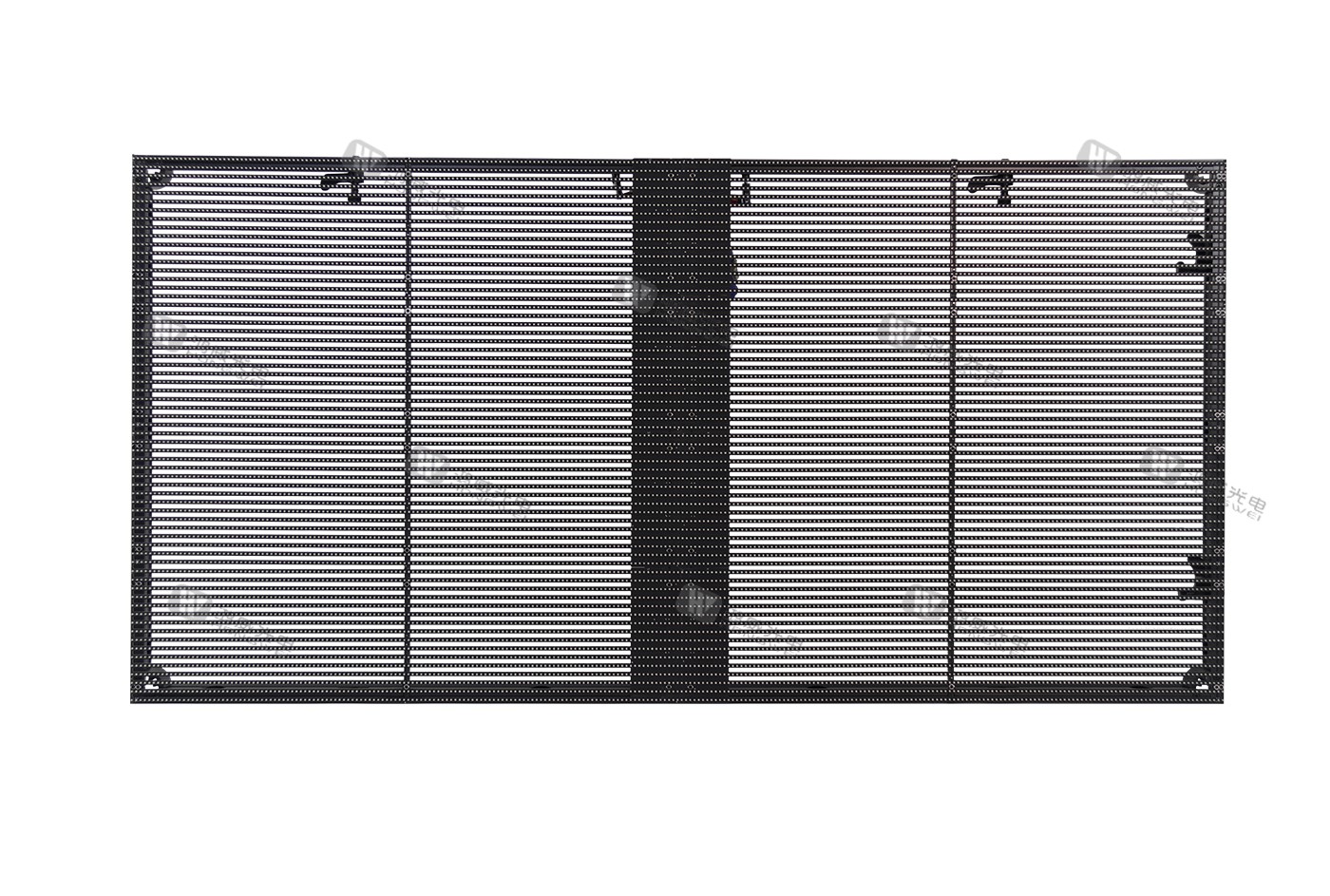

Transparent LED Screen, size at 1000mm by 500mm, combines sleek design and clarity. Ideal for modern spaces, it offers high visibility and aesthetic appeal.
Product Feature
- Energy-Efficient: Like other LED display technologies, transparent LED displays are energy-efficient, consuming less power compared to traditional display technologies. Max power consumpiton is 600w per square meter
- Lightweight and slim thickness: 10kgs/sqm and 6.5cm thickness
- See-Through Effect: 68% transparency. The see-through effect of transparent LED displays is particularly suitable for installations where maintaining visibility of objects or architectural elements behind the screen is desirable. For example, they are commonly used on storefronts, shopping mall displays, and museum exhibits to showcase products or information while still allowing people to see into the store or space.
- Perfect seamless stitching and fast installation
- High Brightness and Visibility: Transparent LED displays are designed to maintain high brightness levels while also offering transparency. They use high-brightness LED chips to ensure that the displayed content remains visible even in well-lit environments. The brightness can get to 5500nits/sqm at highest, have good visual effect under direct sunshine
More details
Customized Size
Cabinet size can be customized according to glass size, match with the building glass perfectly.
Energy Saving Style
Avg power consumption is just 180w per square meter, saving energy more than 30% compared with the normal screen.
High Transparency
Based on the special PCB and cabinet design, it can be more than 68% transparency, very suitable for window, show case installation...
High Brightness & Adjustable
Normal series: 2500nits brightness
Pro series: >5000 nits brightness
We can help you to design and customize your own led display, we work with professional engineers who continuously develop new products, constantly solve the pain points of the market and industry of led display.
One stop led video wall solutions: We provide complete led video wall proposal, including led panels, power
supply, control system, hanging beam, flight case, installation frame and other accessories.
Knowing that our products and your needs is the most important thing, suitable proposal can save so many times and cost.
24 hours online pre-sale and after-sales customer service, no time difference

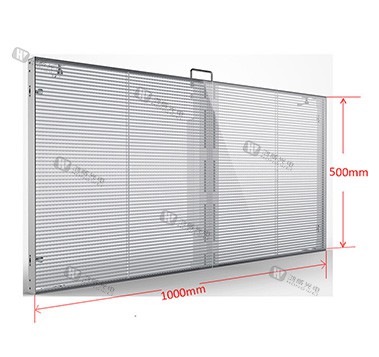

Product Size
Product Specification
Indoor 2.8mm Transparent LED Screen
Pixel pitch | 2.8-5.6mm |
Led type | SMD2121 |
Usage | Indoor |
Protection class | IP30 |
Brightness | 4000nits |
Transparency | 58% |
Led panel material | Die casting aluminum |
Led panel size | 1000x500 mm |
Weight | 5kgs |
Power supply | 110/220v-50/60Hz |
Avg power consumption | 600W/180W per square meters |
Indoor 3.91mm Transparent LED Screen
Pixel pitch | 3.91-7.81mm |
Led type | SMD3012 |
Usage | Indoor |
Protection class | IP30 |
Brightness | 5000nits |
Transparency | 75% |
Led panel material | Die casting aluminum |
Led panel size | 1000x500 mm |
Weight | 5kgs |
Power supply | 110/220v-50/60Hz |
Avg power consumption |
600W/180W per square meters |
Technical Specification
Led lifetime | 100000 hours |
Viewing angle | 140 ° / 140 °. Extended angle that improves viewing of images from the side |
Working temperature and humidity | -30°C / 55°C 10%~95% |
Refresh rate | 3840Hz |
Control system | Novasater/Colorlight/Linsn |
Video signal input | HDMI, DVI, VGA… |
Grayscale | 65536 |
Brightness control | Programmable |
- PROGRAMMABLE ON AND OFF
- FAST AND EASY INSTALLATION
- SUPPORTED VIDEO AND IMAGE FILES: AVI, WMV, MPG, MOV, VOB, MP4, FLV, Bmp, jpg, png ...

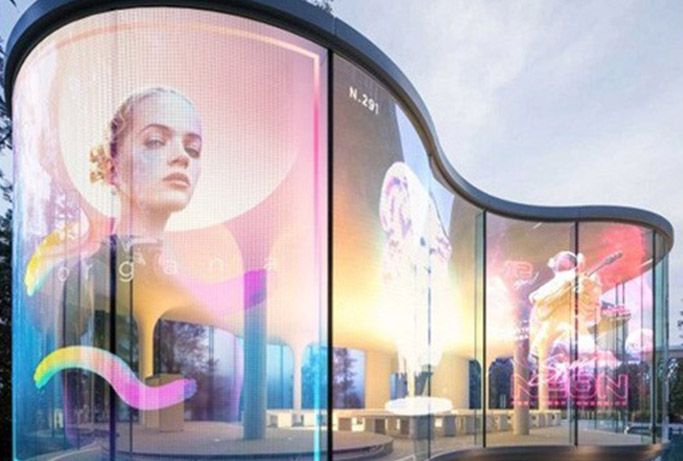

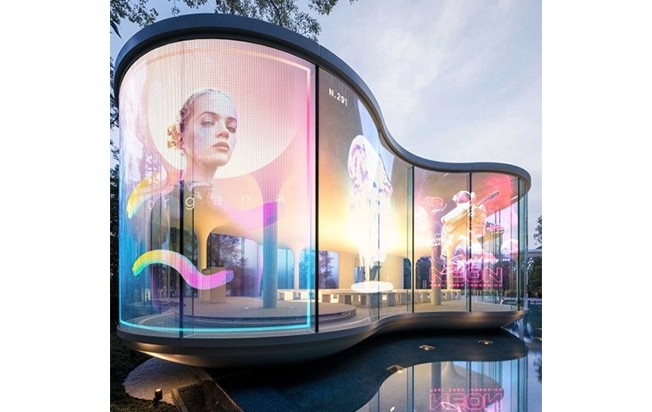

Product Application

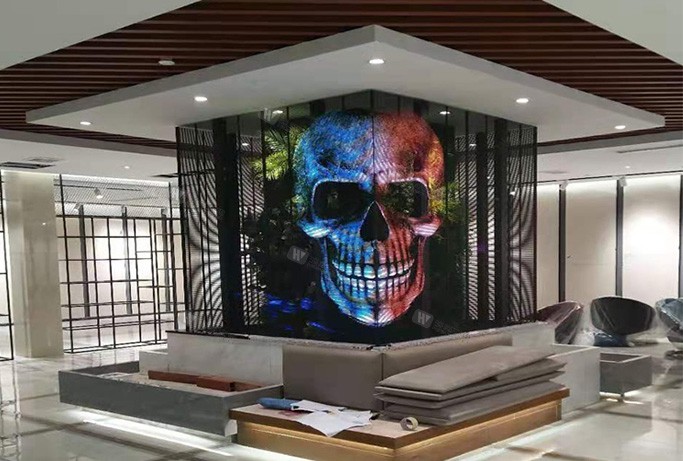

3D Magic Show
Shopping Mall

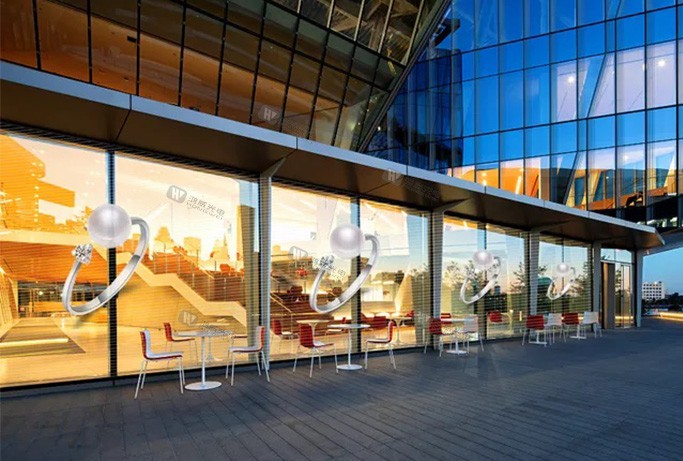

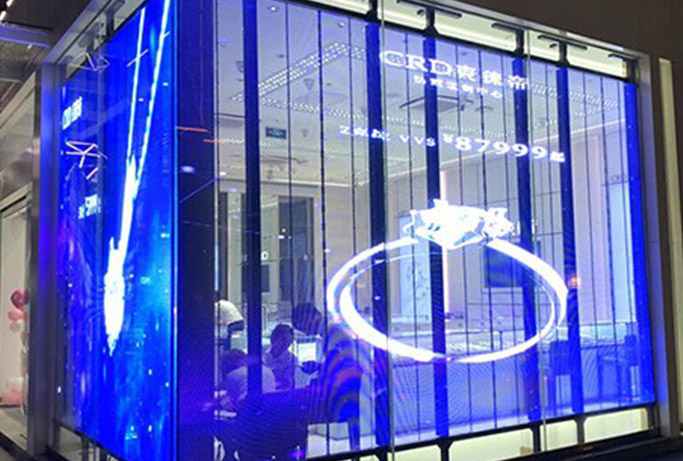

Shop Window
Jewellery Store, 4S Shop, Luxury Store...
