P15.6 P20 Led Mesh Curtain Outdoor Transparent Led Screen

Inquire

Product Feature

  •  Simple structure: Reduce the labor time and cost by 60%
  • Low energy consumption: Max power comsumption is just 400W/sqm

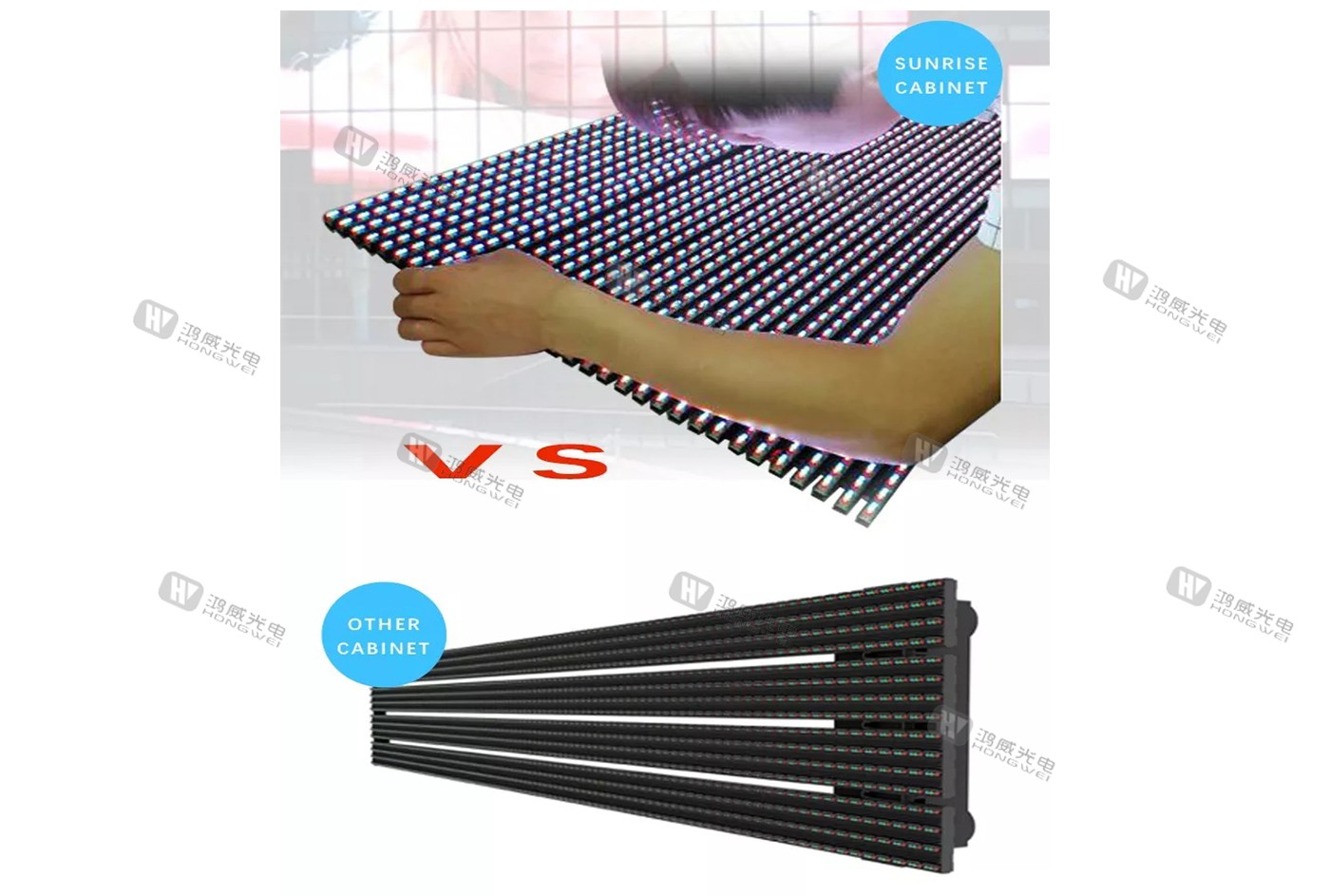

  • Aluminum cabinet with perfect seamless stitching and fast installation
  • 6.5cm ultra slim design
  • Transparency up to 68%, will not hide the view from outside
  • Brightness adjustable, brightness can be 6500-10000nits per your request.

More details

IP65 Waterproof

Glue filling, the surface of the light bar PCB is technically processed to achieve moisture-proof, water-proof and anti-corrosion.



Especially Used For High Temparture Enviroment

-30 to + 50 degrees, be cable to operate both at very cold and hot environment, excellent for Russia and Middle East.



Thin And Light Version

Light: 15kgs/sqm; Thin: 6.5cm thickness



Fanless design, No Noise But With Good Heat Dissipation

Low energy consumption: Max power comsumption is just 400W/sqm

We can help you to design and customize your own led display, we work with professional engineers who continuously develop new products, constantly solve the pain points of the market and industry of led display.

One stop led video wall solutions: We provide complete led video wall proposal, including led panels, power
supply, control system, hanging beam, flight case, installation frame and other accessories.

Knowing that our products and your needs is the most important thing, suitable proposal can save so many times and cost.
24 hours online pre-sale and after-sales customer service, no time difference

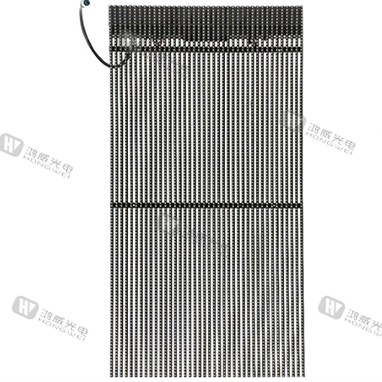

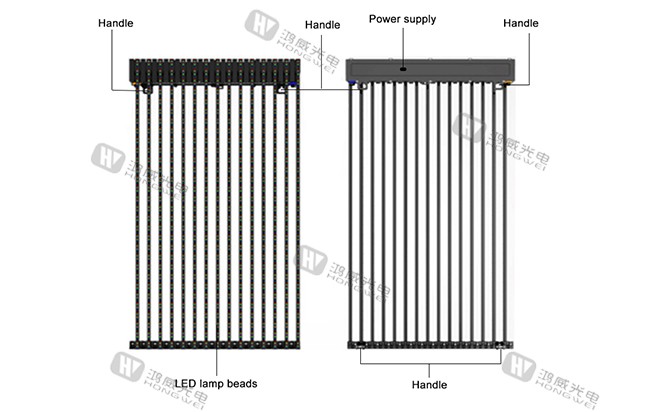

Product Size



Product Specification

15.625-15.625mm Outdoor Transparent Led Screen

Pixel pitch 15.625-15.625mm
Led type DIP346 (1R1G1B)
Usage Outdoor
Best View Distance Over 15 meters
Pixel density 4096dots/sqm
Brightness 6500nits~10000nits, can be customzied per your request
Led panel material Aluminum
Led panel size 500 x 1000mm
Weight 7.5kgs
Power supply 110/220v-50/60Hz
Power consumption 400W/140W per square meters

15.625-31.25mm Outdoor Led Media Facade

Pixel pitch 15.625-31.25mm
Led type DIP346 (1R1G1B)
Usage Outdoor
Best View Distance Over 25 meters
Pixel density 2048dots/sqm
Brightness 6500nits~10000nits, can be customzied per your request
Led panel material Aluminum
Led panel size 500 x 1000mm
Weight 7.5kgs
Power supply 110/220v-50/60Hz
Power consumption 400W/140W per square meters

Technical Specification

Led lifetime 100000 hours
Viewing angle 120 ° / 60 °. Extended angle that improves viewing of images from the side
Working temperature and humidity -30°C / 55°C 10%~95%
Refresh rate 1920-3840Hz
Protection class IP65
Transparency up to 68%
Control system Novasater/Colorlight/Linsn
Video signal input HDMI, DVI, VGA…
Grayscale 14-16bit
Brightness control Programmable
  • PROGRAMMABLE ON AND OFF
  • FAST AND EASY INSTALLATION
  • SUPPORTED VIDEO AND IMAGE FILES: AVI, WMV, MPG, MOV, VOB, MP4, FLV, Bmp, jpg, png ...

Product Application

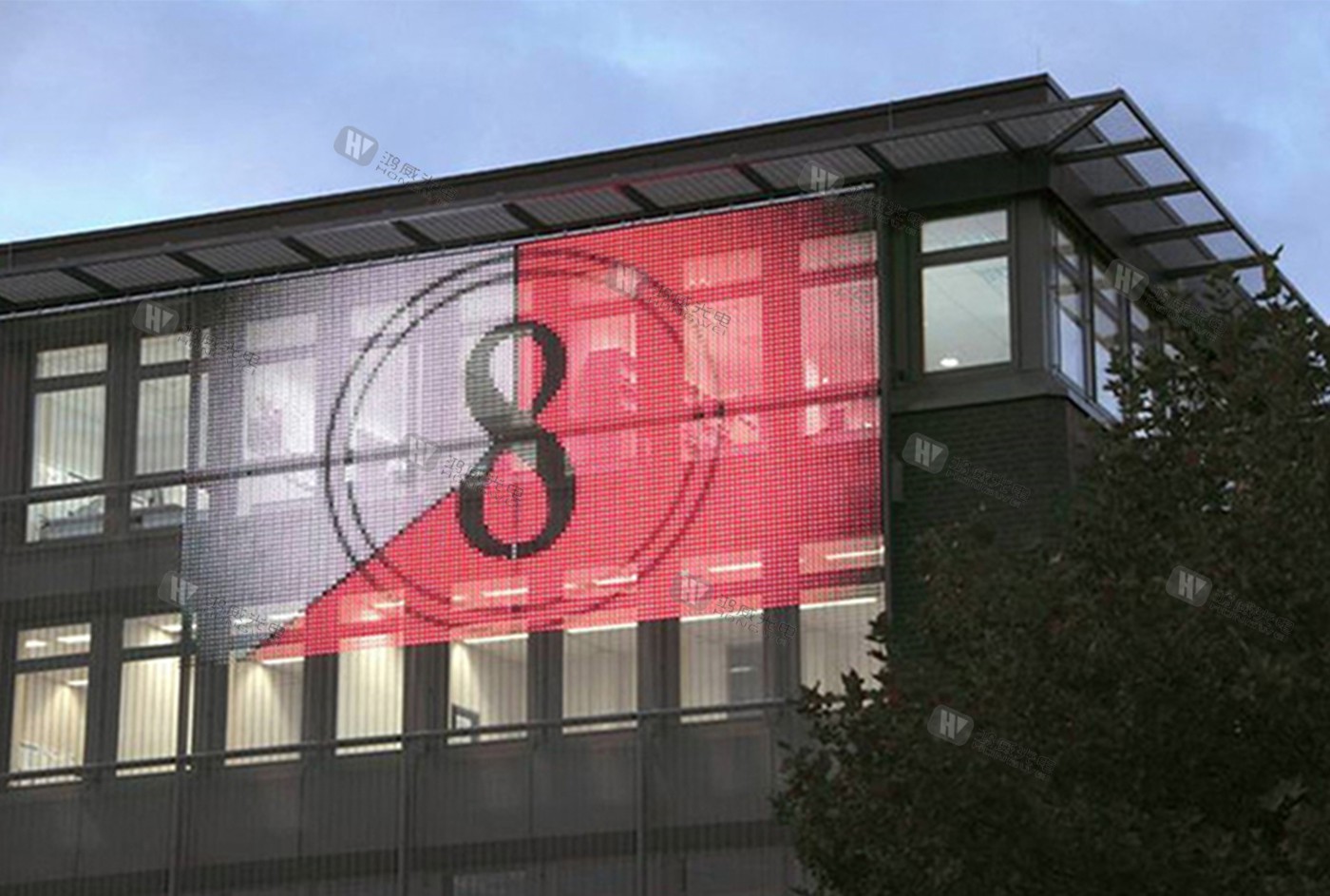

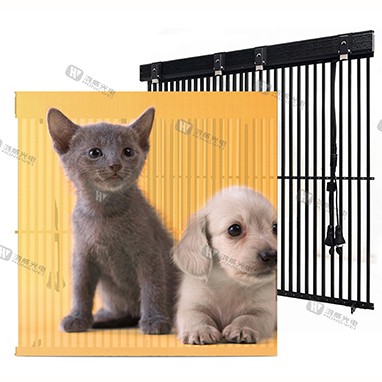

Led Mesh Curtain: Advertising Publish For Retail Store, Shopping Mall...

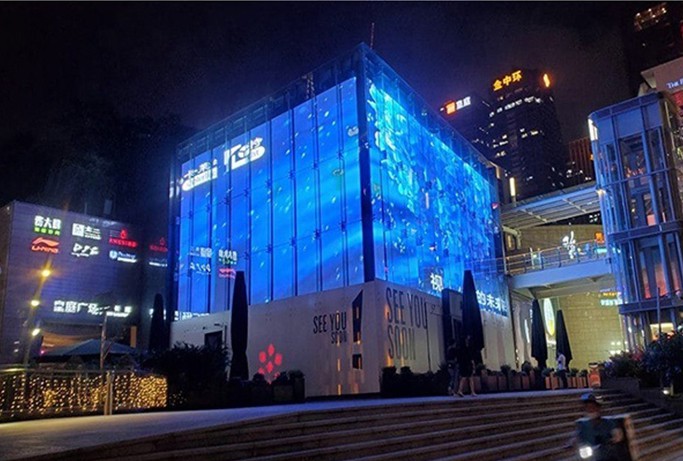

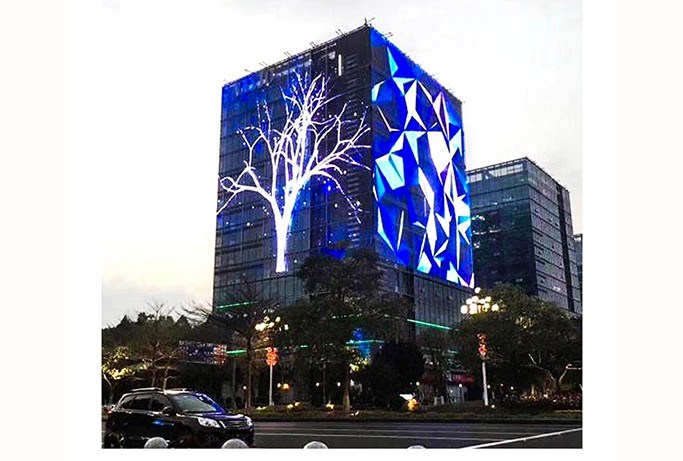

Led Media Facade For Large Building Glass Wall

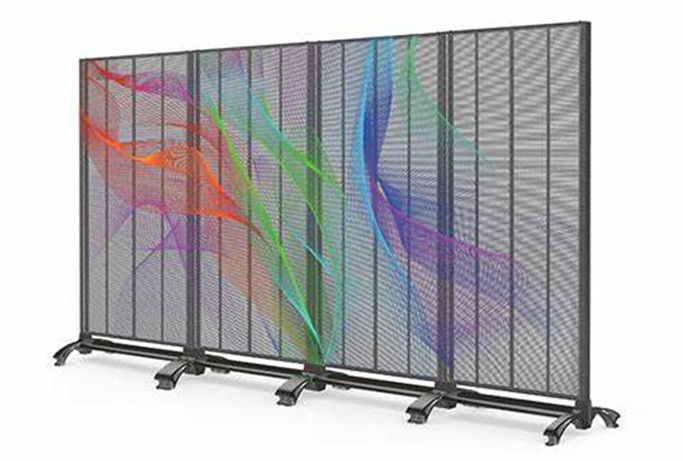

Transparent Led Posters: With Ground support and easy for moving

Retail Windows, Showcase, Media Architecture


×
