Indoor Dance Floor Tile LED Display Screen P2.604 P2.976 P3.91 P4.81

Dance floor LED display screen, also known as dance floor led screen, led floor tile screen, combines high-resolution LED displays with robust durability to create a stage like no other. But it only play regular advertising pictures and video text, etc, if need interactive affects you must add peripherals(radar) to achieve interactive effects.

Inquire

Product Feature

1, High-strength iron box series, minimalist and fast installation:

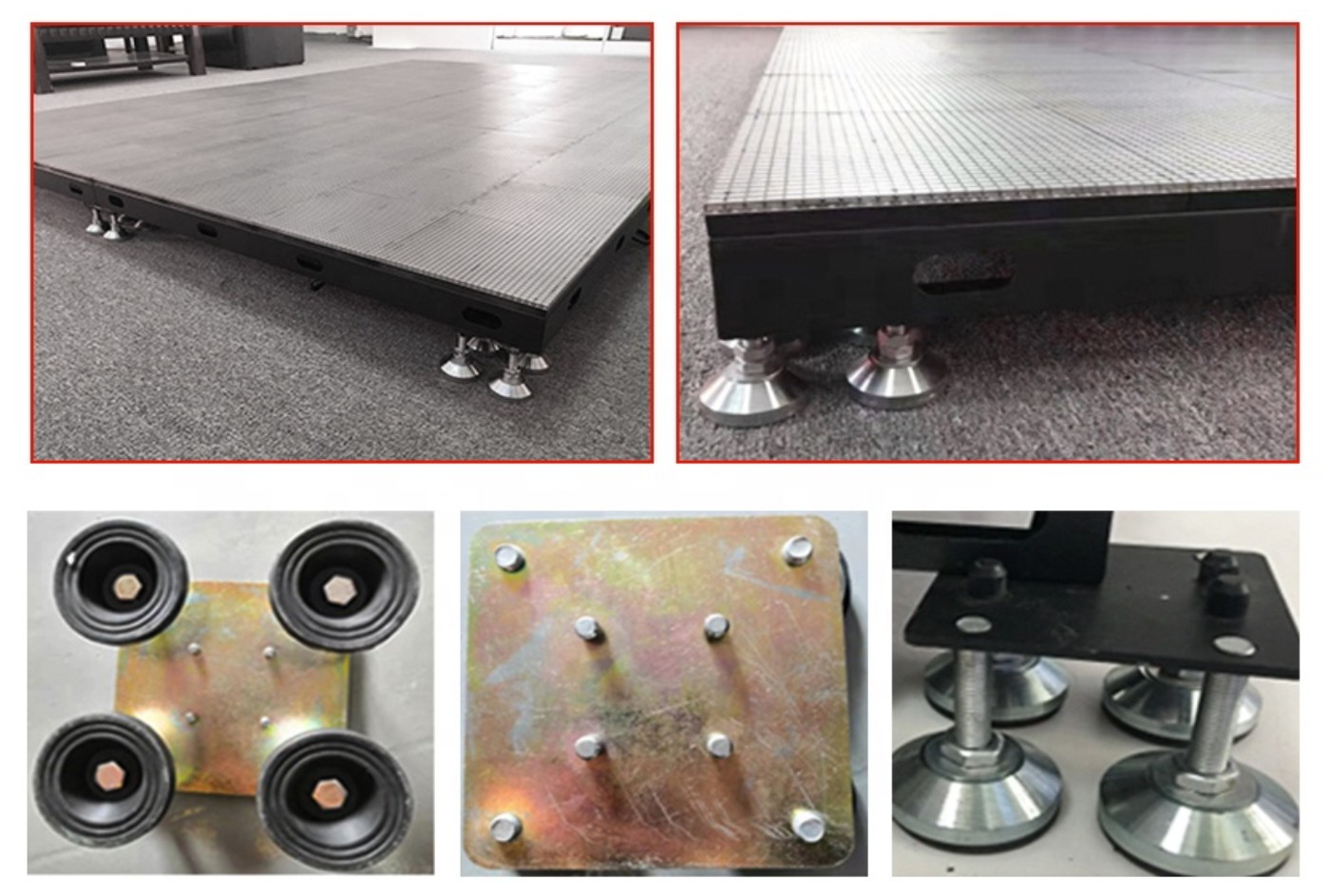

Foot cup mounting solution is easy to install and has a load capacity of 2 tons, the design height is adjustable from 13-15cm. Use immersion three-proofing paint to prevent moisture and oxidation. User-friendly design facilitates quick installation and disassembly, making it a favorite among event planners. Low maintenance requirements ensure hassle-free operation for repeated use.


2, Brilliant Visuals:
With high brightness levels and superior pixel density, the display ensures vivid and crisp images even under bright indoor lighting conditions, captivating audiences from every angle. Patented technology mask, higher picture contrast, clear playback effect.


3, 7 ultra-wide viewing angle: 140 °, full viewing angle, very visual experience.


4, Use of high-quality raw materials and accessories:
Aviation plug power: International pure copper wire rod, pin butt joint design, waterproof and anti-falling.
Aviation plug signal: CAT6 cable, pin butt joint design, waterproof and anti-falling.
Ground support: Foot cup thread mouth design, adjustable height within 130-150mm, slotting design and more convenient installation.


5, Iron box material:Double-layer plate reinforcement, penetrating reinforcement, stronger load-bearing, up to 2 tons. Cabinet size can be 500x1000mm, 500x500mm



More details

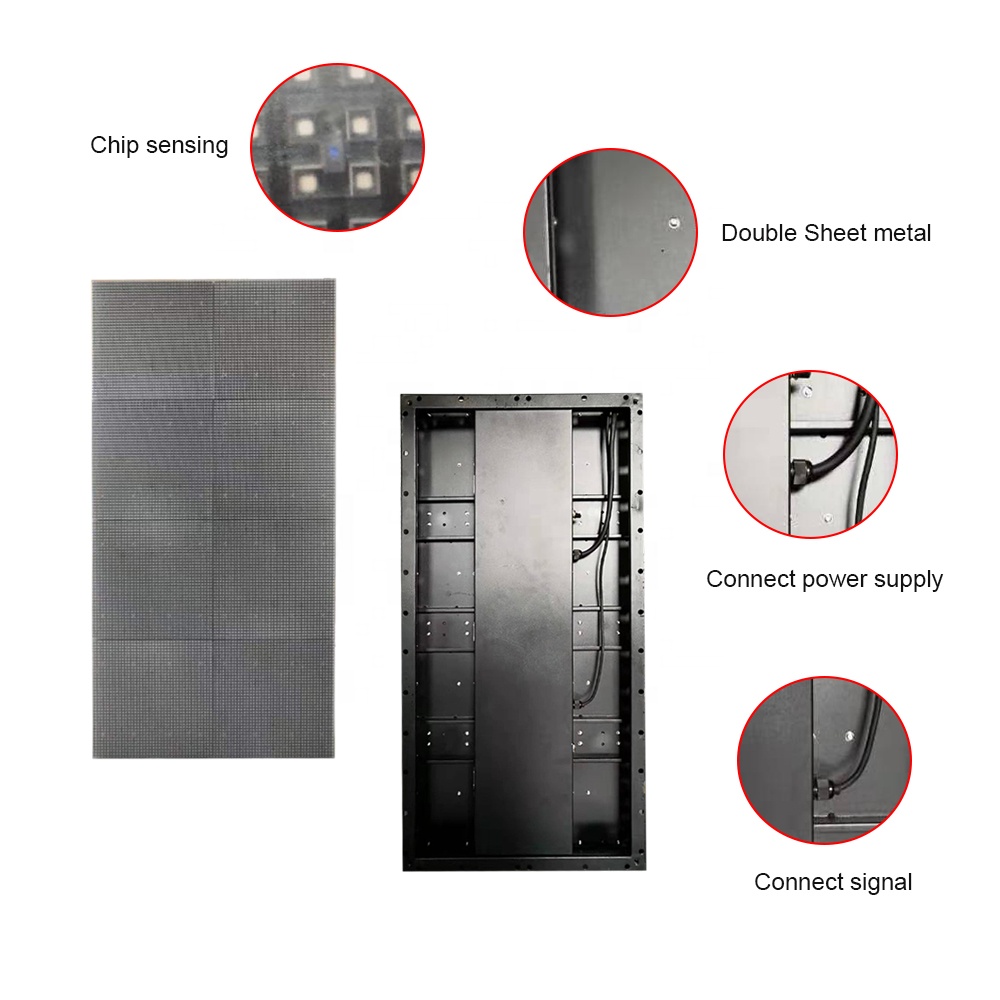

Chip sensing



Connect power supply



Connect signal




Normal Led dance floor screen



Double Sheet metal



Load capacity is strong





We can help you to design and customize your own led display, we work with professional engineers who continuously develop new products, constantly solve the pain points of the market and industry of led display.

One stop led video wall solutions: We provide complete led video wall proposal, including led panels, power
supply, control system, hanging beam, flight case, installation frame and other accessories.

Knowing that our products and your needs is the most important thing, suitable proposal can save so many times and cost.
24 hours online pre-sale and after-sales customer service, no time difference

Product Size

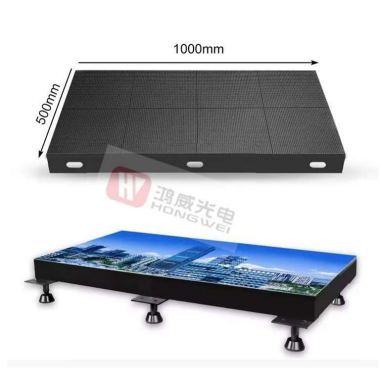

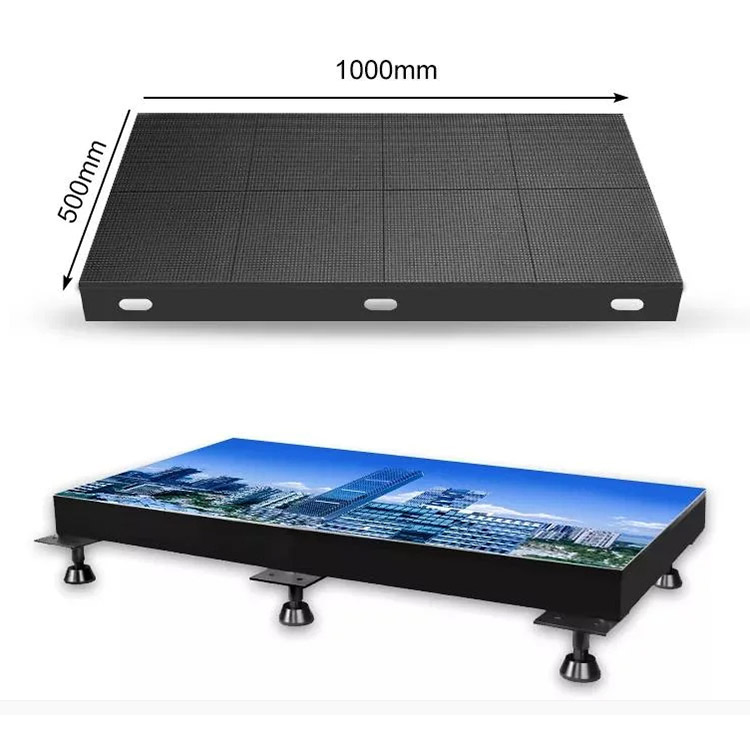

Led dance floor screen size



Product Specification

P2.604 dance floor led display-iron

Pixel pitch 2.604mm
Led type SMD1415
Usage Indoor
Protection class IP33
Brightness 2500nits
Led panel material Iron cabinet
Led panel size 500 x 1000mm
Refresh rate 3840Hz
Pixel density 147456 dot/m2
Weight 25 kgs
Power supply 110/220v-50/60Hz
Avg power consumption 250w per square meters
p5 outdoor 3d led display

P2.976 dance floor led display-iron

Pixel pitch 2.976mm
Led type SMD1415
Usage Indoor
Protection class IP33
Brightness 2500nits
Led panel material Iron cabinet
Led panel size 500x1000mm
Refresh rate 3840Hz
Pixel density 112896 dot/m2
Weight 25kgs
Power supply 110/220v-50/60Hz
Avg power consumption 250w per square meters

P3.91 dance floor led display-iron

Pixel pitch 3.91mm
Led type SMD1921
Usage Indoor
Protection class IP33
Brightness 2500nits
Led panel material Iron cabinet
Led panel size 500 x 1000mm
Refresh rate 3840Hz
Pixel density 65536 dot/m2
Weight 25 kgs
Power supply 110/220v-50/60Hz
Avg power consumption 250w per square meters

Technical Specification

Led lifetime 100000 hours
Viewing angle 140 ° / 140 °. Extended angle that improves viewing of images from the side
Working temperature and humidity -30°C / 55°C 10%~95%
Control system Novasater/Colorlight/Linsn
Video signal input HDMI, DVI, VGA…
Grayscale 14-16 bit
Brightness control Programmable
  • PROGRAMMABLE ON AND OFF
  • CAN ADD INTERACTIVE FUNCTION
  • SUPPORTED VIDEO AND IMAGE FILES: AVI, WMV, MPG, MOV, VOB, MP4, FLV, Bmp, jpg, png ...

Product Application

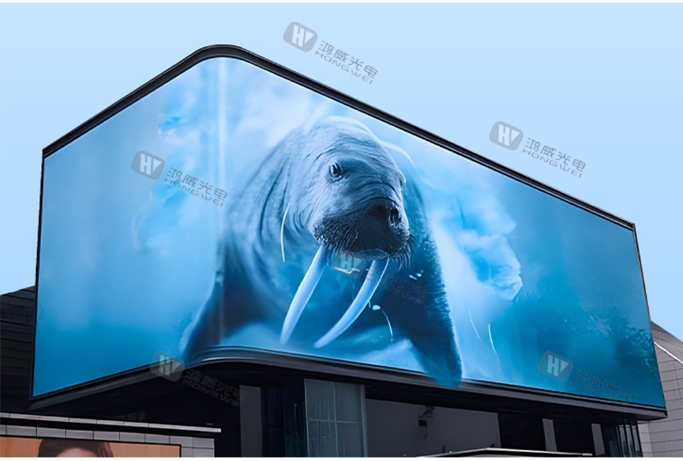

outdoor naked-eye 3D curves creative LED display

3D curves creative LED display

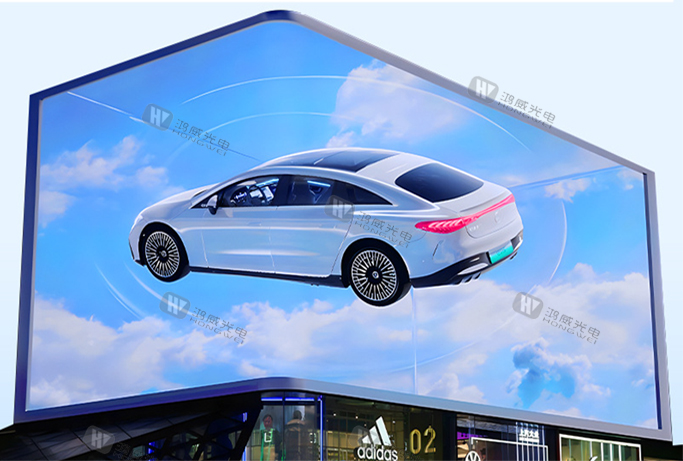

outdoor naked-eye 3D creative LED display

Outdoor naked-eye 3D creative LED display

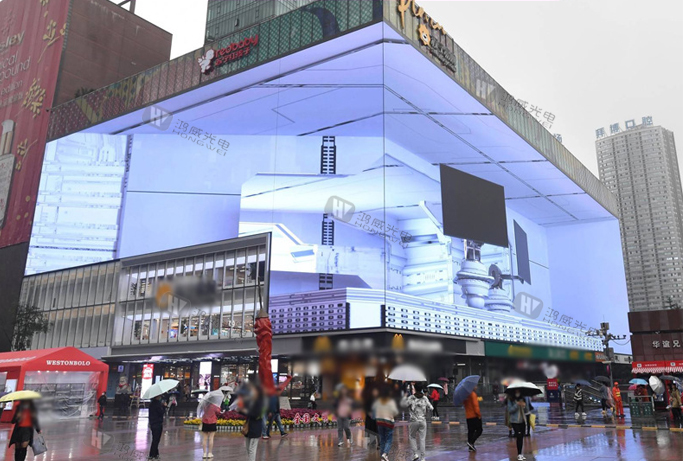

3D right angles or curves creative LED display

Outdoor 3D right angles creative LED display

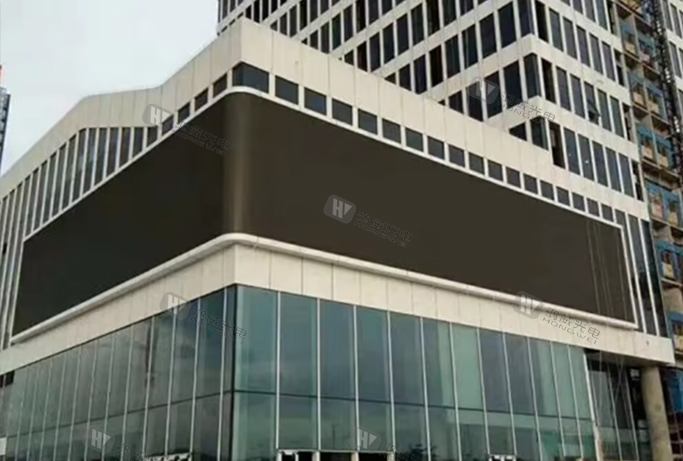

3D right angles creative LED display
