Product Feature
1. Integrated Sensor Chip for Enhanced Interactivity
Strategically embedded sensor chips at the forefront of each light panel, with eight chips per module and a remarkable 128 sensors per square meter. Boasting rapid sensing speeds, high precision, and a full 360-degree coverage without blind spots, our system eliminates the need for additional peripheral interactive devices.
2. Robust Load-Bearing Capacity
Iron Box Structure: Engineered with robust iron box materials, capable of sustaining up to 2 tons of weight.
3.Versatile Thickness Adjustment
The screen's native thickness measures 8cm, further adaptable post-installation to a range of 13-15cm, ensuring seamless integration into various settings (adjustments can be tailored to suit).
4.Dynamic Broadcasting Experience
Empowered by computer-synchronized point-to-point playback technology, enabling effortless switching between images and videos. High-refresh-rate ultra-HD visuals present colors in crisp clarity and natural tones, devoid of eye strain, thereby delivering an exceptional viewing experience.
More details
We can help you to design and customize your own led display, we work with professional engineers who continuously develop new products, constantly solve the pain points of the market and industry of led display.
One stop led video wall solutions: We provide complete led video wall proposal, including led panels, power
supply, control system, hanging beam, flight case, installation frame and other accessories.
Knowing that our products and your needs is the most important thing, suitable proposal can save so many times and cost.
24 hours online pre-sale and after-sales customer service, no time difference
Product Size
Product Specification
P2.604 dance floor led display-iron
| Pixel pitch | 2.604mm |
| Led type | SMD1415 |
| Usage | Indoor |
| Protection class | IP33 |
| Brightness | 2500nits |
| Led panel material | Iron cabinet |
| Led panel size | 500 x 1000mm |
| Refresh rate | 3840Hz |
| Pixel density | 147456 dot/m2 |
| Weight | 25 kgs |
| Power supply | 110/220v-50/60Hz |
| Avg power consumption | 250w per square meters |
P2.976 dance floor led display-iron
| Pixel pitch | 2.976mm |
| Led type | SMD1415 |
| Usage | Indoor |
| Protection class | IP33 |
| Brightness | 2500nits |
| Led panel material | Iron cabinet |
| Led panel size | 500x1000mm |
| Refresh rate | 3840Hz |
| Pixel density | 112896 dot/m2 |
| Weight | 25kgs |
| Power supply | 110/220v-50/60Hz |
| Avg power consumption | 250w per square meters |
P3.91 dance floor led display-iron
| Pixel pitch | 3.91mm |
| Led type | SMD1921 |
| Usage | Indoor |
| Protection class | IP33 |
| Brightness | 2500nits |
| Led panel material | Iron cabinet |
| Led panel size | 500 x 1000mm |
| Refresh rate | 3840Hz |
| Pixel density | 65536 dot/m2 |
| Weight | 25 kgs |
| Power supply | 110/220v-50/60Hz |
| Avg power consumption | 250w per square meters |
Technical Specification
| Led lifetime | 100000 hours |
| Viewing angle | 140 ° / 140 °. Extended angle that improves viewing of images from the side |
| Working temperature and humidity | -30°C / 55°C 10%～95% |
| Control system | Novasater/Colorlight/Linsn |
| Video signal input | HDMI, DVI, VGA… |
| Grayscale | 14-16 bit |
| Brightness control | Programmable |
- PROGRAMMABLE ON AND OFF
- CAN ADD INTERACTIVE FUNCTION
- SUPPORTED VIDEO AND IMAGE FILES: AVI, WMV, MPG, MOV, VOB, MP4, FLV, Bmp, jpg, png ...
Product Application

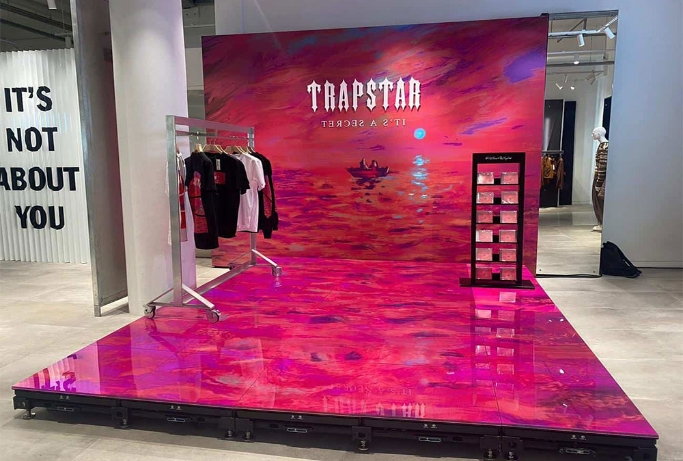

Dance floor led for retail store

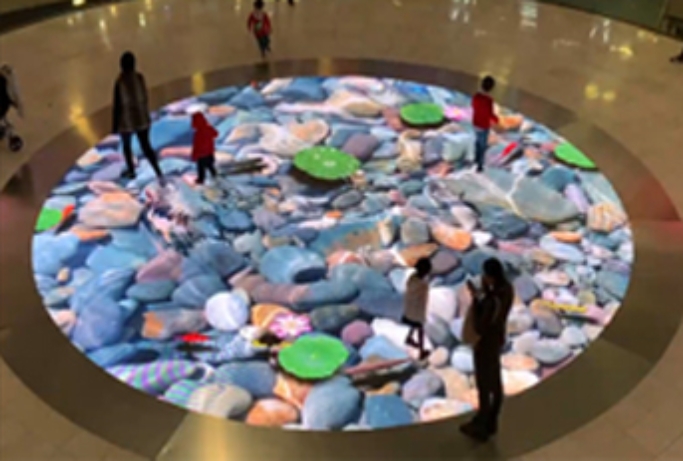

Shopping Mall LED Floor Tile Screen

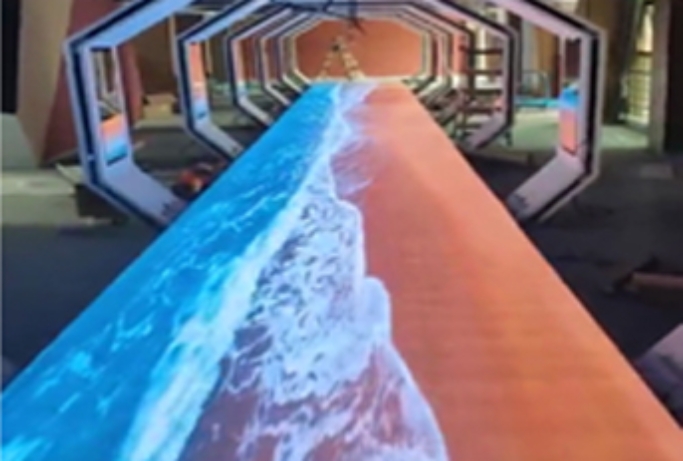

Dance floor LED display for stage performances

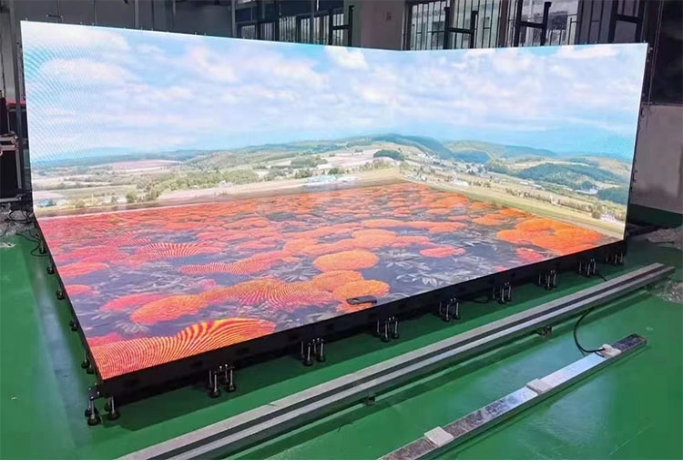

Immersive led dance floor display
