Low Power Consumption Outdoor Naked-eye 3D Advertising LED Display

Inquire

Product Feature

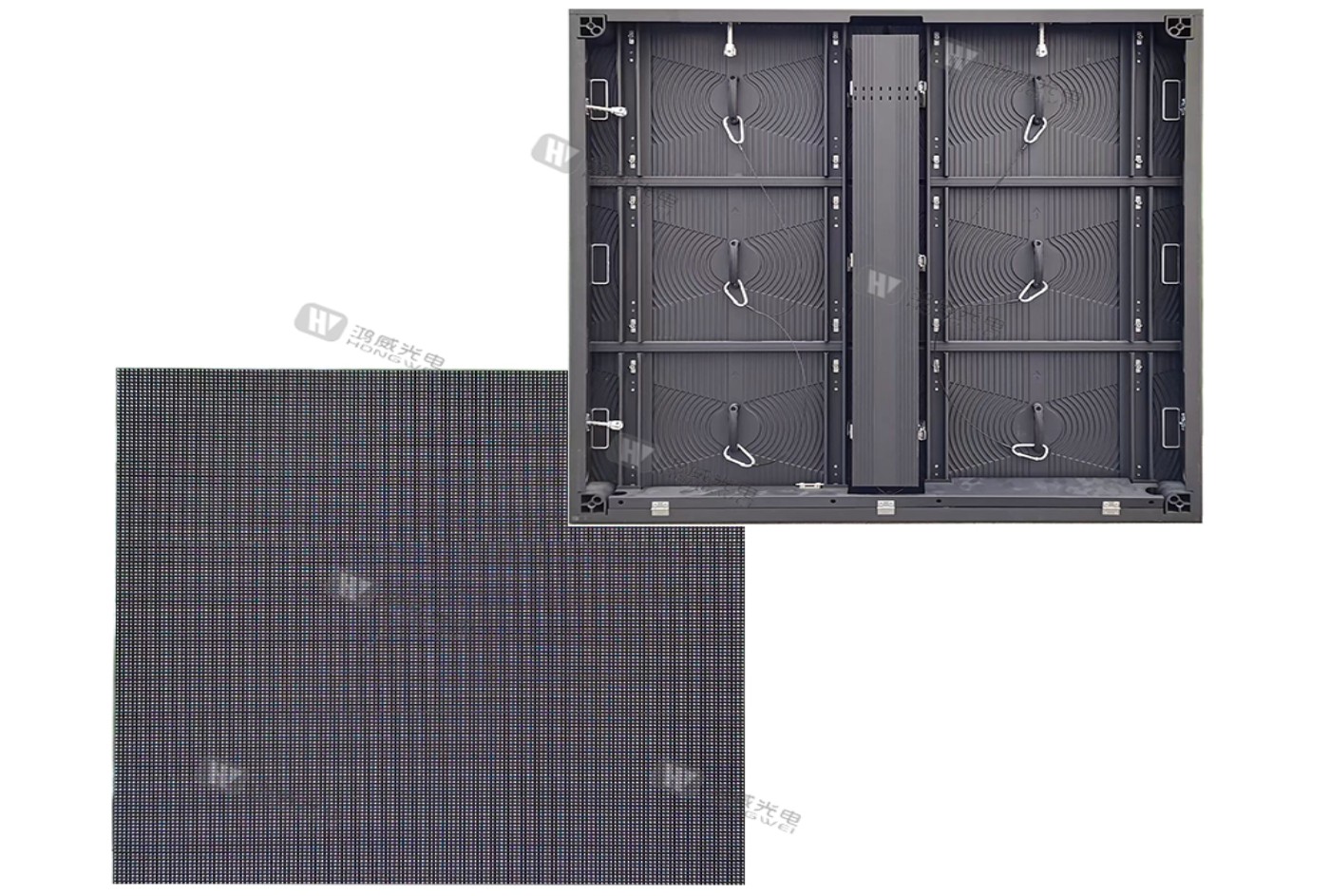

1. High-quality aluminum alloy cabinet and LED module housing:
Our products use high-quality aluminum alloy materials to create a sturdy and durable cabinet structure. Its unique aluminum alloy profile design not only makes the entire cabinet lightweight (960x960mm size only weighs 26kgs), but also has excellent stability and pressure resistance, allowing it to maintain its shape even in complex and changeable environments. In addition, the LED module housing is also made of aluminum alloy, which has excellent fire retardant properties and is not easily deformed even in high temperature environments, ensuring long-term use, safety and reliability of the product.


2. Customized design:
We understand that each customer's needs are unique, so we provide customized 90-degree screen or curved screen design services. Whether you are creating a stunning 3D effect LED display or meeting the display needs of a specific scene, we can tailor it for you. It is particularly worth mentioning that the corners of our products are smoother, ensuring excellent visual effects and making your display more outstanding.


3. Energy-saving technology:
Our products adopt advanced energy-saving technology. By separating the three colored lamp beads of R, G and B, they can be powered independently, thereby effectively reducing energy consumption. At the same time, the product is also equipped with a high heat dissipation aluminum alloy bottom shell to ensure that heat generation is minimized while maintaining high brightness and high contrast. After careful design and optimization, our products have a maximum energy saving rate of up to 75%, making your use more economical and environmentally friendly.


4. Convenient front and rear maintenance:
We understand that ease of maintenance is crucial to our customers. Therefore, our products adopt an interchangeable module design, which is extremely convenient for both front and rear maintenance. At the same time, the module has extremely high compatibility and can be installed at any location without worrying about adaptation issues. This design not only improves maintenance efficiency, but also reduces maintenance costs, making your use easier and more worry-free.


5. Easy to install:
To simplify the installation process, we have specially designed easy-to-operate I-beam connectors. Instead of using a complicated and bulky frame, the screen can be easily installed by simply attaching the connector to the wall. This design not only simplifies the installation steps, but also reduces the difficulty of installation, allowing you to easily enjoy a high-quality LED display experience.





More details

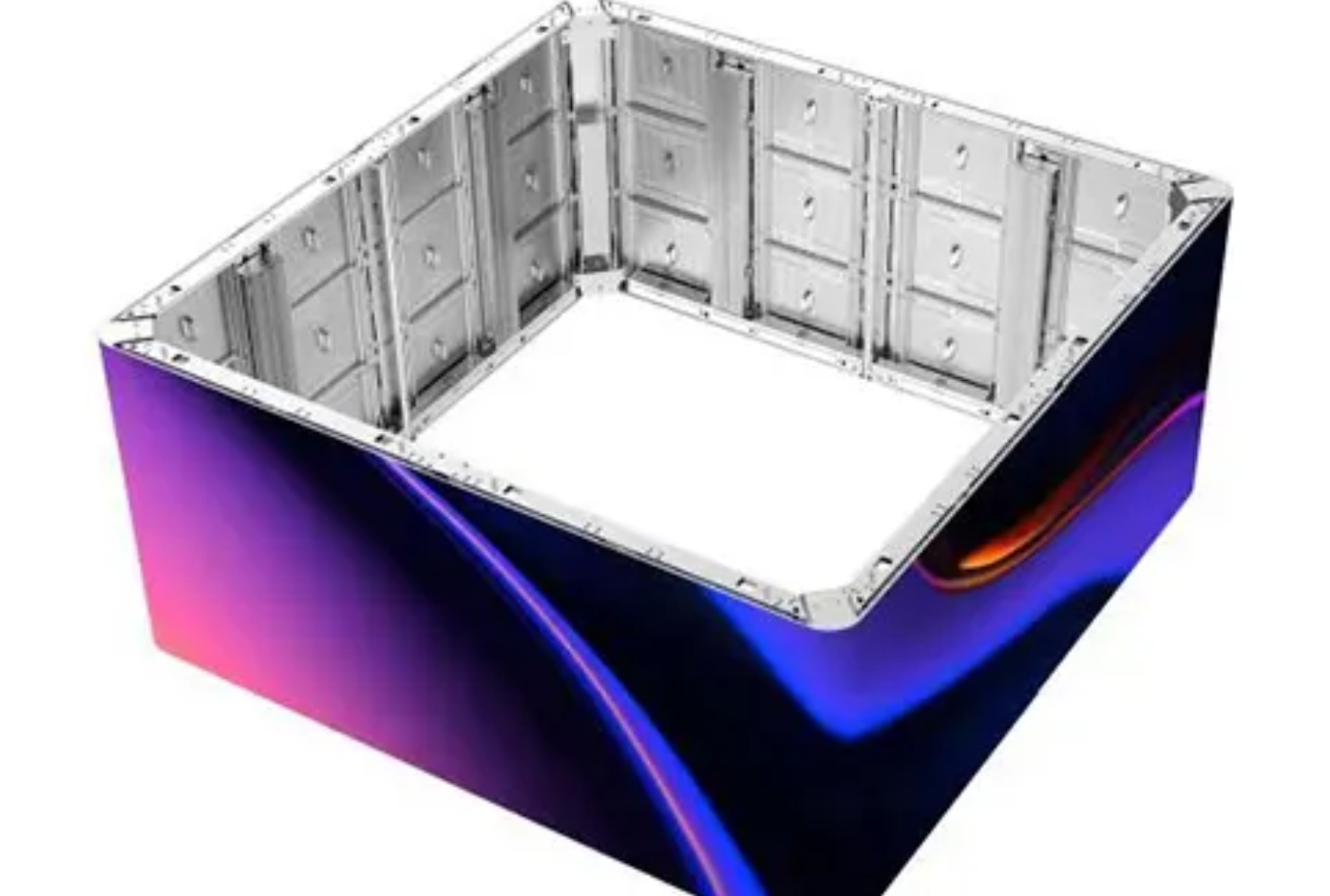

Customized Design:

Support customized 90°;screen or Curved screen

Energy saving 75%:

The common cathode aluminum screen adopts the scheme of separating the lamp beads of R, G, and B colors, and gives them separately Power supply, effectively reducing power consumption, low heat generation, and high heat dissipation aluminum bottom shell Naturally low heat, the maximum energy saving is limited to 75%, while ensuring high brightness and high contrast.

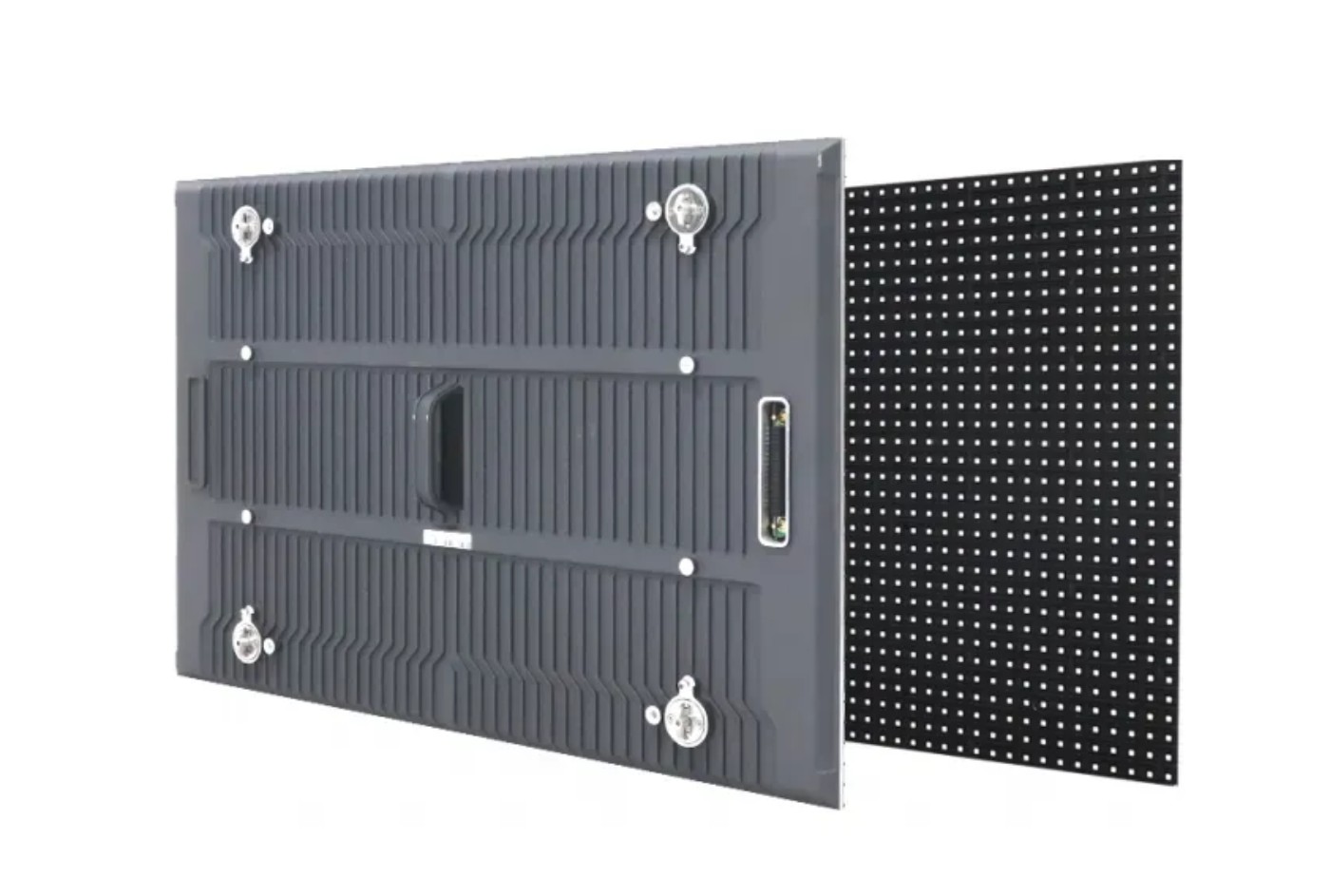

Support Service:

We offer two distinct service models: Total Rear Service (TRS) and Total Front Service (TFS).
TRS caters to installations with rear access, providing swift back-end troubleshooting, hardware fixes, & module replacements. TFS suits scenarios with restricted rear access, enabling front-facing maintenance through innovative designs like magnetic modules & quick-release frames.

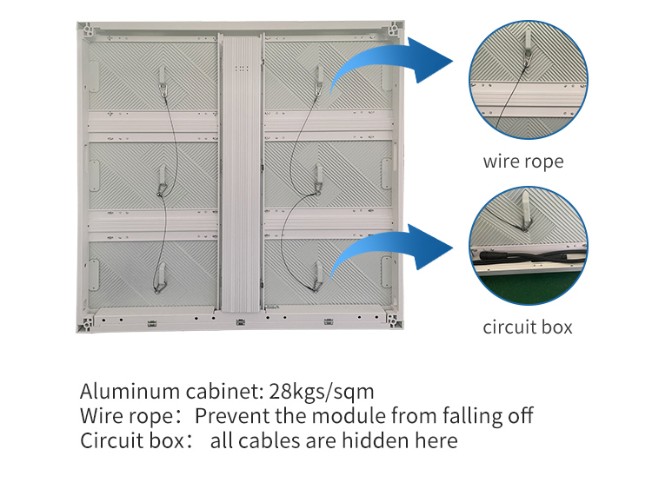

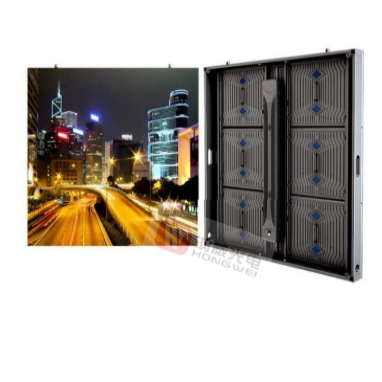

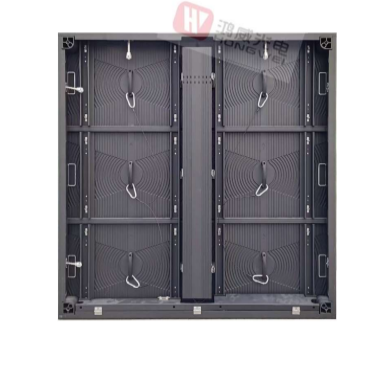

Aluminum Chasis:

Aluminum chassis is more sturdy and durable in LED display applications, with good heat dissipation performance and aesthetics.

We can help you to design and customize your own led display, we work with professional engineers who continuously develop new products, constantly solve the pain points of the market and industry of led display.

One stop led video wall solutions: We provide complete led video wall proposal, including led panels, power
supply, control system, hanging beam, flight case, installation frame and other accessories.

Knowing that our products and your needs is the most important thing, suitable proposal can save so many times and cost.
24 hours online pre-sale and after-sales customer service, no time difference

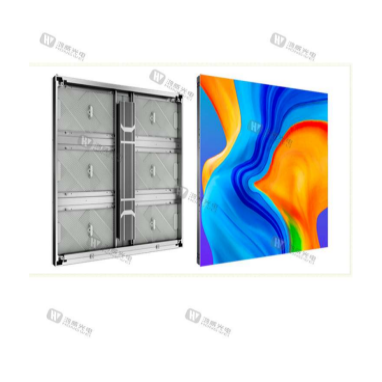

Product Size

Product size:  960×960mm.

Product Specification

P6.67 outdoor LED display

Pixel pitch 6.67mm
Led type SMD2727
Usage Outdoor
Protection class IP67
Brightness 6500-10000nits
Led panel material Aluminum cabinet
Led panel size 960 x 960mm
Scan 1/7S
Pixel density 22500 dot/m2
Weight 26 kgs
Power supply 110/220v-50/60Hz
Max/Avg power consumption 180w/m2

P8 outdoor LED Display

Pixel pitch 8mm
Led type SMD2727
Usage outdoor
Protection class IP67
Brightness 6500-10000nits
Led panel material Aluminum cabinet
Led panel size 960x960mm
Weight 26kgs
Power supply 110/220v-50/60Hz
Avg power consumption 180w per square meters

P10 Outdoor LED Display

Pixel pitch 10mm
Led type SMD2727
Usage Outdoor
Protection class IP67
Brightness 6500-10000nits
Led panel material Aluminum cabinet
Led panel size 960 x 960mm
Pixel density 10000 dot/m2
Weight 26 kgs
Power supply 110/220v-50/60Hz
Max/Avg power consumption 180w/m2

Technical Specification

Led lifetime 100000 hours
Viewing angle 140 ° / 140 °. Extended angle that improves viewing of images from the side
Working temperature and humidity -30°C / 50°C 10%~95%
Refresh rate 3840Hz
Control system Novasater/Colorlight/Linsn
Video signal input HDMI, DVI, VGA…
Grayscale 14-16 bit
Brightness control Programmable
  • PROGRAMMABLE ON AND OFF
  • FAST AND EASY INSTALLATION
  • SUPPORTED VIDEO AND IMAGE FILES: AVI, WMV, MPG, MOV, VOB, MP4, FLV, Bmp, jpg, png ...

Product Application

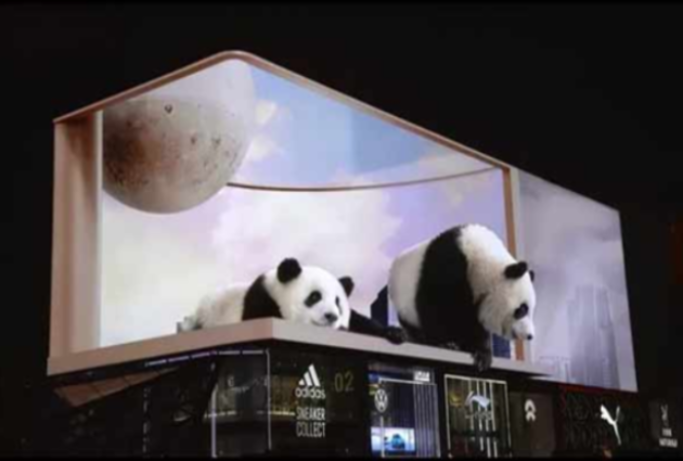

3D Outdoor Led Display For Advertising

3D Outdoor Led Display For Advertising

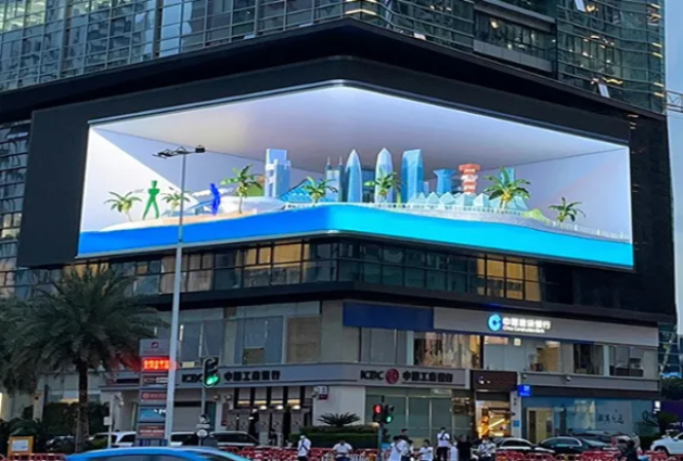

Street Advertising Outdoor Led Screen Billboard

Street Advertising Outdoor Led Screen Billboard

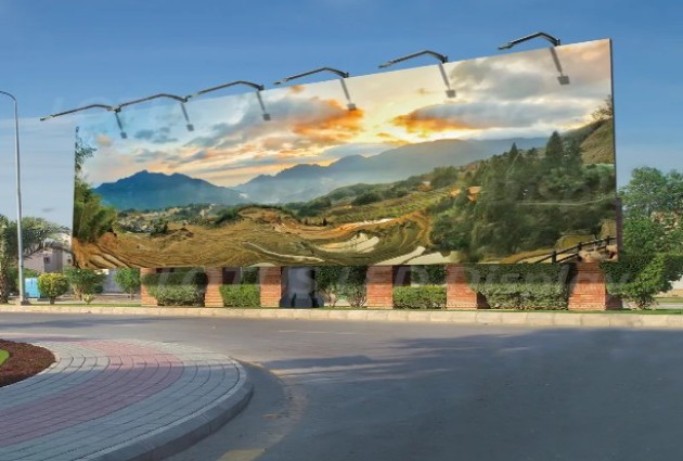

Outdoor Led Display

Outdoor Led Display

Standing On Floor Outdoor Led Video Wall

×
