Product Feature
1. High brightness
The stadium perimeter LED displays usually have very high brightness, ensuring clear visibility even under strong outdoor light conditions.
2. Waterproofness
The stadium perimeter LED displays usually have good waterproof performance and can work normally in bad weather conditions such as rainy days.
3. Strong weather resistance
The stadium perimeter LED displays can work stably under extreme temperatures and adapt to different climatic conditions. They usually use UV-resistant materials to prevent material aging caused by long-term exposure to sunlight.
4. High resolution
Supports HD and UHD display, providing clear and delicate image quality. You can also choose the appropriate resolution according to specific needs.
More details

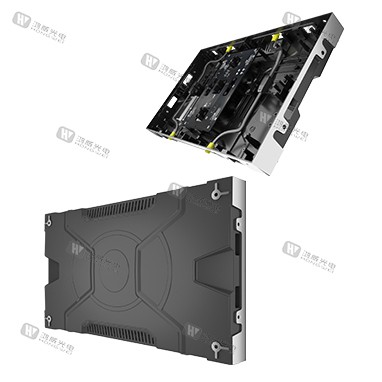

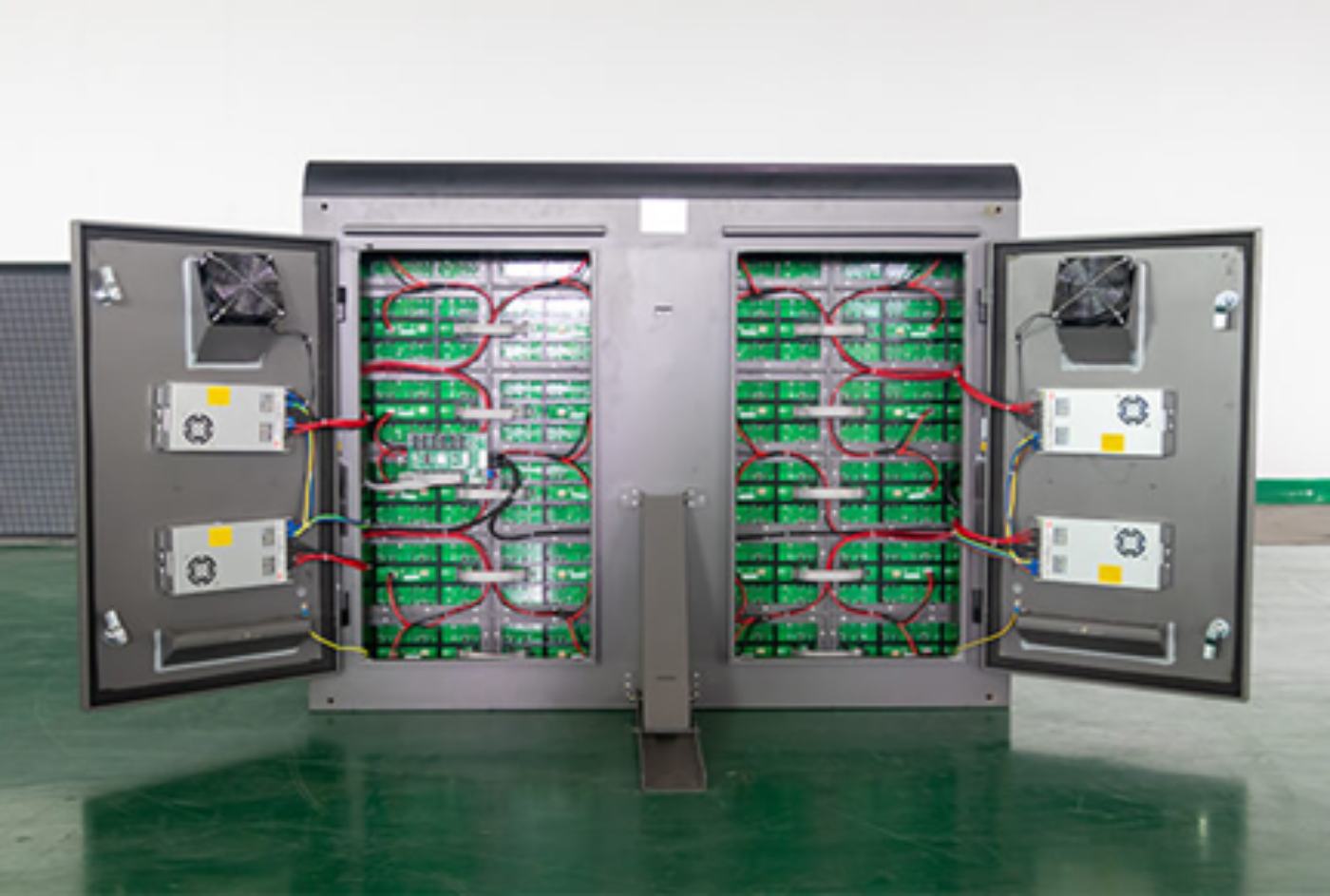

Solid, Compact, Strong Cabinet Design
Solid, Compact, Strong Cabinet Design For All Weather and Prevent form Any External Attacks.

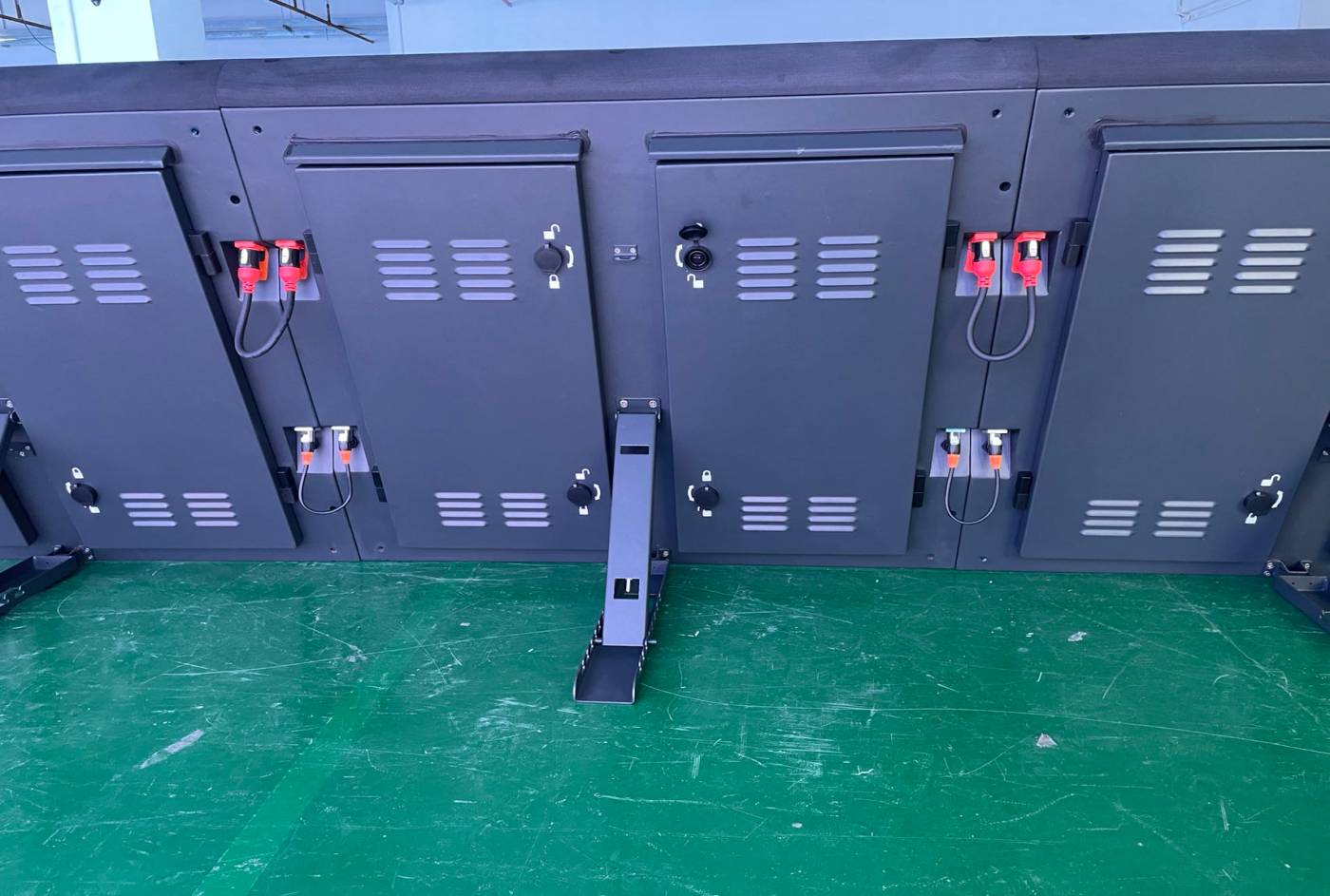

Can be stacked two or three cabinets high
It can be stacked two or three cabinets high with steel structure on the back.
Adjustable bracket
Adjustable bracket
Rotating Design with Wheels
Rotating Design with Wheels for Emergency Exit.
We can help you to design and customize your own led display, we work with professional engineers who continuously develop new products, constantly solve the pain points of the market and industry of led display.
One stop led video wall solutions: We provide complete led video wall proposal, including led panels, power
supply, control system, hanging beam, flight case, installation frame and other accessories.
Knowing that our products and your needs is the most important thing, suitable proposal can save so many times and cost.
24 hours online pre-sale and after-sales customer service, no time difference

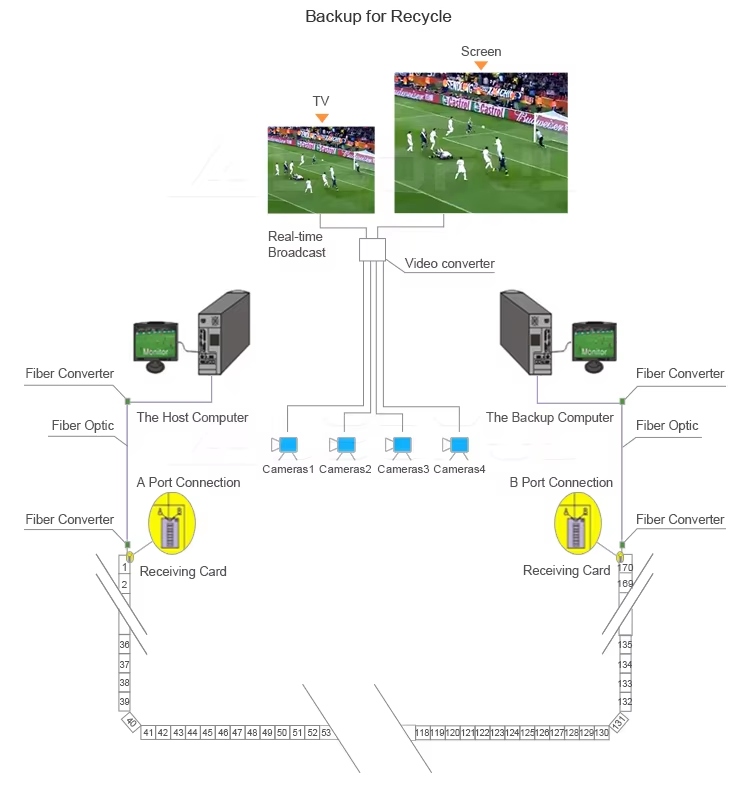

Control system
Product Specification
P5 Stadium Perimeter LED Display
| Pixel pitch | 5mm |
| Led type | MIP4040 |
| Usage | Outdoor |
| Protection class | IP33 |
| Brightness | 800-1500nits adjustable |
| Led panel material | Aluminum |
| Led panel size | 960 x 960mm |
| Scan | 1/36S |
| Drive IC | BGA IC |
| Weight | 6 kgs |
| Power supply | 110/220v-50/60Hz |
| Max/Avg power consumption | 50w/17w per led panel, energy saving |
Technical Specification
| Led lifetime | 100000 hours |
| Viewing angle | 140 ° / 140 °. Extended angle that improves viewing of images from the side |
| Working temperature and humidity | -30°C / 55°C 10%～95% |
| Refresh rate | 3840Hz |
| Pixel density | 1137764 dot/m2 |
| Control system | Novasater/Colorlight/Linsn |
| Video signal input | HDMI, DVI, VGA… |
| Grayscale | 14-16 bit |
| Brightness control | Programmable |
- PROGRAMMABLE ON AND OFF
- FAST AND EASY INSTALLATION
- SUPPORTED VIDEO AND IMAGE FILES: AVI, WMV, MPG, MOV, VOB, MP4, FLV, Bmp, jpg, png ...
Product Application

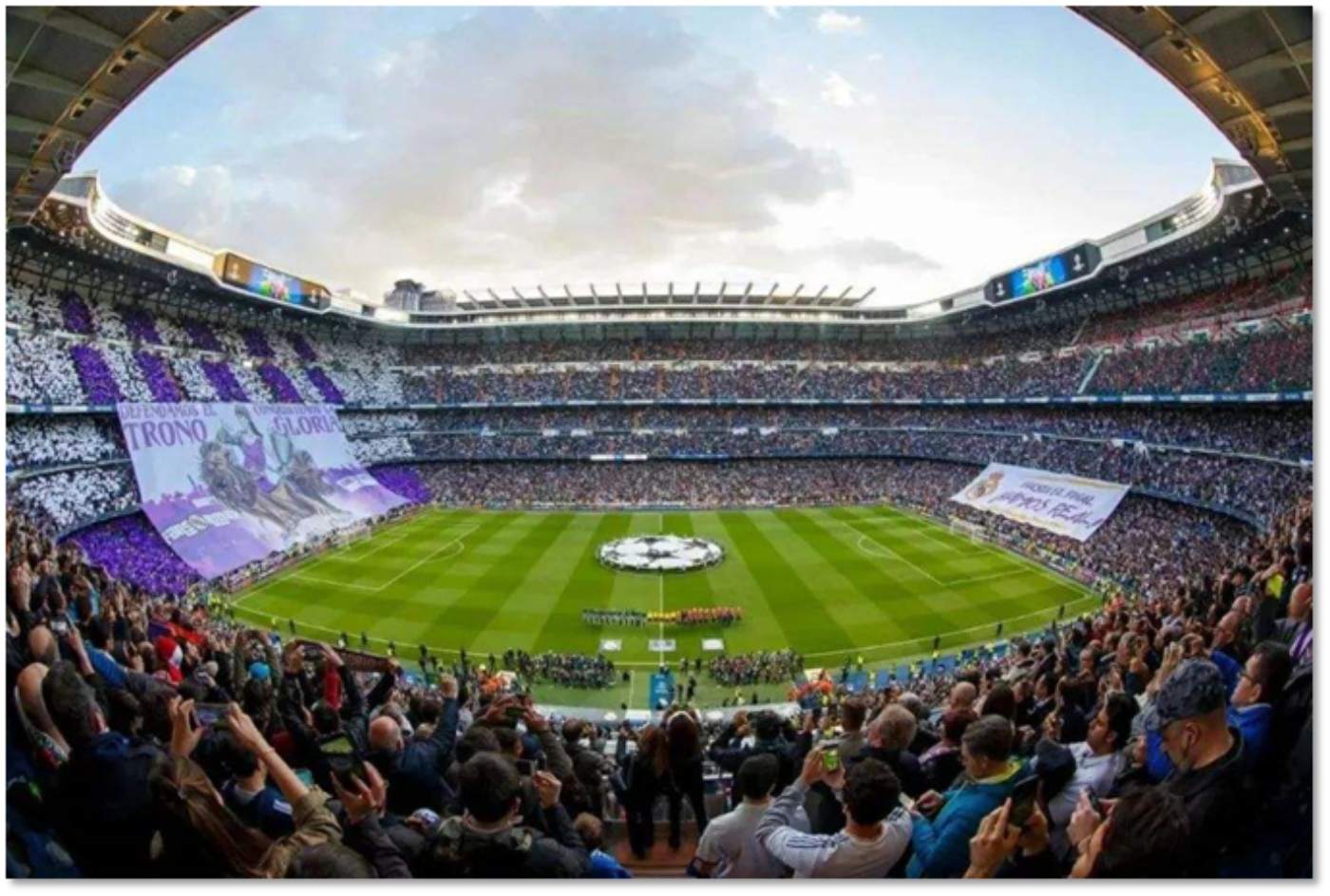

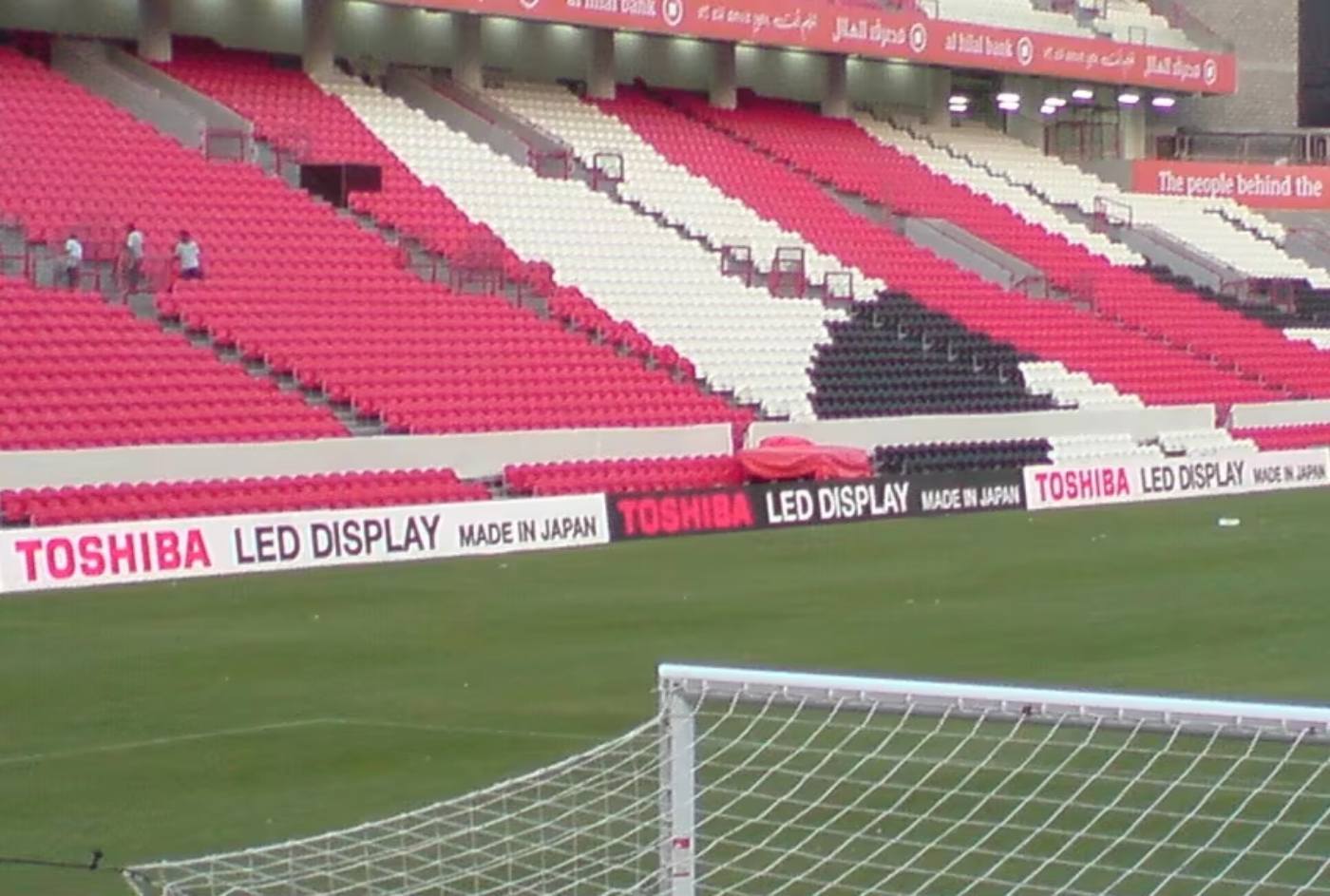

Outdoor stadium LED screen
Outdoor stadium audience LED screen
Outdoor stadium runway LED screen
Stadium audience LED display
