P8 Outdoor Stadium Perimeter LED Display Screen Die-cast Aluminum Material

Inquire

Product Feature

1. Waterproof and dustproof
The die-cut aluminum stadium LED display can work normally under adverse weather conditions such as rainy days. It is designed with dustproof function to prevent dust from entering the interior and extend the service life.


2. Flexible installation method
The modular design is adopted for easy installation and maintenance. It supports multiple installation methods such as hanging and column installation to meet the needs of different venues.


3. Convenient remote control and management
The stadium LED display can remotely control the content and display mode of the display through the network.


4. Low power consumption and energy saving and environmental protection
The high-efficiency LED lamp beads are used to reduce energy consumption. It meets environmental protection standards and reduces the impact on the environment.


5. Multi-language support
The stadium LED display supports multiple language display to meet the needs of international events. It can also easily switch between different languages ​​for easy understanding by the audience.

More details

Soft top cover

Soft top cover

Reduce impact and protect the led panel.

Soft mask

Soft mask

Can withstand the impact from the ball or personal with injury.

p8 Stadium Perimeter LED Displays

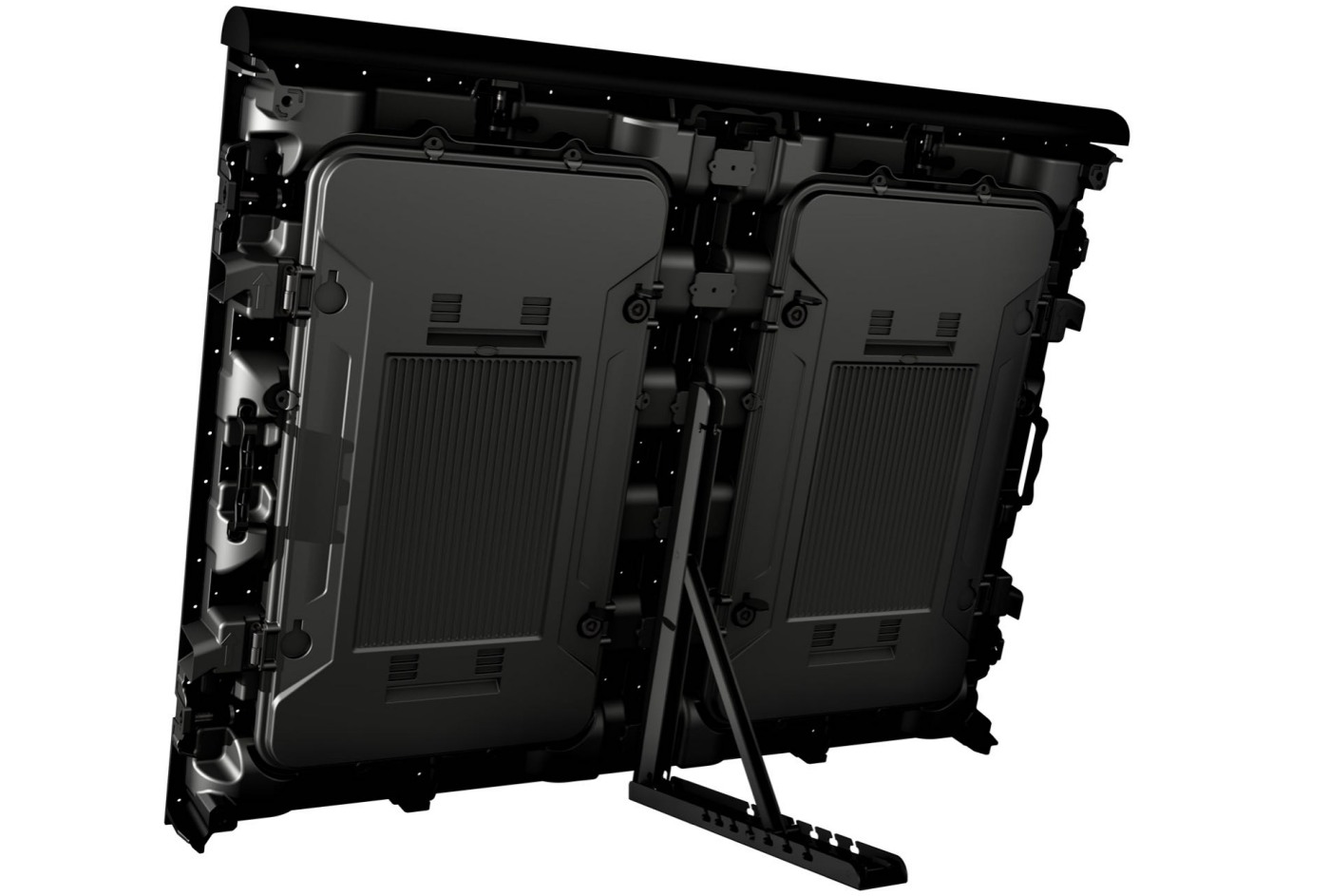

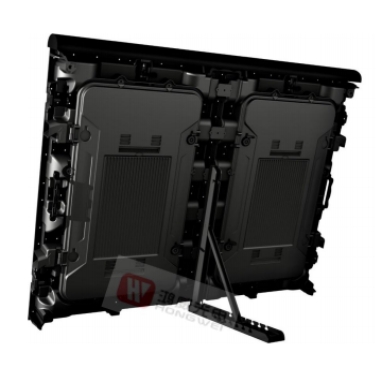

Support bracket

Support bracket

Adjust the angle to meet different request.



Aviation plug

Aviation plug

Aviation plug, plug and play, safe and easy.

We can help you to design and customize your own led display, we work with professional engineers who continuously develop new products, constantly solve the pain points of the market and industry of led display.

One stop led video wall solutions: We provide complete led video wall proposal, including led panels, power
supply, control system, hanging beam, flight case, installation frame and other accessories.

Knowing that our products and your needs is the most important thing, suitable proposal can save so many times and cost.
24 hours online pre-sale and after-sales customer service, no time difference

Product Size



Product Specification

P8 Perimeter LED Screen

Pixel pitch 8mm
Led type SMD3535
Usage Outdoor
Protection class IP65
Brightness 6500nits
Led panel material Die casting aluminum

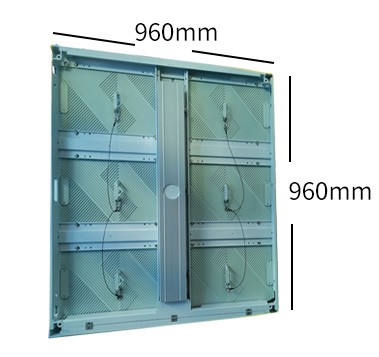

Led panel size 960 x 960mm
Weight 30 kgs
Power supply 110/220v-50/60Hz
Avg power consumption 400W / m2 - SmartPower system for less consumption

Technical Specification

Led lifetime 100000 hours
Viewing angle 140 ° / 140 °. Extended angle that improves viewing of images from the side
Working temperature and humidity -30°C / 55°C 10%~95%
Refresh rate 3840Hz
Pixel density 15625 dot/m2
Control system Novasater/Colorlight/Linsn
Video signal input HDMI, DVI, VGA…
Grayscale 14-16 bit
Brightness control Programmable
  • PROGRAMMABLE ON AND OFF
  • FAST AND EASY INSTALLATION
  • SUPPORTED VIDEO AND IMAGE FILES: AVI, WMV, MPG, MOV, VOB, MP4, FLV, Bmp, jpg, png ...

Product Application

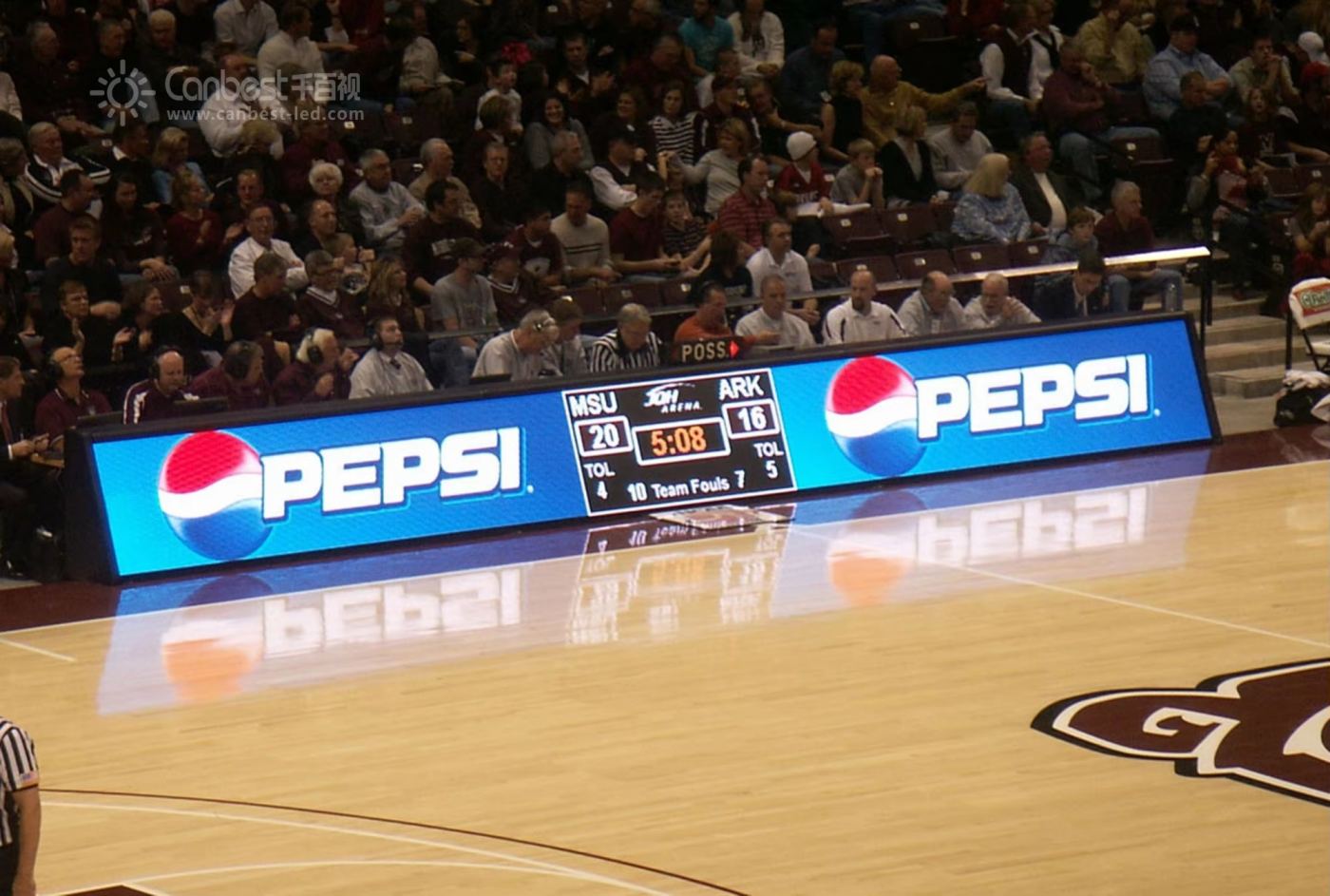

Outdoor stadium screen

Outdoor stadium LED screen

Outdoor stadium LED screen

Outdoor stadium audience LED screen

Outdoor stadium runway LED screen

Outdoor stadium runway LED screen

stadium audience LED display

 Stadium audience LED display
