4k 8K Small Pixel 600x337.5mm COB GOB P0.9 Mini Micro Led Display

Inquire

Product Feature

GOB LED displays are commonly used in applications where image quality, protection, and visual clarity are critical, such as high-resolution indoor displays, large screens, and fine-pitch LED displays. Traditional LED displays are still widely used in various applications and may be more cost-effective for certain scenarios where the advantages of GOB technology are not essential.



COB stands for "Chip-on-Board," and it refers to a type of LED (Light-Emitting Diode) packaging technology; GOB (Glue-On-Board) LED displays offer several advantages that make them suitable for specific applications.



GOB technology provides better protection for the LEDs since the glue layer covers the LED chips and other sensitive components on the PCB. The GOB layer acts as a protective shield, making the display more robust and resistant to environmental factors like dust, moisture, and physical impact.



  • Compatibility with Fine-Pitch Displays: GOB technology is well-suited for fine-pitch LED displays, where high pixel density and image quality are critical. The controlled light emission and improved visual clarity make GOB LED displays ideal for applications requiring small pixel pitches. So 2K/4K/8K relosution are acceptable.
  • Light and slim design panel with energy saving br 30%
  • Enhance the protection level from physical damage
  • Size is fully customizable - 16:9 ratio
  • Higher Contrast Ratio: The improved control over light emission in GOB LED displays can lead to higher contrast ratios, enhancing the display's ability to reproduce deep blacks and vibrant colors. This is particularly important for applications like cinema screens, where contrast performance is crucial for an immersive viewing experience.
  • Totally cable-less connection, dual power ans sign backup are optional

More details

COB + GOB technology with high protection

GOB products use self-developed transparent Glue material to encapsulate the substrate and its LED packaging unit to from effective protection. It's moisture resistance waterproof, dustproof, impact resistance.

Energy Saving by 30%

Brightness can be adjustable from 600-1500 nits; Wide viewing angle and 16:9 ratio, can be spliced to standard resolution of 2K/4K/8K.

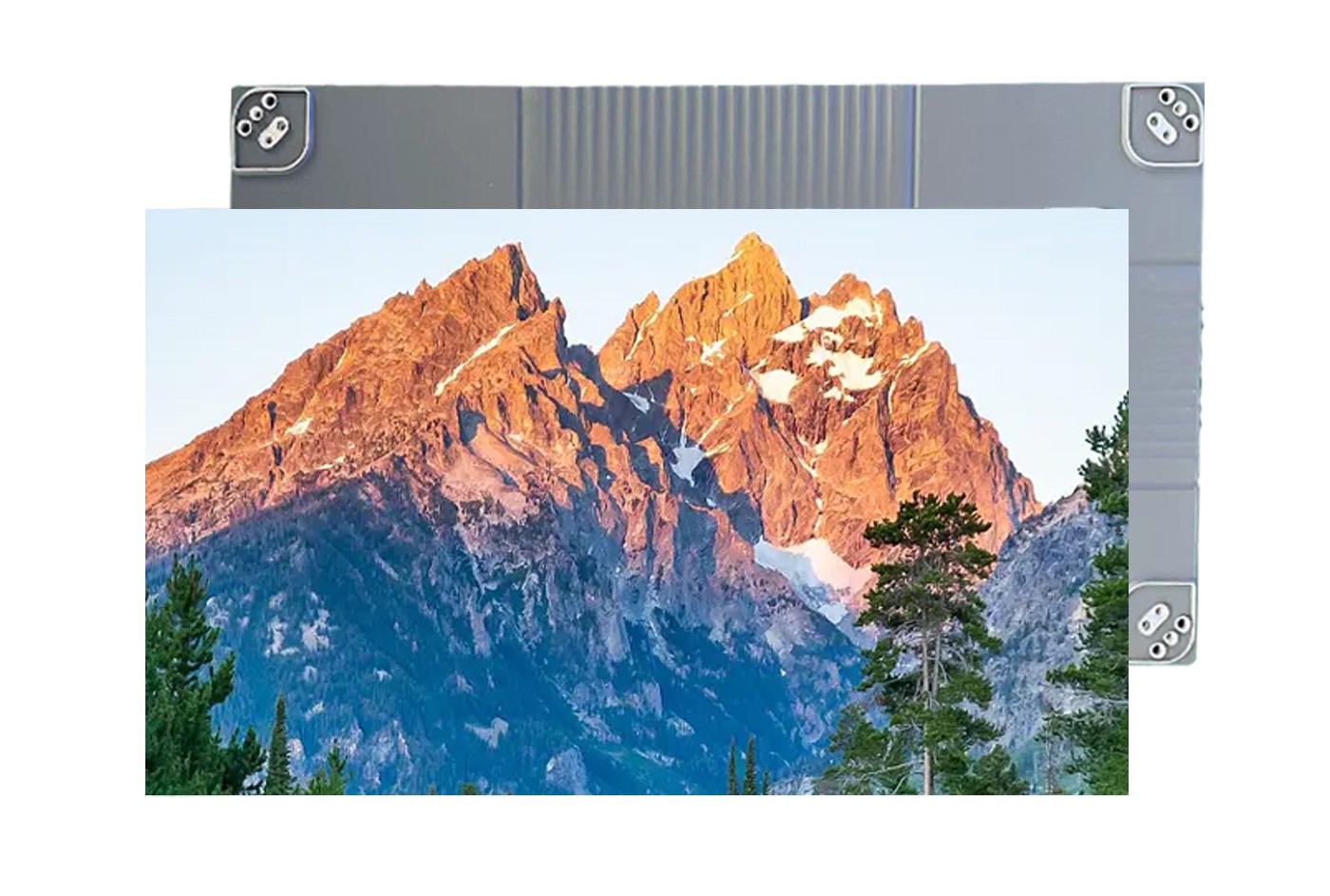

Easy Front Service Design

The protective GOB layer helps reduce the risk of damage to the LED chips during maintenance or cleaning processes. Additionally, the protection against dust and moisture can lead to reduced maintenance requirements over time.



Signal and power backup

Support signal and power backup, so that the display screen can work normally.

We can help you to design and customize your own led display, we work with professional engineers who continuously develop new products, constantly solve the pain points of the market and industry of led display.

One stop led video wall solutions: We provide complete led video wall proposal, including led panels, power
supply, control system, hanging beam, flight case, installation frame and other accessories.

Knowing that our products and your needs is the most important thing, suitable proposal can save so many times and cost.
24 hours online pre-sale and after-sales customer service, no time difference

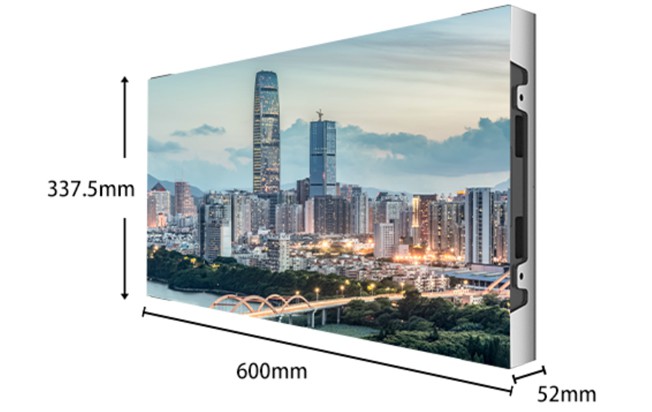

Product Size



Product Specification

P0.9 Mini COB GOB Mirco Indoor LED Display

Pixel pitch 0.9375mm
Led type MIP4040
Usage Indoor
Protection class IP33
Brightness 800-1500nits adjustable
Led panel material Aluminum
Led panel size 600 x 337.5mm
Scan 1/36S
Drive IC BGA IC
Weight 6 kgs
Power supply 110/220v-50/60Hz
Max/Avg power consumption 50w/17w per led panel, energy saving

Technical Specification

Led lifetime 100000 hours
Viewing angle 140 ° / 140 °. Extended angle that improves viewing of images from the side
Working temperature and humidity -30°C / 55°C 10%~95%
Refresh rate 3840Hz
Pixel density 1137764 dot/m2
Control system Novasater/Colorlight/Linsn
Video signal input HDMI, DVI, VGA…
Grayscale 14-16 bit
Brightness control Programmable
  • PROGRAMMABLE ON AND OFF
  • FAST AND EASY INSTALLATION
  • SUPPORTED VIDEO AND IMAGE FILES: AVI, WMV, MPG, MOV, VOB, MP4, FLV, Bmp, jpg, png ...

Product Application

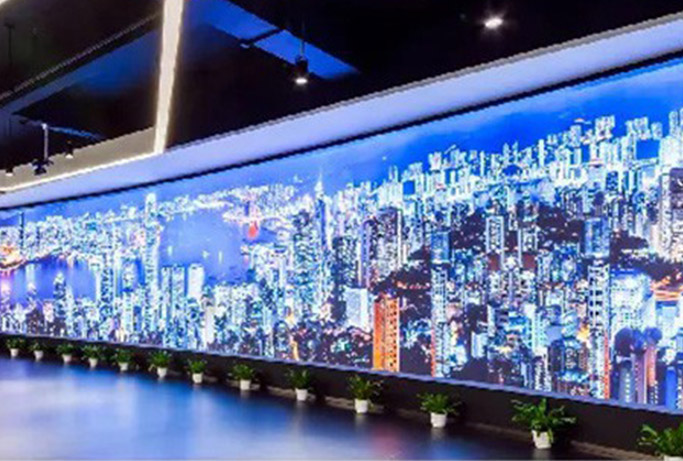

Exhibition Hall

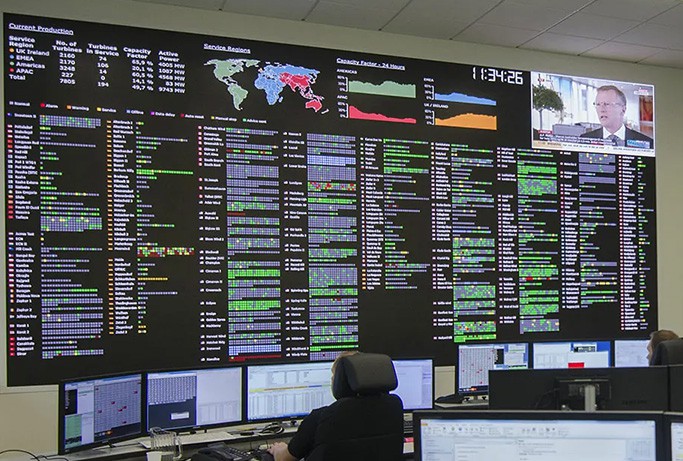

Monitoring Center

Observation Room

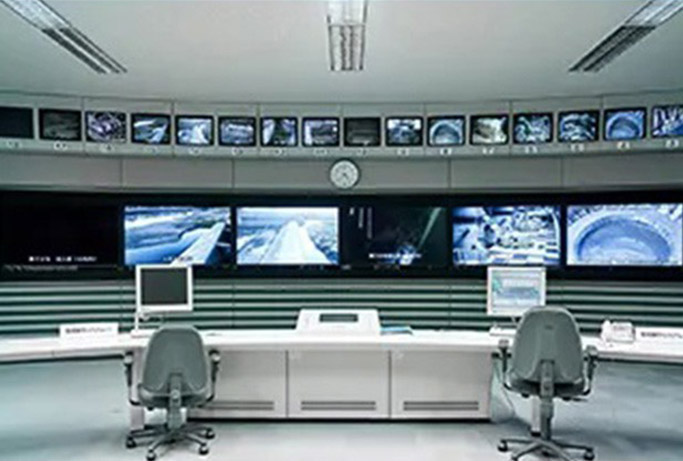

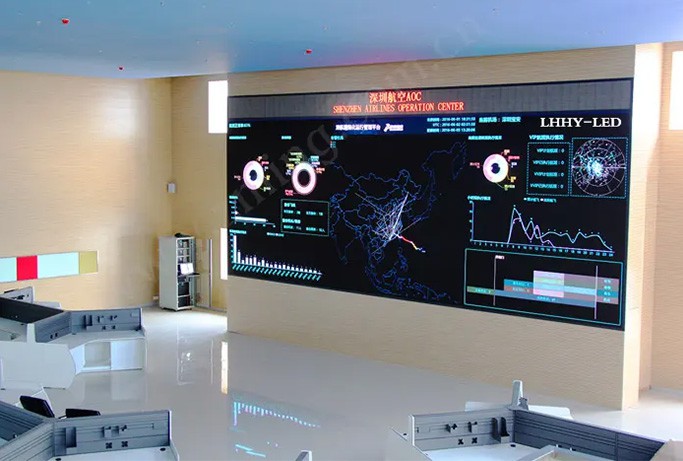

Control Center
