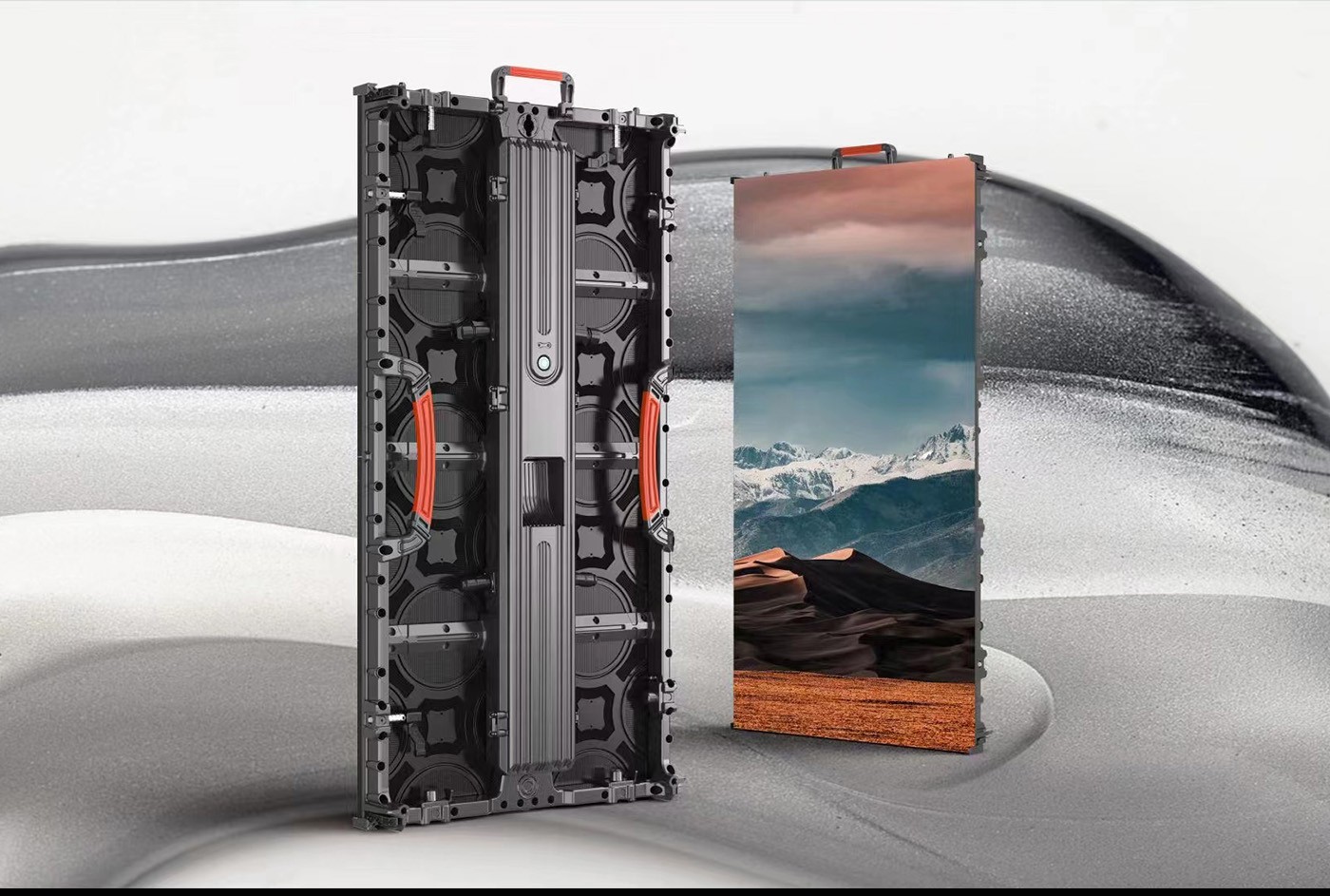

Versatile Indoor/Outdoor LED Video Wall, measuring 500mm x 1000mm, delivers stunning visuals. Perfect for various settings, it offers exceptional clarity and durability in any environment.
Product Feature
- New design die casting aluminum, have 500x500mm and 500x1000mm
- Can do cable free hard link design for inside connection
- Different pixel pitch for your choice: P1.9/P2.6/P2.9/P3.9/P4.8
- Perfect seamless stitching and fast installation
- Lightweight and slim thickness
- Front or back maintenance
More details

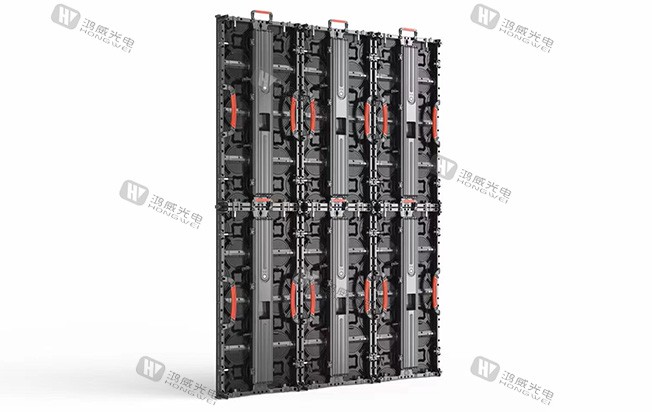

Fast Installation Lock and Seamless Side Lock
The side locks are used to tighten up the cabinets while installing, to reduce the gaps between cabinets. It is good to present the seamless screen.
Module Protection Corner
Corner protection designis avoiding any hits for modules' corner,100% protect LEDs.
We can help you to design and customize your own led display, we work with professional engineers who continuously develop new products, constantly solve the pain points of the market and industry of led display.
One stop led video wall solutions: We provide complete led video wall proposal, including led panels, power
supply, control system, hanging beam, flight case, installation frame and other accessories.
Knowing that our products and your needs is the most important thing, suitable proposal can save so many times and cost.
24 hours online pre-sale and after-sales customer service, no time difference

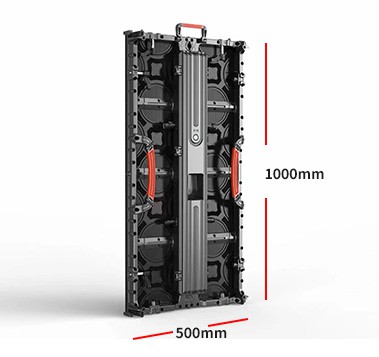

Product Size
Product Specification
Indoor LED Display
| Pixel pitch | 4.81mm |
| Led type | SMD2121 |
| Usage | Indoor |
| Protection class | IP33 |
| Brightness | 800nits |
| Led panel material | Die casting aluminum |
| Led panel size | 500 x 500mm /500 x 1000mm |
| Weight | 6.4 / 12.5kgs |
| Power consumption | 800W/250W per square meter |
Outdoor LED Display
| Pixel pitch | 4.81mm |
| Led type | SMD1921 |
| Usage | Outdoor |
| Protection class | IP65 |
| Brightness | 5000nits |
| Led panel material | Die casting aluminum |
| Led panel size | 500 x 500mm /500 x 1000mm |
| Weight | 6.8 / 12.8kgs |
| Power supply | 110/220v-50/60Hz |
| Power consumption | 800W/250W per square meter |
Technical Specification
| Led lifetime | 100000 hours |
| Viewing angle | 140 ° / 140 °. Extended angle that improves viewing of images from the side |
| Working temperature and humidity | -30°C / 55°C 10%～95% |
| Refresh rate | 1920-3840Hz |
| Pixel density | 65536 dot/m2 |
| Control system | Novasater/Colorlight/Linsn |
| Video signal input | HDMI, DVI, VGA… |
| Grayscale | 65536 |
| Brightness control | Programmable |
- PROGRAMMABLE ON AND OFF
- FAST AND EASY INSTALLATION
- SUPPORTED VIDEO AND IMAGE FILES: AVI, WMV, MPG, MOV, VOB, MP4, FLV, Bmp, jpg, png ...
Product Application
Public Event
Conference
Stage Background
Outdoor Public Events
