54’’ 1200x675mm Indoor Fine Pixel Pitch COB Led Display P0.7 P0.9 P1.25

Inquire

Product Feature

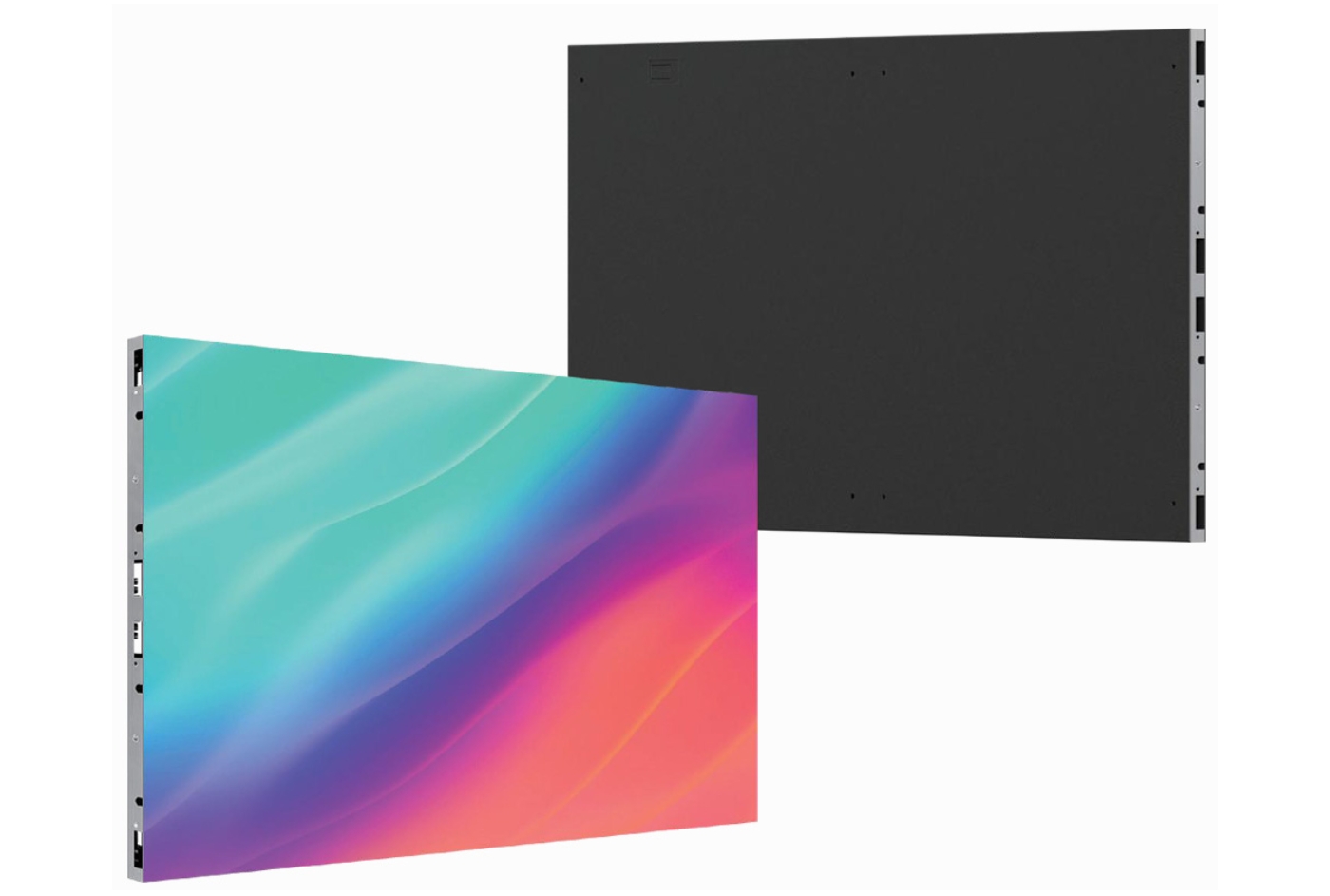

The 54-inch COB series Led Display is Hongwei’s self-developed UHD product designed for the small-pitch LED display market. It uses chip-on-board (COB) advanced packaging technology to provide unparalleled brightness uniformity, color accuracy and reliability for 24/7 mission-critical operations in security monitoring centers, broadcast studios, command and dispatch systems, and corporate boardrooms.

1. 54 Inch Large Size:  (1200×675mm): The first and largest standardized unit in the COB LED industry, minimizing bezel gaps and enabling ultra-smooth large-scale video walls.

2. Easy Installation and Maintenance: Save labor cost and time, especially for all-in-one TV installation.

3. Ultra-Thin: The current industry's largest and thinnest LED display unit, greatly saving space, especially suitable for exhibition halls and all in one TV.



More details

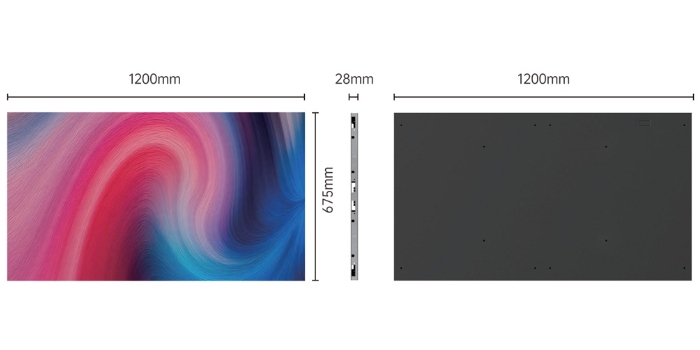

1. 54 Inch Large Size:

Compared with traditional small-size modules, the large unit reduces splicing and debugging time by 80%, and supports arbitrary horizontal/vertical expansion, adapting to complex scenes such as curved walls in command centers and floor screens in studios.

large size

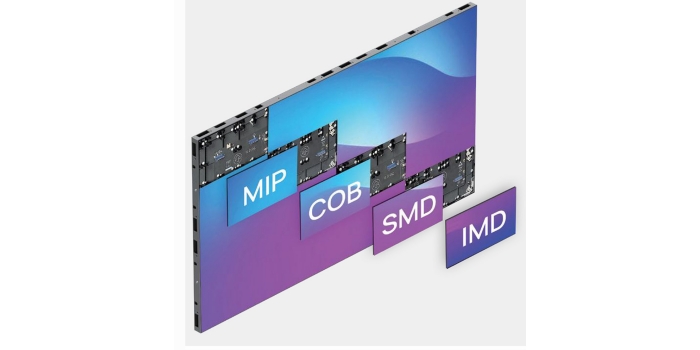

2. Compatible with Multiple Packaging Technologies

Innovatively compatible with four packaging processes: SMD, COB, IMD, and MIP, users can freely choose according to budget and environmental requirements.

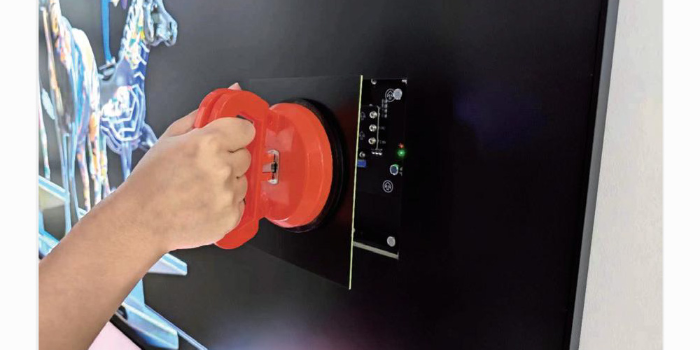

3. Full Front Service Design:

Adopting pure front maintenance structure, only one person is needed to complete module replacement.

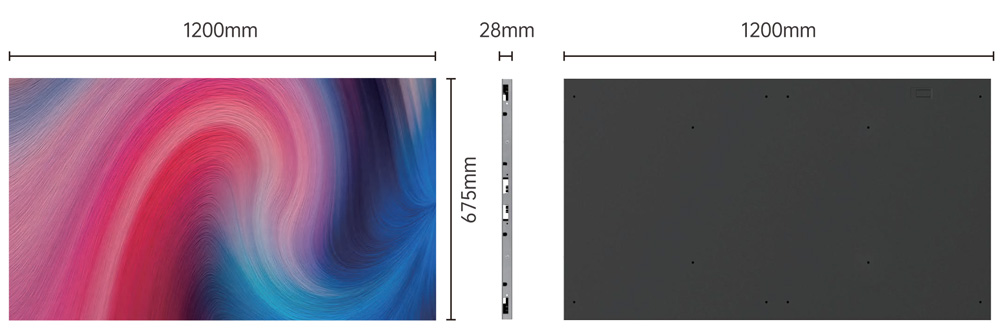

Product Size

size

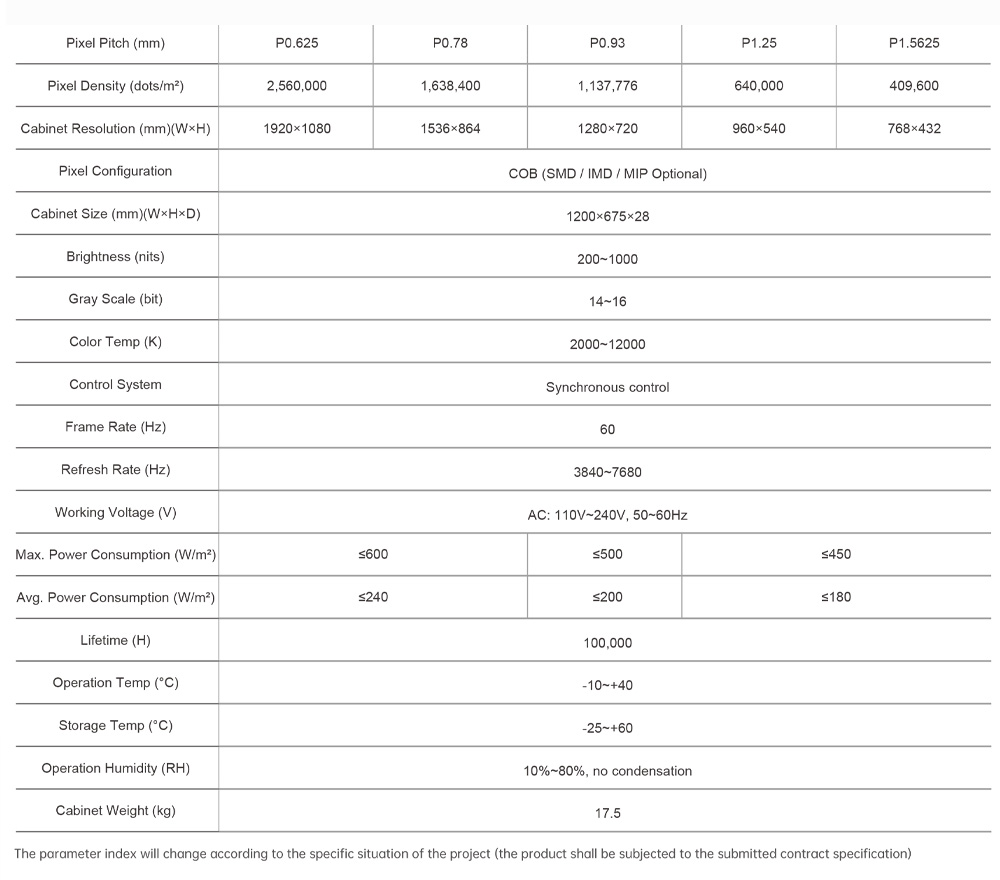

Product Specification

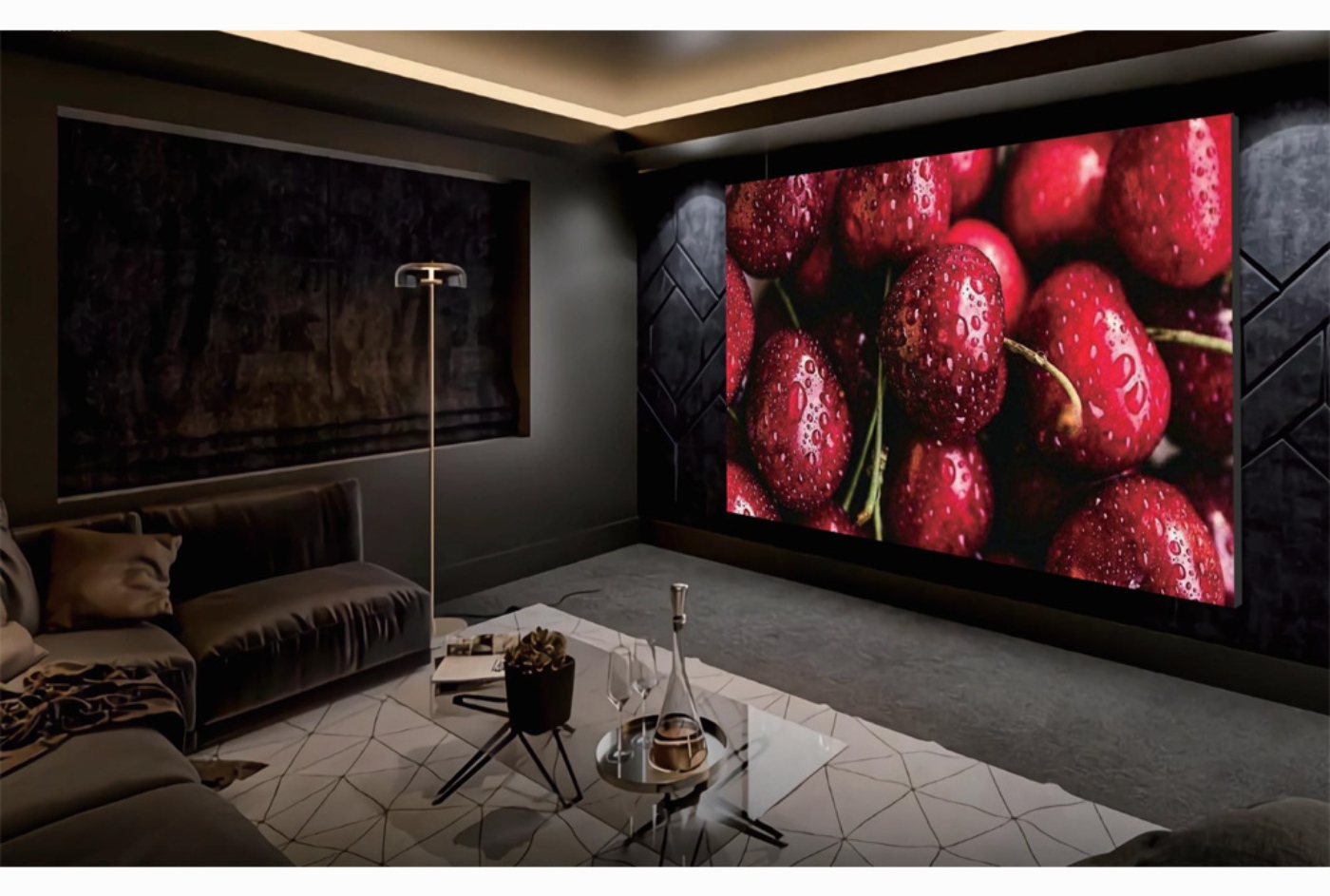

Product Application

Video Conferencing COB Display

Video Conferencing COB Display

Security Monitoring COB Display

Security Monitoring COB Display

Advertising COB Display

Advertising COB Display

Conference Hall COB Display

Conference Hall COB Display

×
