960x960mm Waterproof Die Casting P10 3D Advertising Outdoor Led Screen

960x960mm die casting aluminum cabinet; 6500-10000nits high brightness

Inquire

Product Feature

Welcome to Hongwei Led Display ,Direct Factory Supplier ,No Middle Man, Money Saving, Direct and Professional After-sale Service.

  • We are professional product and sale LED display manufacture
  • We are provide resonable price and high quality led displays,accept customized order
  • Welcome to our factory for inspection in Shenzhen,China
  • No MOQ limit
  • Before sending us inquiries,pls tell us  :
  1. LED screen size you need .

  2. Using place .

  3. Your nearest seaport or airport name if need us to check the exact shipping fee to your place.

Pixel picth are available for P2.5 P4 P5 P8 P10, can meet your request on different resoluiton.

  • Die casting aluminum cabinet, slim thin, light weight and good heat dissipation
  • IP65 waterproof, 6500-10000nits high brightness, have good visual effect under strong sun shine
  • High precision, make screen combined flatly
  • Birghtness adjustable, meet different brightness in day and night



More details

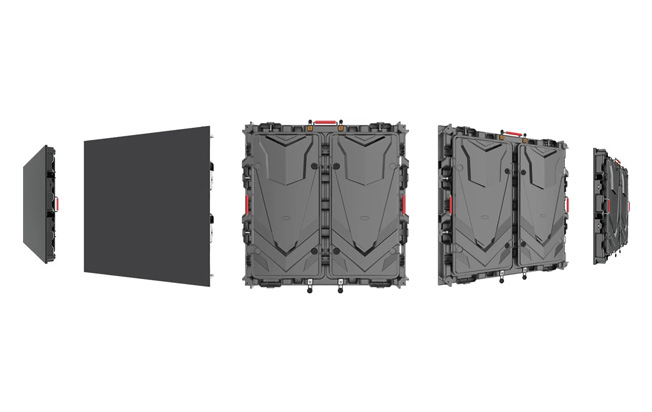

Light and slim design: 10mm thichness, 28kgs/panel (960x960mm

Totally front and rear service, easy for installation and mainteniance

Coling fun, help to disspiate heat



 Signal connector and power connector

We can help you to design and customize your own led display, we work with professional engineers who continuously develop new products, constantly solve the pain points of the market and industry of led display.

One stop led video wall solutions: We provide complete led video wall proposal, including led panels, power
supply, control system, hanging beam, flight case, installation frame and other accessories.

Knowing that our products and your needs is the most important thing, suitable proposal can save so many times and cost.
24 hours online pre-sale and after-sales customer service, no time difference

Product Size

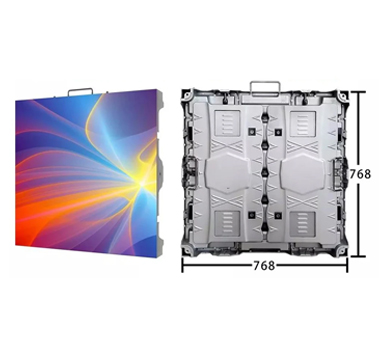

Different size are available:  960×960mm;768×768mm;

Product Specification

P10 Outdoor LED Display

Pixel pitch 10mm
Led type SMD3535
Usage Outdoor
Protection class IP65
Brightness 6500-10000nits adjustable
Led panel material Die Casting Aluminum
Led panel size 960 x 960mm
Scan 1/2S
Pixel density 10000 dot/m2
Weight 28 kgs
Power supply 110/220v-50/60Hz
Max/Avg power consumption 650w/200w per led panel, energy saving

P8 Outdoor LED Display

Pixel pitch 8mm
Led type SMD3535
Usage Outdoor
Protection class IP65
Brightness 6500-10000nits adjustable
Led panel material Die casting Aluminum
Led panel size 960 x 960mm
Scan 1/5S
Pixel density 15625 dot/m2
Weight 28 kgs
Power supply 110/220v-50/60Hz
Max/Avg power consumption 650w/200w per led panel, energy saving

Technical Specification

Led lifetime 100000 hours
Viewing angle 140 ° / 140 °. Extended angle that improves viewing of images from the side
Working temperature and humidity -30°C / 55°C 10%~95%
Refresh rate 1920-3840Hz
Pixel density 1137764 dot/m2
Control system Novasater/Colorlight/Linsn
Video signal input HDMI, DVI, VGA…
Grayscale 14-16 bit
Brightness control Programmable
  • PROGRAMMABLE ON AND OFF
  • FAST AND EASY INSTALLATION
  • SUPPORTED VIDEO AND IMAGE FILES: AVI, WMV, MPG, MOV, VOB, MP4, FLV, Bmp, jpg, png ...

Product Application

3D Outdoor Led Display For Advertising

Street Advertising Outdoor Led Screen Billboard

Outdoor Led Display Standing On Top Of Building

Standing On Floor Outdoor Led Video Wall
