Cuvred led wall for public events
Product Feature
P4 Soft LED Module is a high-quality LED display module that is designed to provide exceptional performance and display quality. The module is manufactured using high-quality materials and state-of-the-art technology to ensure that it meets all the requirements of the customers.

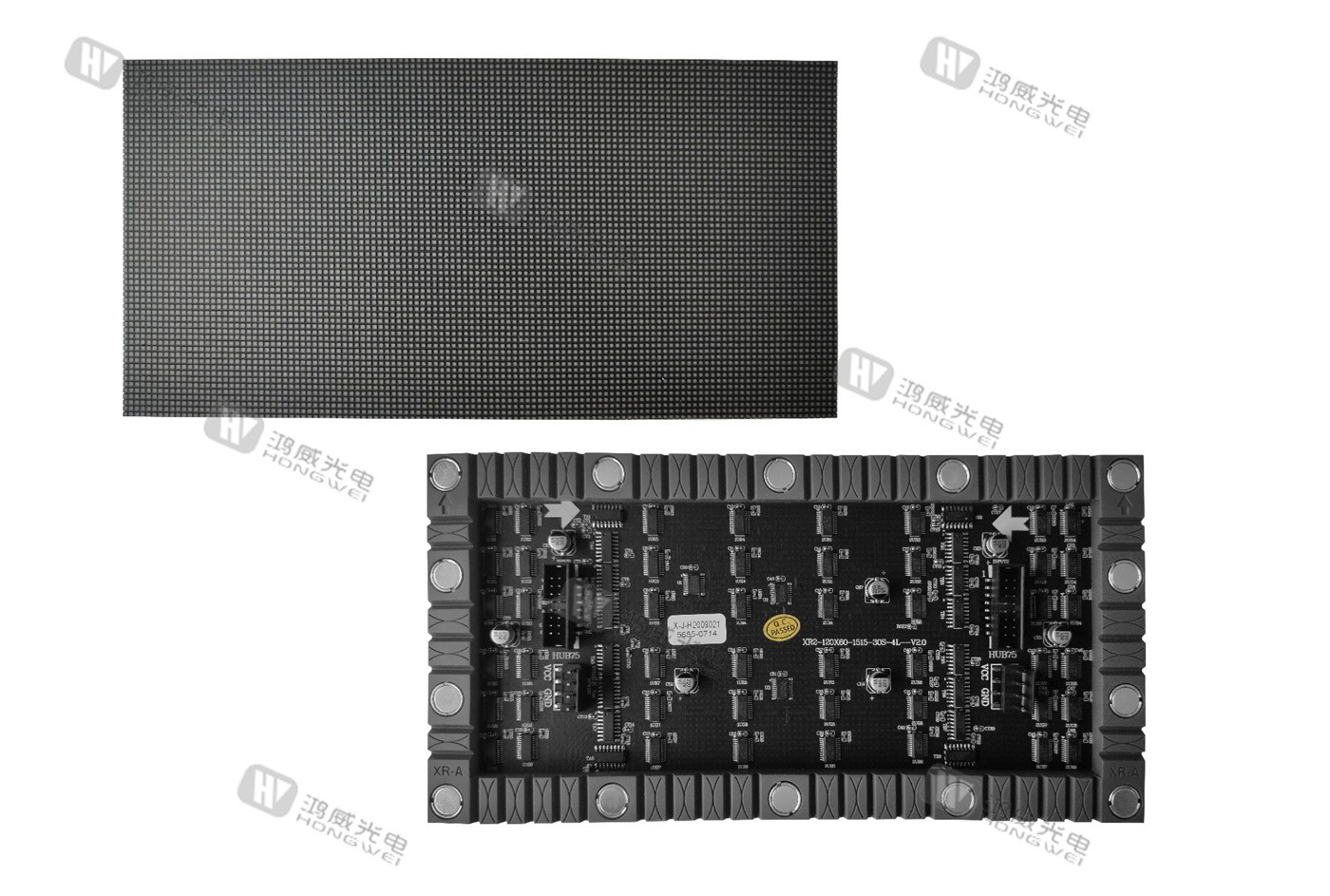

- 240x120mm and 320x160mm led module size,made by SMD1515

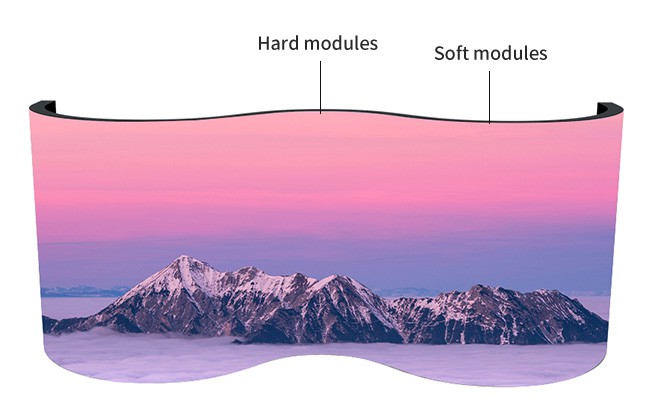

- Seamless splicing: silicone soft shell make the screen more flat and seamless splicing, soft module and hard module can be combined to different shapes and sizes
- 3840Hz high refresh: without scanning line, clear and vivid picture

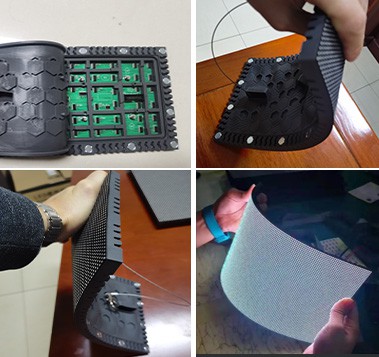

- Inner arc & outer arc are available: with high flexibility, can be circle, wave, bend and cylinder screen, creative solutions
More details
Magnet adjustable
The height of magnet can be adjusted, which is convenient to make the screen more flat
V-shaped design
The deep V-shaped design allows the module to look more flat
We can help you to design and customize your own led display, we work with professional engineers who continuously develop new products, constantly solve the pain points of the market and industry of led display.
One stop led video wall solutions: We provide complete led video wall proposal, including led panels, power
supply, control system, hanging beam, flight case, installation frame and other accessories.
Knowing that our products and your needs is the most important thing, suitable proposal can save so many times and cost.
24 hours online pre-sale and after-sales customer service, no time difference
Various Angles And Radians
Inner arc & outer arc are available: Can be cusotmized to different shape and size for outdoor waterproof usage.
Product Specification
P2 Soft Flexible Outdoor LED Modules
Pixel pitch | 2mm |
Led type | SMD1515 |
Usage | Indoor |
Led module size | 240 x 120mm / 320 x 160mm |
Protection class | IP33 |
Brightness | 800nits |
Led panel material | Iron cabinet |
Led panel size | Customized |
Weight | 35 kgs per square meter |
Power supply | 110/220v-50/60Hz |
Max/Avg power consumption | 1000w/350w per square meters |
Technical Specification
Led lifetime | 100000 hours |
Viewing angle | 160 ° / 160 °. Extended angle that improves viewing of images from the side |
Working temperature and humidity | -30°C / 55°C 10%~95% |
Refresh rate | 1920-3840Hz |
Pixel density | 250000 dot/m2 |
Control system | Novasater/Colorlight/Linsn |
Video signal input | HDMI, DVI, VGA… |
Grayscale | 14-16 bit |
Brightness control | Programmable |
- PROGRAMMABLE ON AND OFF
- FAST AND EASY INSTALLATION
- SUPPORTED VIDEO AND IMAGE FILES: AVI, WMV, MPG, MOV, VOB, MP4, FLV, Bmp, jpg, png ...
Product Application

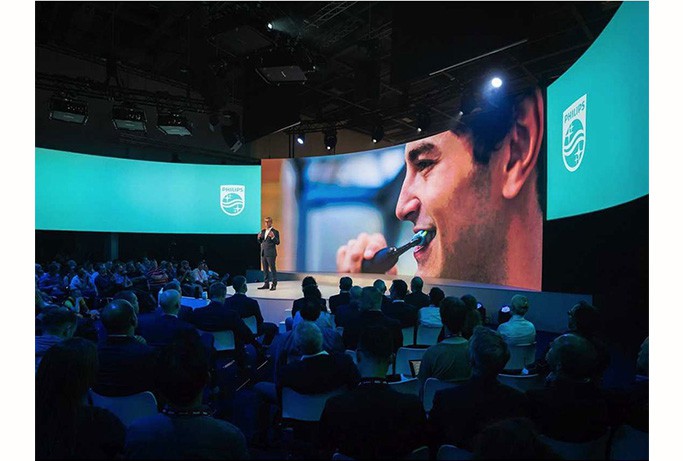

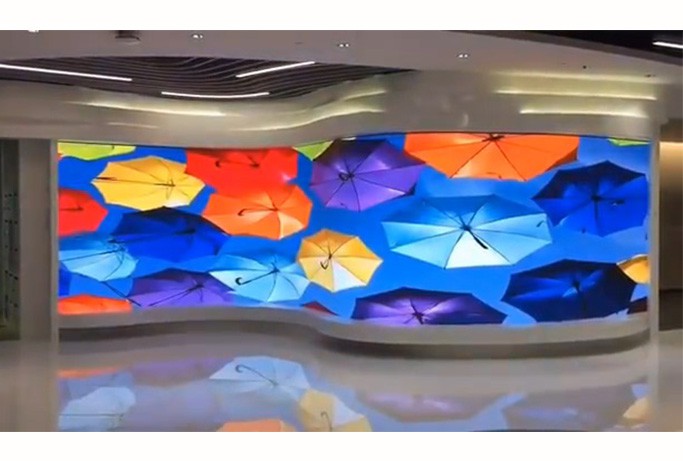

Wall mounted inner arc & outer arc led display
Round circle column for shopping mall

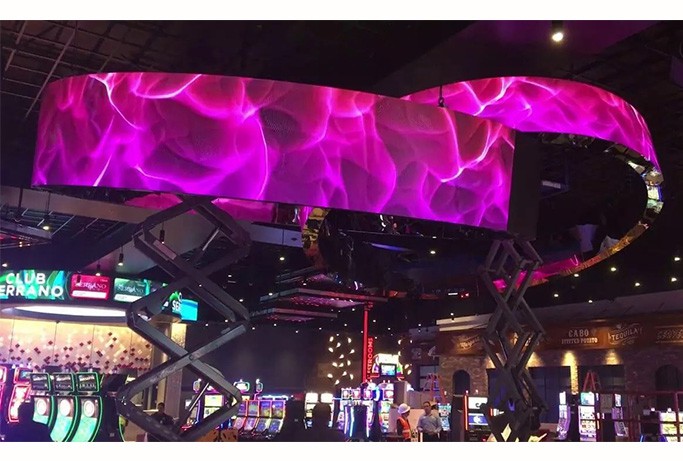

Creative hanging up installation flexible led banner
