Outdoor Naked-eye 3D Creative Die Casting Aluminum LED Display

Inquire

Product Feature

1. Customizable Shapes and Configurations:

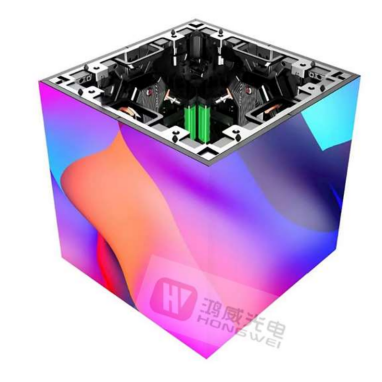

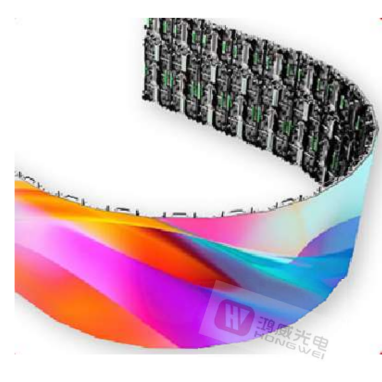

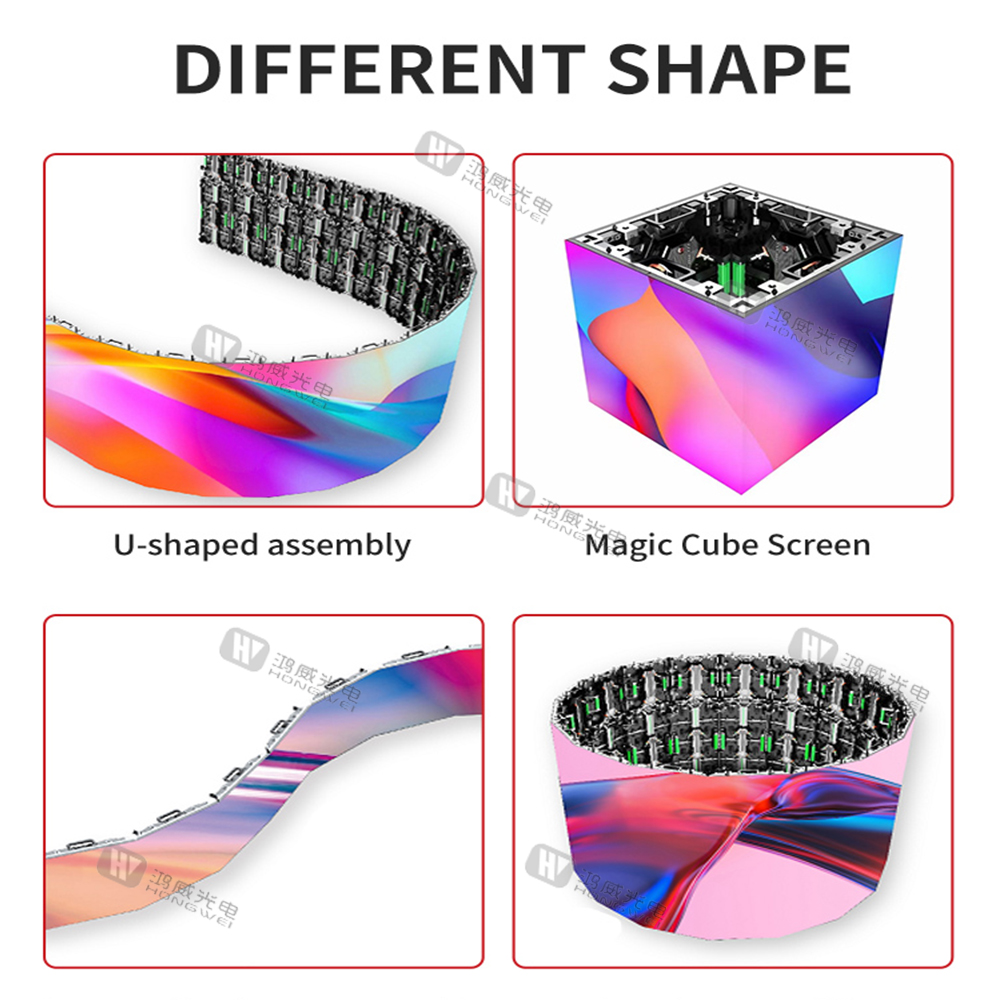

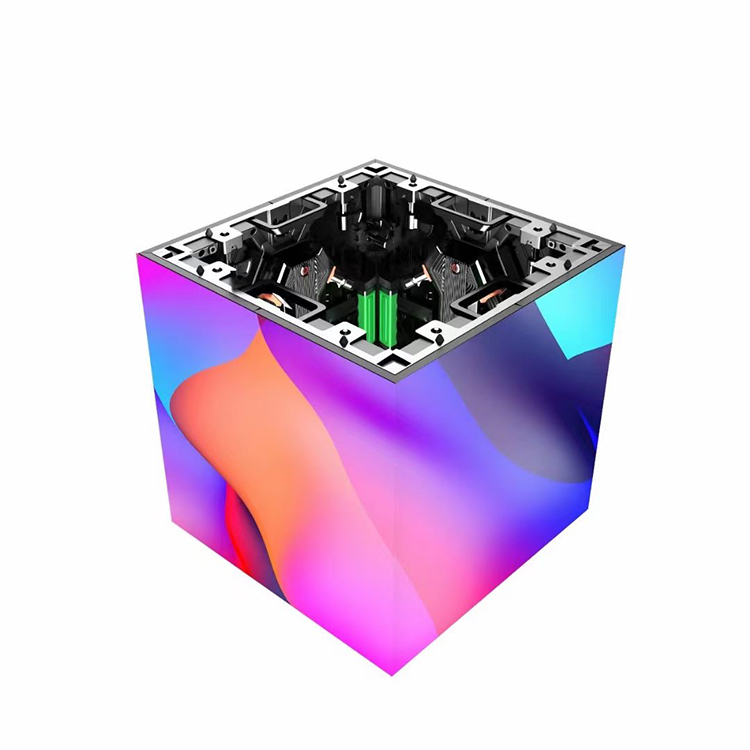

The outdoor naked-eye 3D creative LED display offers unparalleled flexibility in terms of form and structure. It allows for the creation of unique, eye-catching designs such as U-shaped assemblies, Magic Cube Screens, inner and outer arc configurations, and more. These unconventional shapes break free from the confines of traditional rectangular displays, enabling architects, advertisers, and event planners to craft immersive visual experiences tailored to specific environments or creative concepts.


2. Versatile Angles and Curvatures:
The ability to incorporate 90-degree corners adds a distinct geometric element to the overall display design, suiting applications where sharp, angular aesthetics are desired. For a softer, more organic look, the LED screens can be fitted with curved locks, transforming them into seamless curved screens. This versatility ensures that the display seamlessly integrates with any architectural or landscape features, enhancing the visual impact of 3D content by aligning with the viewer's natural line of sight.

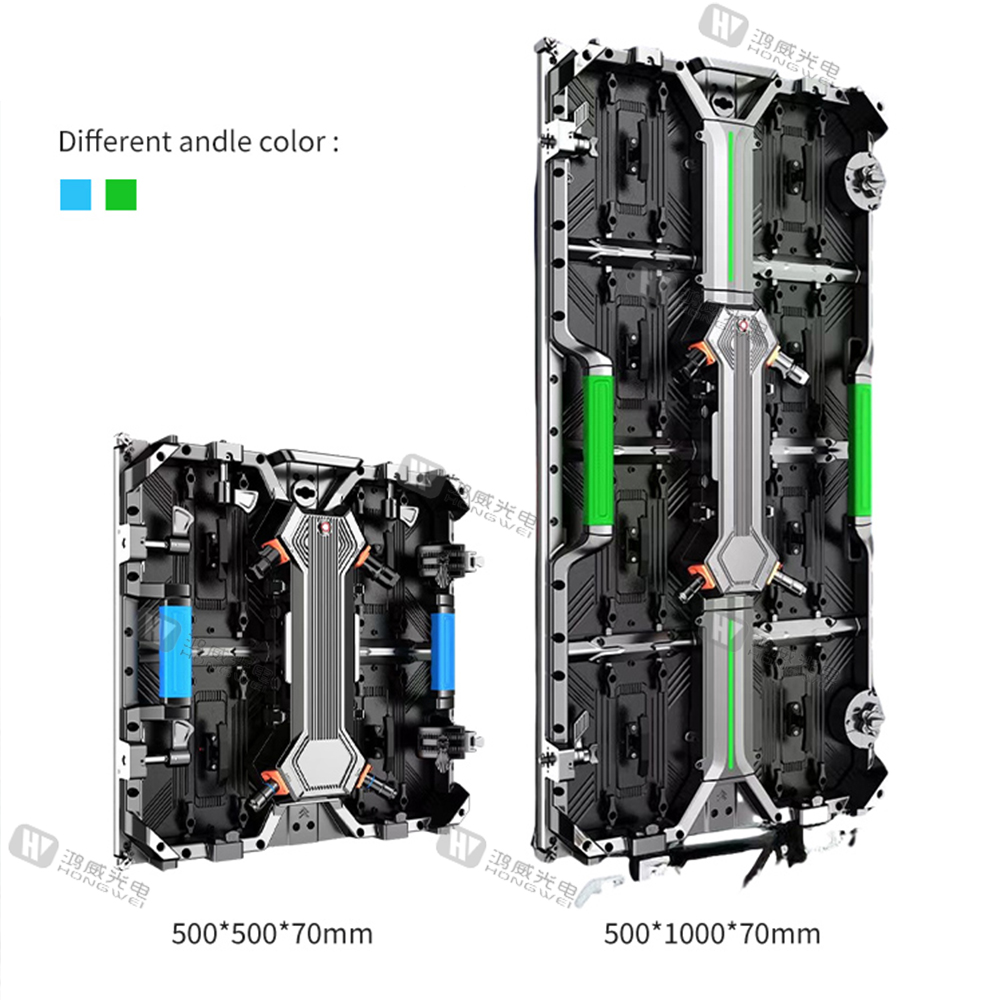

3. Wide Color Palette for Handles:
User experience is prioritized even in the finer details, with handles available in an array of colors including red, blue, green, black, and more upon request. This customization option not only adds a touch of personality and branding to the installation process but also aids in clear identification and organization during complex assembly tasks.


4. Thoughtful Edge Design for Safety and Comfort:

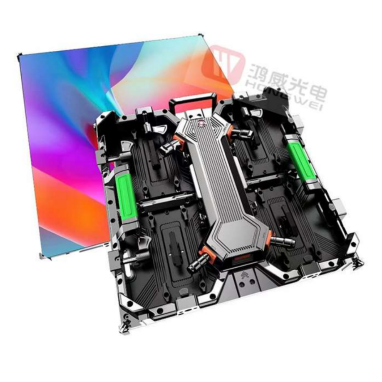

The LED display panels feature ergonomically designed handles with smooth edges that safeguard users' hands from injury during handling and installation. Additionally, each panel is equipped with corner protectors to shield delicate LED modules from potential damage, ensuring the longevity and optimal performance of the display system.


5. Dual-Maintenance Accessibility:
The outdoor naked-eye 3D creative LED display is engineered for both front and rear maintenance, catering to diverse installation scenarios and preferences. This dual-accessibility simplifies upkeep and repair tasks, whether performed from the front in spaces with limited rear access or from the back in installations where the front surface must remain uninterrupted. This feature greatly enhances the practicality and ease of maintenance, minimizing downtime and ensuring the display remains in top condition for extended periods.





More details





We can help you to design and customize your own led display, we work with professional engineers who continuously develop new products, constantly solve the pain points of the market and industry of led display.

One stop led video wall solutions: We provide complete led video wall proposal, including led panels, power
supply, control system, hanging beam, flight case, installation frame and other accessories.

Knowing that our products and your needs is the most important thing, suitable proposal can save so many times and cost.
24 hours online pre-sale and after-sales customer service, no time difference

Product Size

led display size

Product Specification

P2.604 outdoor LED display

Pixel pitch 2.604mm
Led type SMD1415
Usage Outdoor
Protection class IP65
Brightness >5000nits
Led panel material Die casting aluminum with Front/back service
Led panel size 500 x 500mm
Pixel density 147456 dot/m2
Weight 6.5 kgs
Power supply 110/220v-50/60Hz
Avg power consumption 250w/m2

P2.976 outdoor LED Display

Pixel pitch 2.976mm
Led type SMD1415
Usage outdoor
Protection class IP65
Brightness >5000nits
Led panel material Die casting aluminum with Front/back service
Led panel size 500x500mm
Weight 6.5kgs
Power supply 110/220v-50/60Hz
Avg power consumption 250w per square meters

P3.91 Outdoor LED Display

Pixel pitch 3.91mm
Led type SMD1921
Usage Outdoor
Protection class IP65
Brightness >5000nits
Led panel material Die casting aluminum with Front/back service
Led panel size 500 x 500mm
Pixel density 65536 dot/m2
Weight 6.5 kgs
Power supply 110/220v-50/60Hz
Avg power consumption 250w/m2

Technical Specification

Led lifetime 100000 hours
Viewing angle 140 ° / 140 °. Extended angle that improves viewing of images from the side
Working temperature and humidity -30°C / 50°C 10%~95%
Refresh rate 3840Hz
Control system Novasater/Colorlight/Linsn
Video signal input HDMI, DVI, VGA…
Grayscale 14-16 bit
Brightness control Programmable
  • PROGRAMMABLE ON AND OFF
  • FAST AND EASY INSTALLATION
  • SUPPORTED VIDEO AND IMAGE FILES: AVI, WMV, MPG, MOV, VOB, MP4, FLV, Bmp, jpg, png ...

Product Application

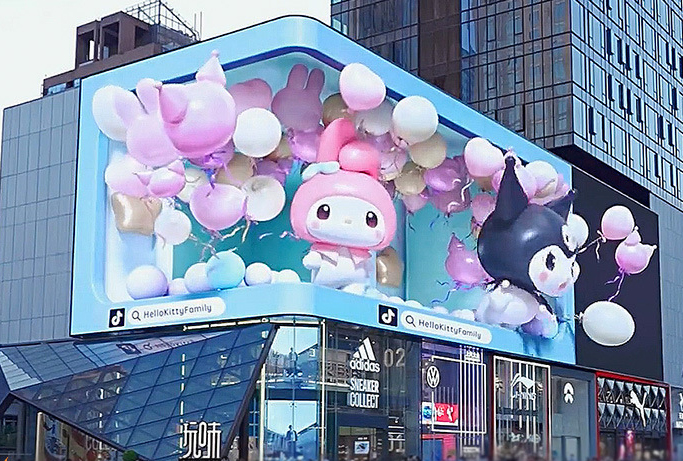

3D Outdoor Led Display For Advertising

3D Outdoor Led Display For Advertising

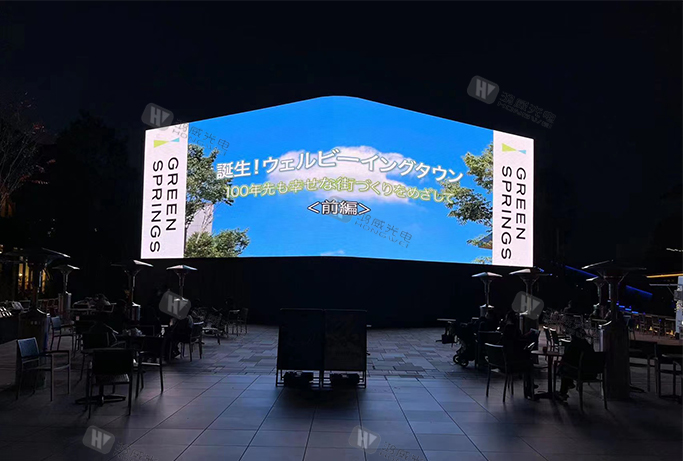

Outdoor right-angled naked-eye 3D creative LED display

Outdoor right-angled naked-eye 3D creative LED display

Outdoor street naked-eye 3D creative LED display

Outdoor street naked-eye 3D creative LED display

Standing On Floor Outdoor Led Video Wall

×
