Product Feature
1. Excellent naked-eye 3D visual effects:
Our outdoor naked-eye 3D creative LED display adopts advanced 3D LED display technology, which can present vivid three-dimensional images with a strong sense of depth to the audience without wearing any auxiliary equipment.
2. High-strength outdoor design:
This LED display is specially designed for outdoor environments, has excellent waterproof, dustproof, and anti-corrosion properties, and can cope with various complex climatic conditions. The high-brightness display ensures that the picture is still clearly visible under strong light.
3. Flexible customized box structure:
According to the actual needs of customers and the installation environment, we provide a variety of material options such as iron boxes, stainless steel boxes, and aluminum boxes. Whether it is a sturdy and durable iron box, a stainless steel box with excellent corrosion resistance and aesthetics, or a lightweight aluminum box with excellent heat dissipation, the display structure can be ensured to be stable and meet the aesthetic and functional requirements of different scenarios. At the same time, the box can be customized into a right-angled or curved shape as needed to achieve perfect integration with buildings and landscapes and enhance the overall space aesthetic.

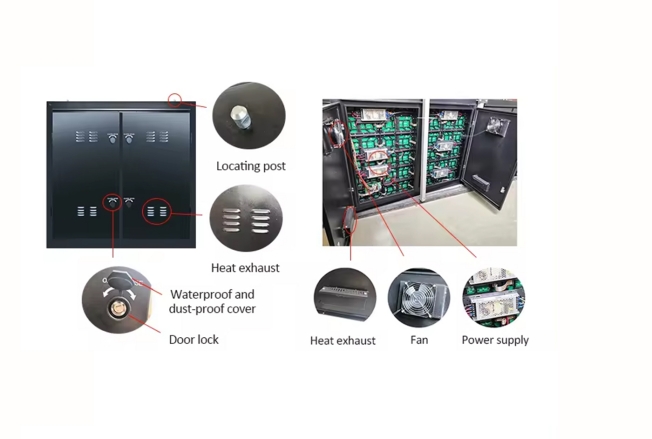

More details
Locating post
Heat exhaust
Waterproof and dust-proof cover
Door lock
Heat exhaust
Fan
Power supply
We can help you to design and customize your own led display, we work with professional engineers who continuously develop new products, constantly solve the pain points of the market and industry of led display.
One stop led video wall solutions: We provide complete led video wall proposal, including led panels, power
supply, control system, hanging beam, flight case, installation frame and other accessories.
Knowing that our products and your needs is the most important thing, suitable proposal can save so many times and cost.
24 hours online pre-sale and after-sales customer service, no time difference

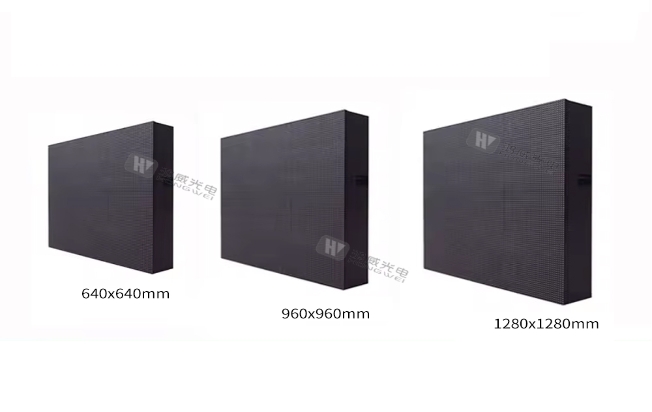

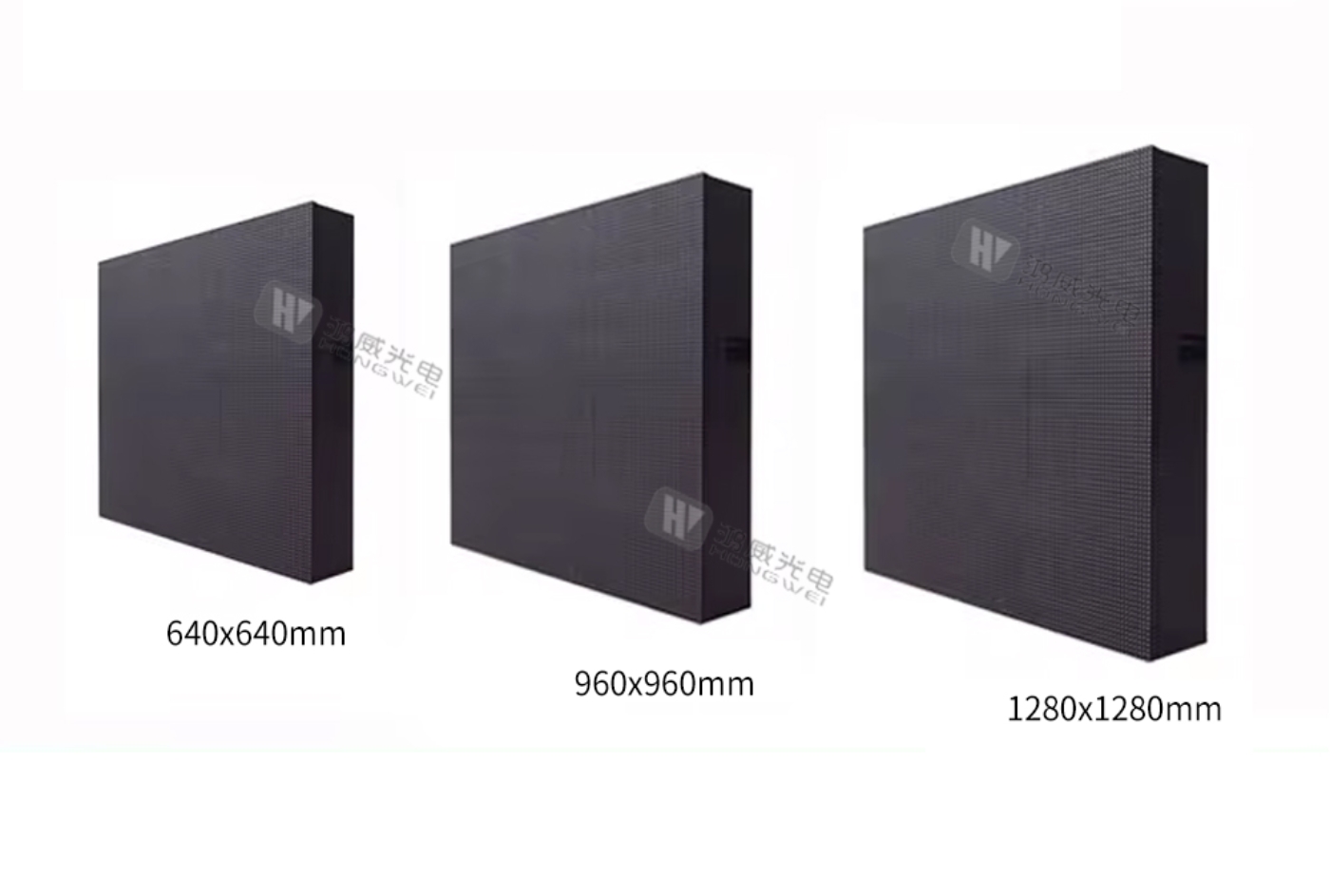

Product Size
Product Specification

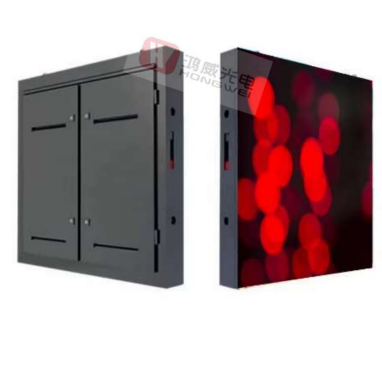

P5 outdoor 3D led display
Pixel pitch | 5mm |
Led type | SMD1921 |
Usage | Outdoor |
Protection class | IP65 |
Brightness | 6500nits |
Led panel material | Iron |
Led panel size | 960 x 960mm |
Refresh rate | 3840Hz |
Pixel density | 40000 dot/m2 |
Weight | 33 kgs |
Power supply | 110/220v-50/60Hz |
Avg power consumption | 350w per square meters |

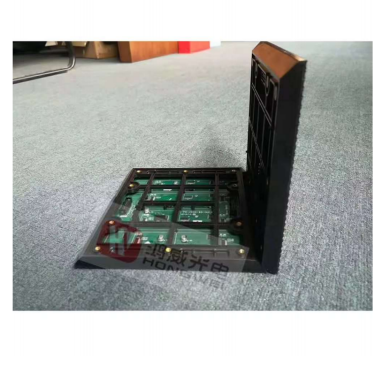

P6 outdoor 3D led display
Pixel pitch | 6mm |
Led type | SMD3535 |
Usage | Outdoor |
Protection class | IP65 |
Brightness | 6500nits |
Led panel material | Iron |
Led panel size | 960x960mm |
Refresh rate | 3840Hz |
Pixel density | 27777 dot/m2 |
Weight | 33kgs |
Power supply | 110/220v-50/60Hz |
Avg power consumption | 350w per square meters |

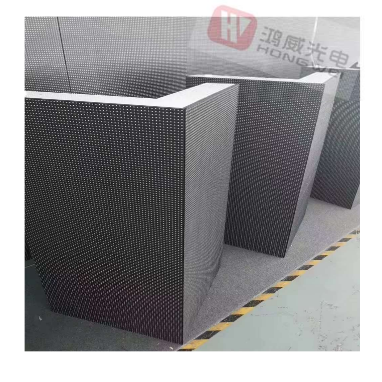

P8 outdoor 3D led display
Pixel pitch | 8mm |
Led type | SMD3535 |
Usage | Outdoor |
Protection class | IP65 |
Brightness | 86500nits |
Led panel material | Iron |
Led panel size | 960 x 960mm |
Refresh rate | 3840Hz |
Pixel density | 15625 dot/m2 |
Weight | 33 kgs |
Power supply | 110/220v-50/60Hz |
Avg power consumption | 350w per square meters |

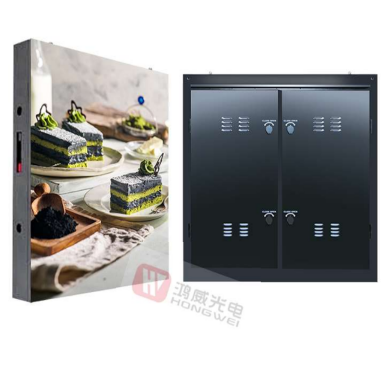

P10 outdoor 3D led display
Pixel pitch | 10mm |
Led type | SMD3535 |
Usage | Outdoor |
Protection class | IP65 |
Brightness | 6500nits |
Led panel material | Iron |
Led panel size | 960x960mm |
Refresh rate | 1920-3840Hz |
Pixel density | 10000 dot/m2 |
Weight | 33kgs |
Power supply | 110/220v-50/60Hz |
Avg power consumption | 350w per square meters |
Technical Specification
Led lifetime | 100000 hours |
Viewing angle | 140 ° / 140 °. Extended angle that improves viewing of images from the side |
Working temperature and humidity | -30°C / 55°C 10%~95% |
Control system | Novasater/Colorlight/Linsn |
Video signal input | HDMI, DVI, VGA… |
Grayscale | 14-16 bit |
Brightness control | Programmable |
- PROGRAMMABLE ON AND OFF
- FAST AND EASY INSTALLATION
- SUPPORTED VIDEO AND IMAGE FILES: AVI, WMV, MPG, MOV, VOB, MP4, FLV, Bmp, jpg, png ...

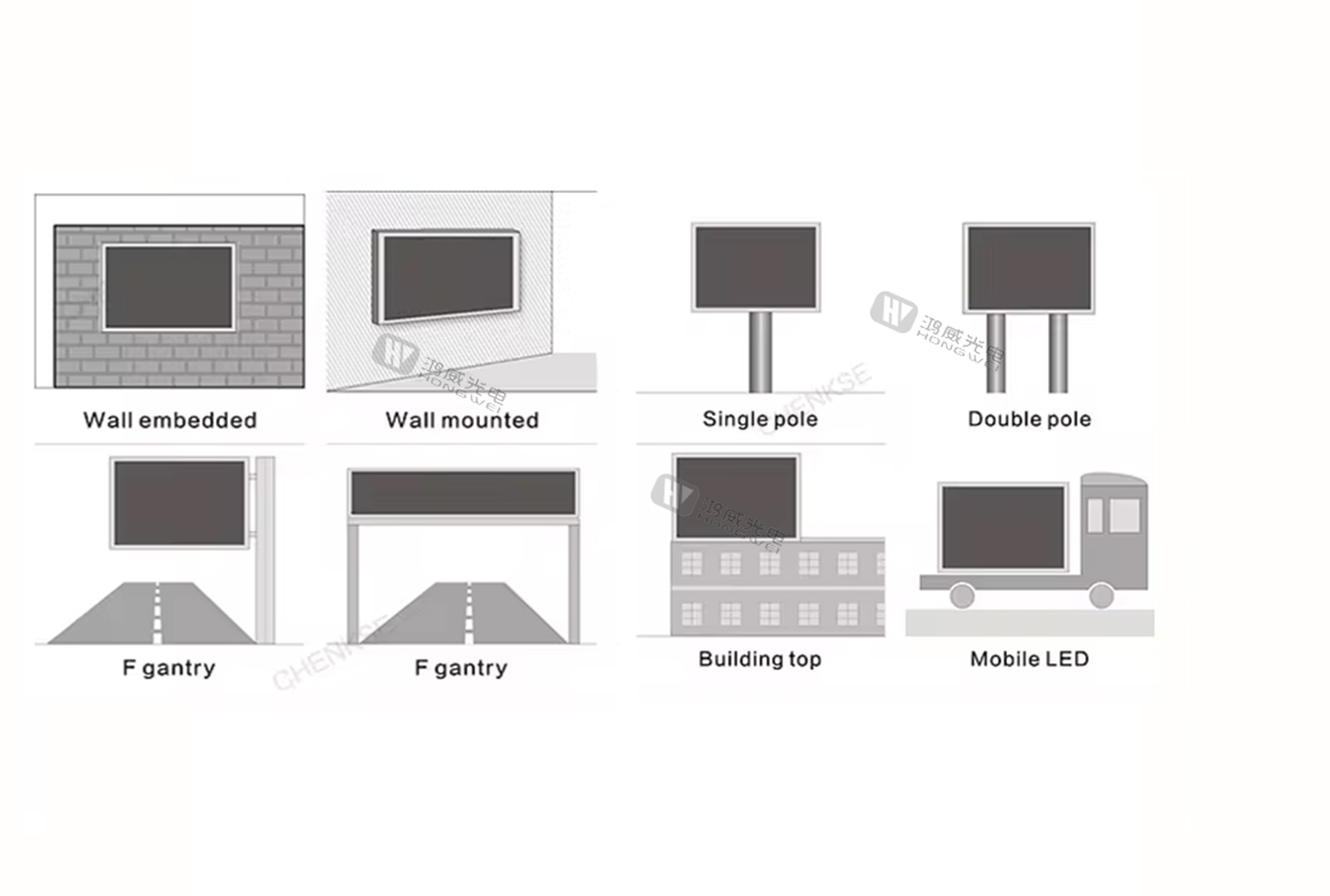

Product Application
3D curves creative LED display

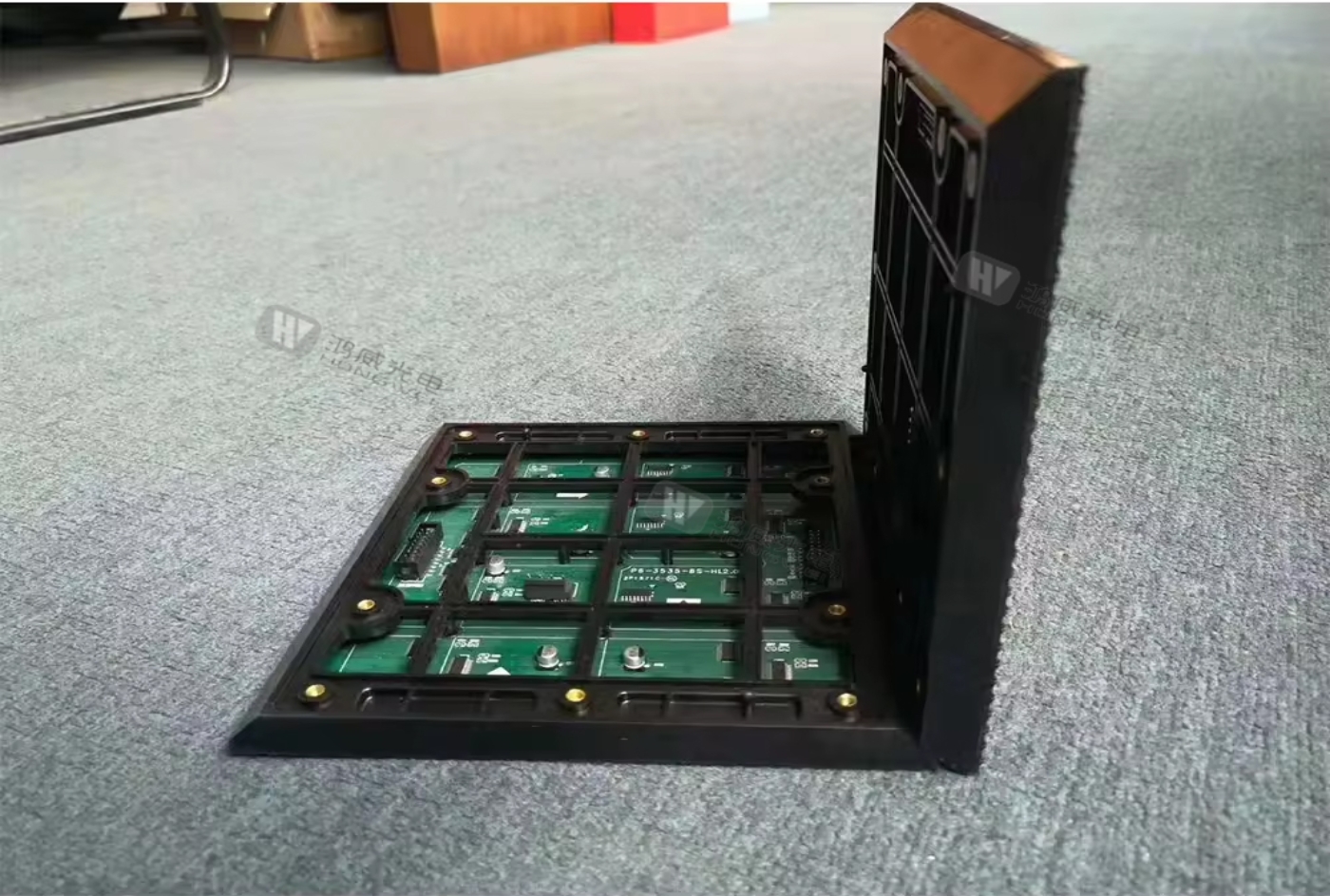

Outdoor naked-eye 3D creative LED display
Outdoor 3D right angles creative LED display
Outdoor 3D right angles creative LED display
