Product Feature

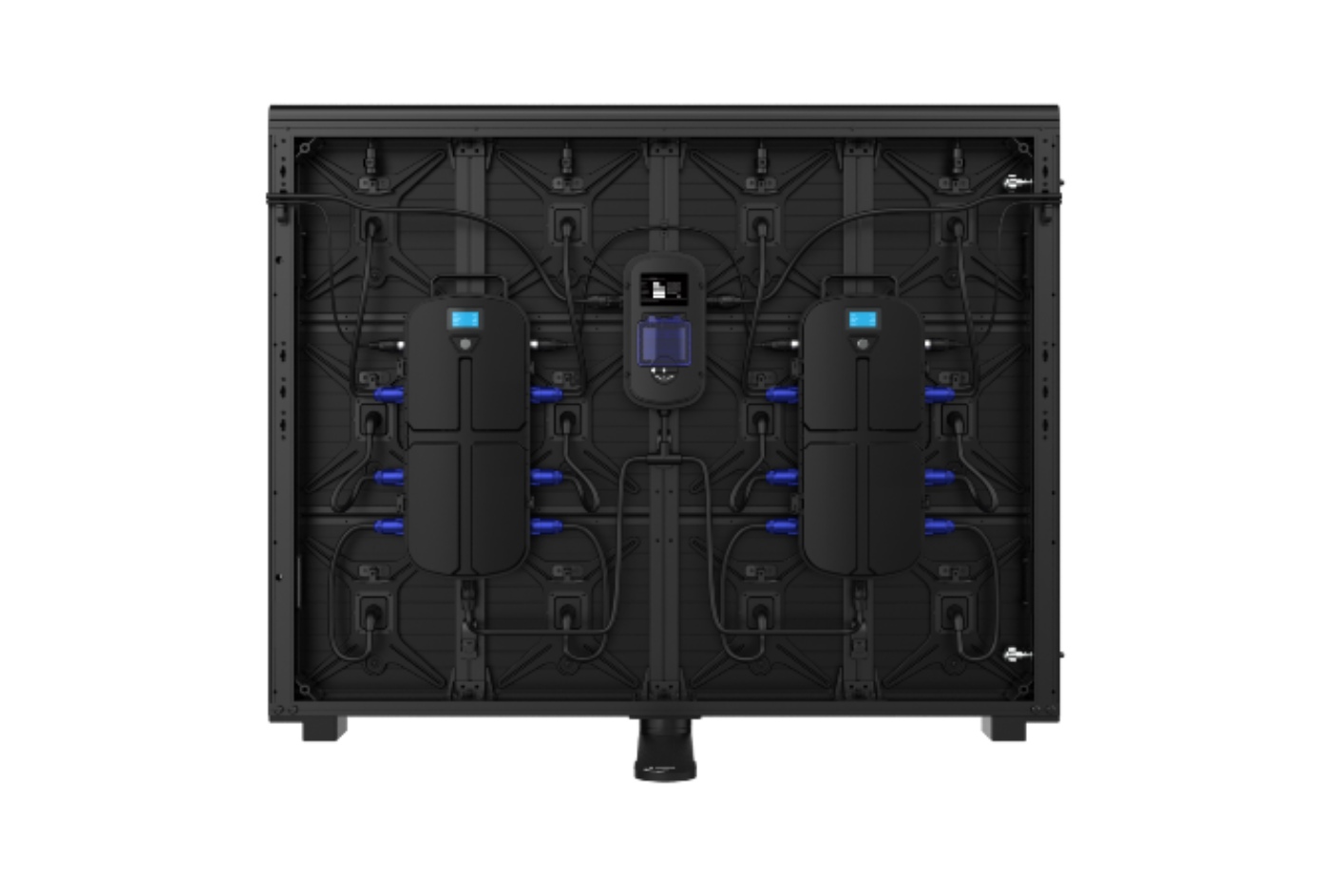

1. Front and rear maintenance: supports front and rear disassembly of modules and other components.
2. Quick maintenance: 4 locks fix the module to the cabinet, and the antenna plug connects the module to the power box. It only takes 10 seconds to replace a module. The power box is assembled on the frame through 2 hangers, and other connections are made through the antenna plug. Replacement can be completed within 30 seconds, which is very convenient.
3. Energy saving: With low-voltage DC power supply, the product energy consumption is saved by about 10%.
4. Anti-ultraviolet: The structural parts are mixed with anti-ultraviolet materials, which can work for a long time in the sun without discoloration.
5. Meet UEFA requirements: The product design parameters and performance fully meet the UEFA standard requirements.
6. Fully waterproof design: 100% sealed module and 100% sealed power box, both sides (front and back) are IP65.
7. Soft shutter and rubber protection: Anti-collision and soft shutter design to protect athletes from impact.
8. External test: There is a test button on each cabinet, which can be used for cabinet display test, including color, scan line, grayscale test.
More details
Cabinet rubber cover protector
Soft screen mask
Fast locks
Aviation connector
We can help you to design and customize your own led display, we work with professional engineers who continuously develop new products, constantly solve the pain points of the market and industry of led display.
One stop led video wall solutions: We provide complete led video wall proposal, including led panels, power
supply, control system, hanging beam, flight case, installation frame and other accessories.
Knowing that our products and your needs is the most important thing, suitable proposal can save so many times and cost.
24 hours online pre-sale and after-sales customer service, no time difference

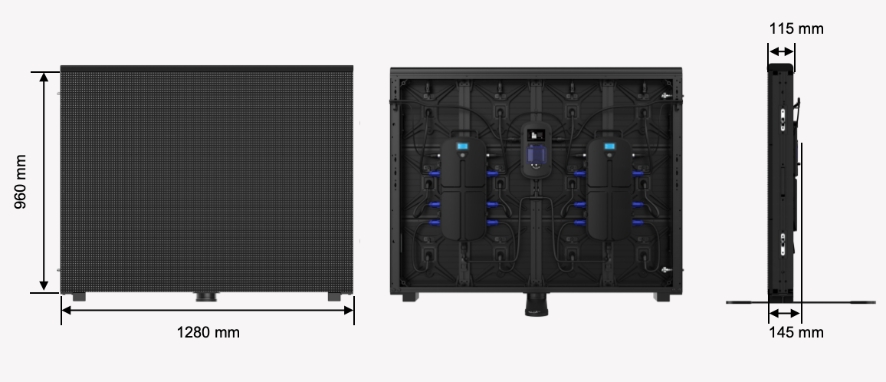

Product Size
Product Specification

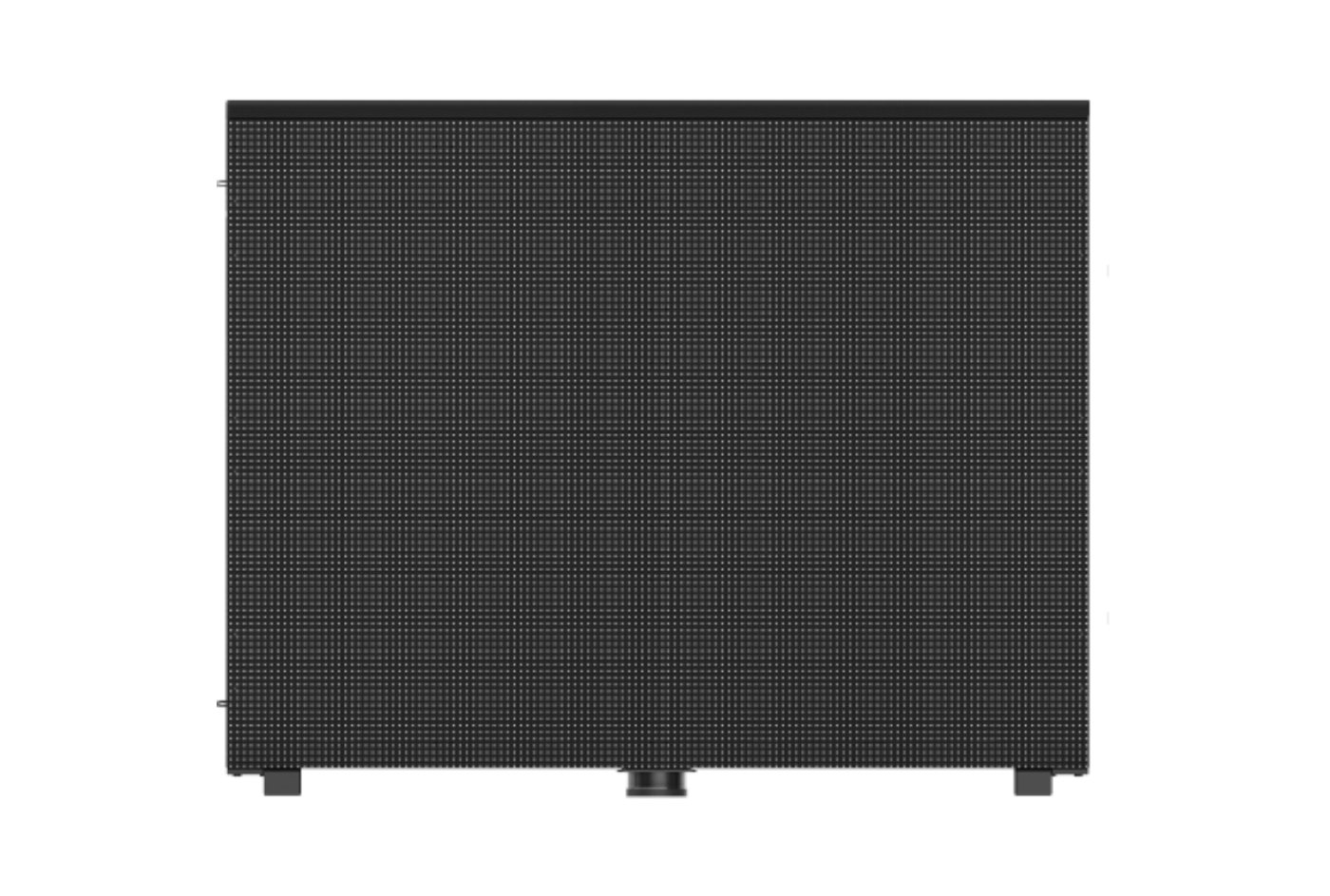

P10 Outdoor Stadium LED Display Front & Rear Service
Pixel pitch | 10mm |
Led type | SMD3535 |
Usage | Outdoor |
Protection class | IP65 |
Brightness | 6600nits |
Led panel material | Die casting Aluminum |
screen size | 1280×960×145mm |
Module Size | 320x320mm |
Weight | 49 kgs |
Power supply | 110/220v-50/60Hz |
Max Power Consumption (W/㎡) | 651 |
Avg power consumption | 195W / m2 - SmartPower system for less consumption |
Technical Specification
Led lifetime | 100000 hours |
Viewing angle | 140 ° / 140 °. Extended angle that improves viewing of images from the side |
Working temperature and humidity | -30°C / 55°C 10%~95% |
Refresh rate | 3840Hz |
Pixel density | 10000 dot/m2 |
Control system | Novasater/Colorlight/Linsn |
Video signal input | HDMI, DVI, VGA… |
Grayscale | 14-16 bit |
Brightness control | Programmable |
- PROGRAMMABLE ON AND OFF
- FAST AND EASY INSTALLATION
- SUPPORTED VIDEO AND IMAGE FILES: AVI, WMV, MPG, MOV, VOB, MP4, FLV, Bmp, jpg, png ...
Product Application
Outdoor stadium LED screen
Outdoor stadium audience LED screen
Outdoor stadium runway LED screen
Stadium audience LED display
