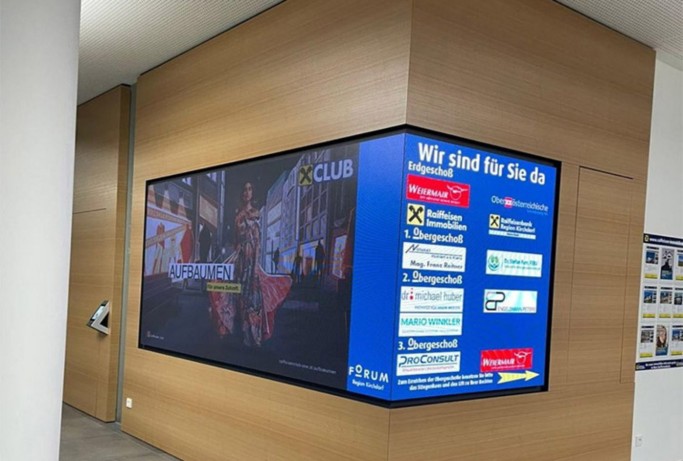

Indoor right angle LED screen
Product Feature

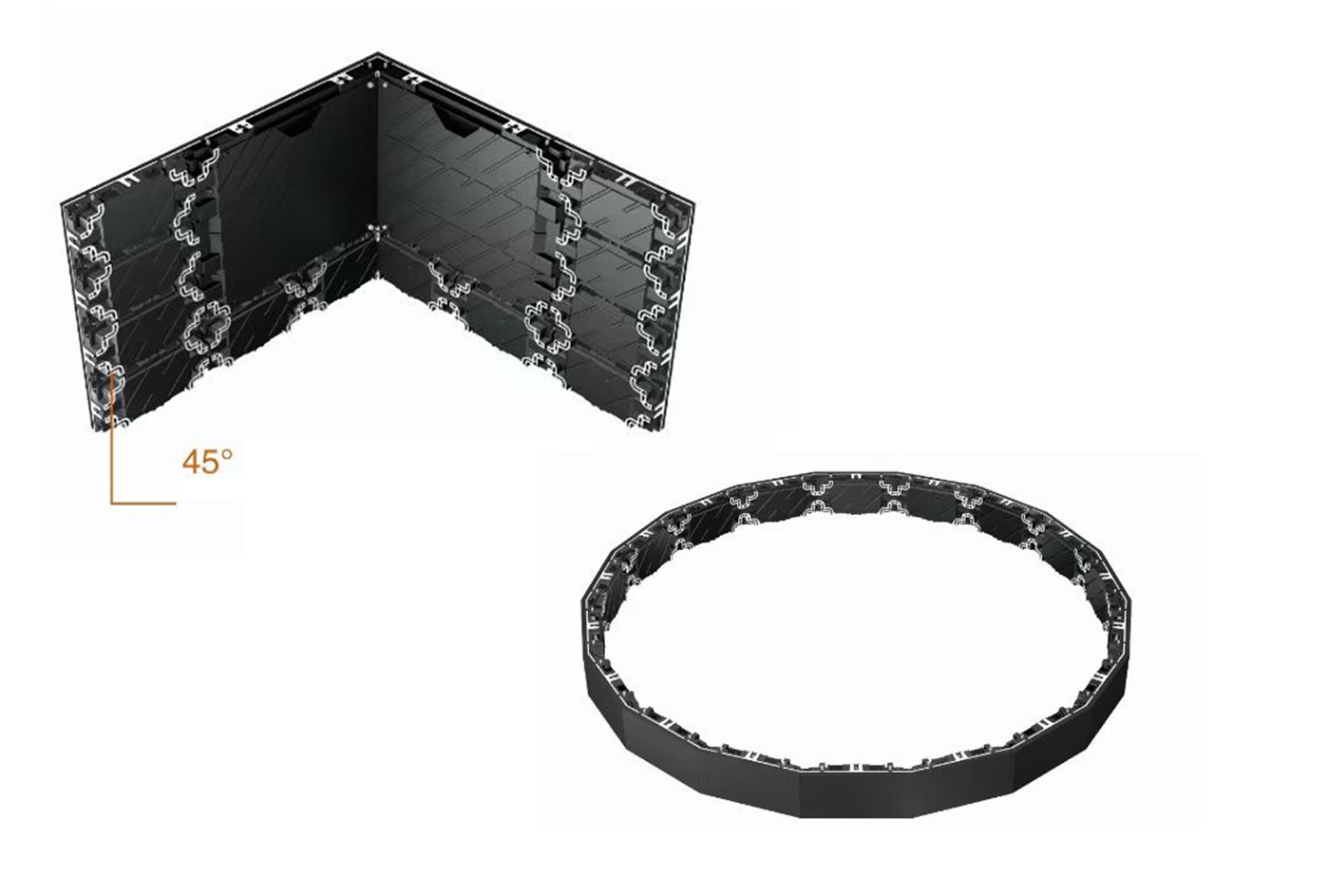

Versatile Angle Configuration:
The cabinet can be configured with a 45-degree cut angle, providing flexibility in adapting to different spaces and angles.
The screen itself boasts a crisp 90-degree right angle, ensuring sharp and seamless visuals.
Fast Front and Rear Maintenance:
The LED module, power supply, and cards are all designed for easy access and maintenance from the front, eliminating the need for complex rear-side operations.
This front-maintenance capability significantly reduces downtime and makes maintenance tasks more efficient.

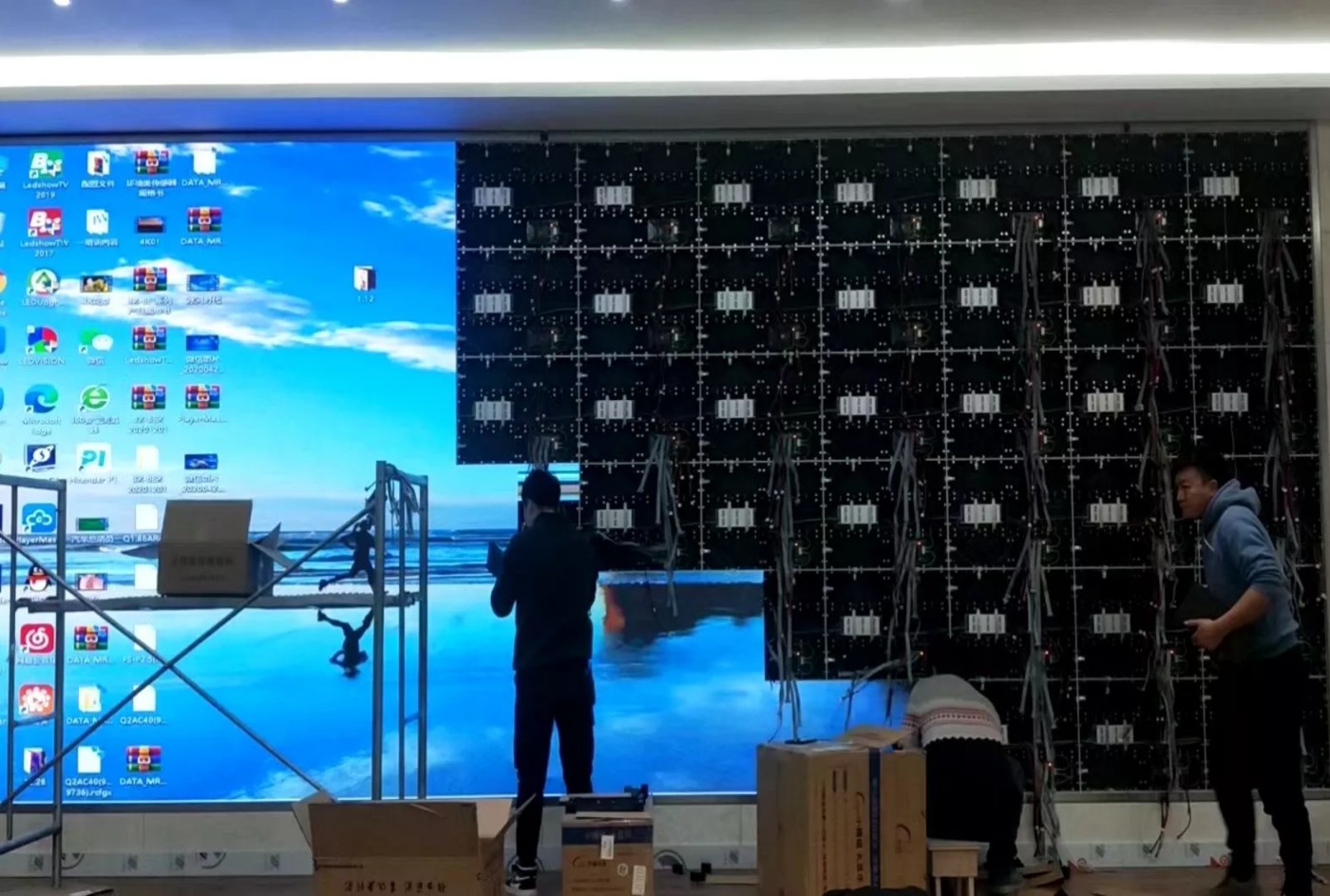

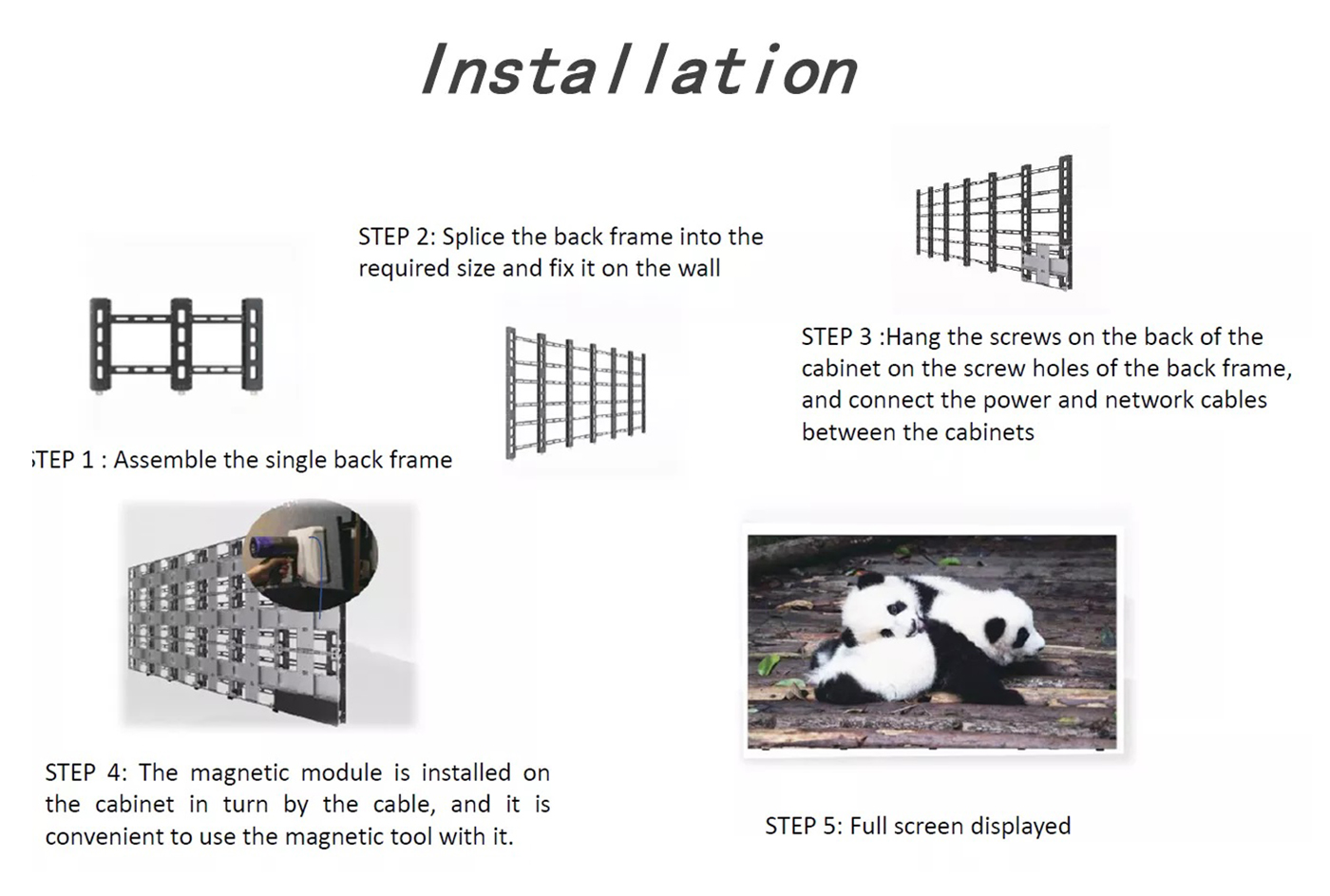

Effortless Installation:
The display screen can be securely mounted using our convenient connection plate, ensuring a stable and reliable installation.
We also offer a simplified steel frame design that not only makes installation straightforward but also helps to reduce labor and raw material costs.
Fully Customizable Size with 16:9 Aspect Ratio:
The size of the display is fully customizable to fit a 16:9 aspect ratio, making it perfect for high-definition video display.
This aspect ratio ensures that every detail of the picture is rendered with stunning clarity, providing an immersive and engaging visual experience for the audience.
More details
We can help you to design and customize your own led display, we work with professional engineers who continuously develop new products, constantly solve the pain points of the market and industry of led display.

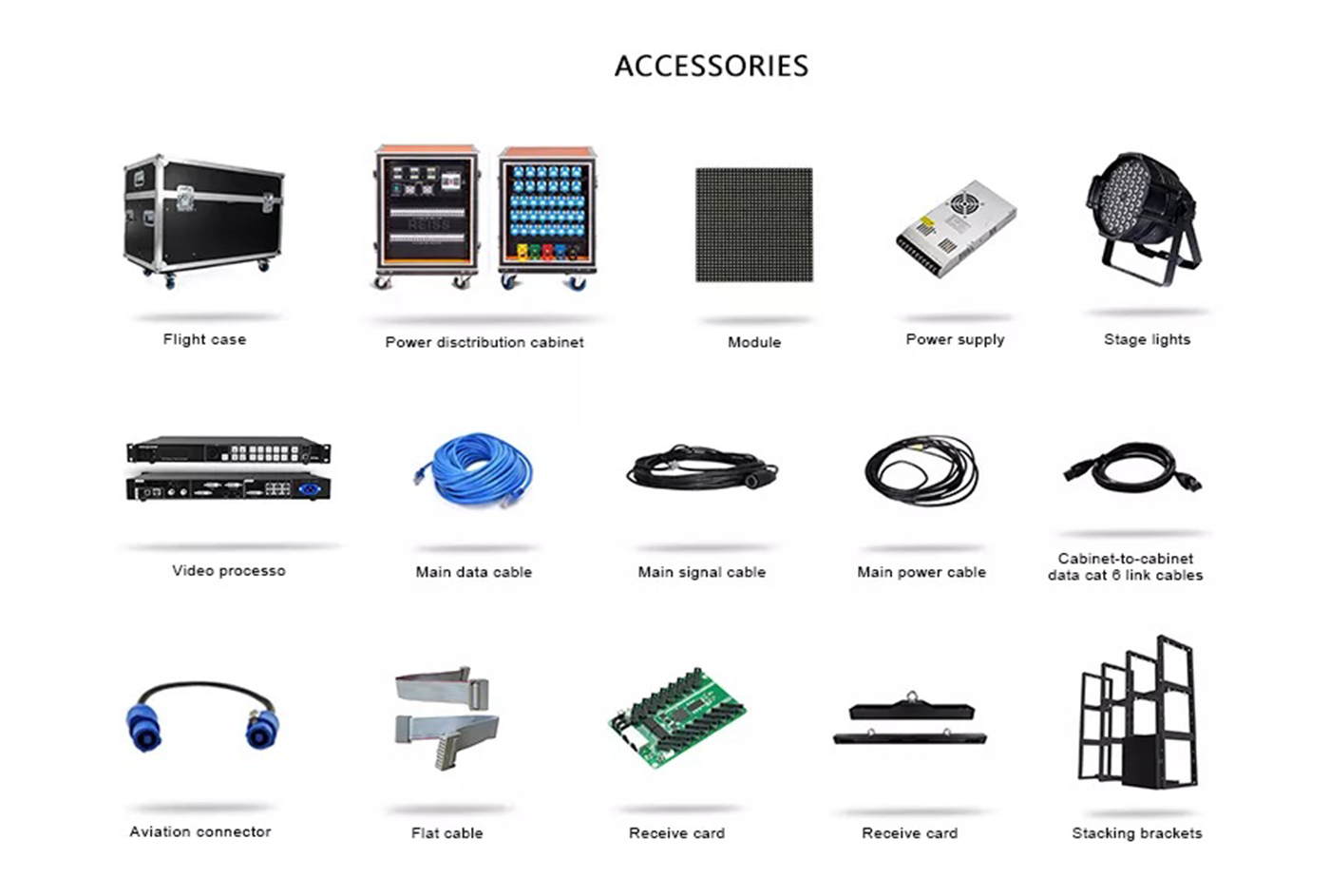

One stop led video wall solutions: We provide complete led video wall proposal, including led panels, power
supply, control system, hanging beam, flight case, installation frame and other accessories.
Knowing that our products and your needs is the most important thing, suitable proposal can save so many times and cost.
24 hours online pre-sale and after-sales customer service, no time difference

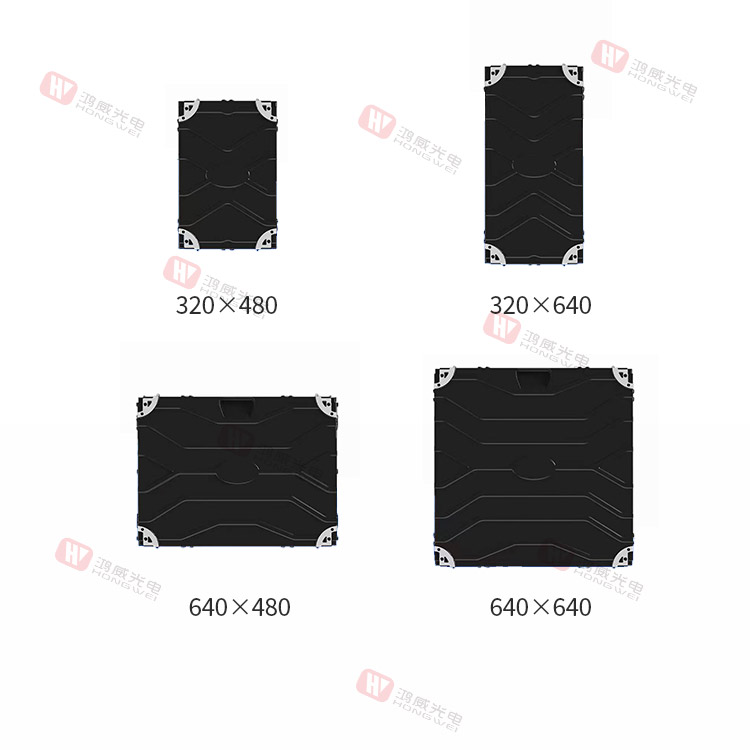

Product Size
Product Specification
P2 Indoor Wall Mounted Led Display
| Pixel pitch | 2mm |
| Led type | SMD1415 |
| Usage | Indoor |
| Protection class | IP33 |
| Brightness | 600nits |
| Led panel material | Die casting aluminum |
| Led panel size | 640 x 640mm |
| Refresh rate | 3840Hz |
| Pixel density | 250000 dot/m2 |
| Weight | 7 kgs |
| Power supply | 110/220v-50/60Hz |
| Avg power consumption | 250w per square meters |
P2.5 Indoor Wall Mounted Led Display
| Pixel pitch | 2.5mm |
| Led type | SMD2121 |
| Usage | Indoor |
| Protection class | IP33 |
| Brightness | 600nits |
| Led panel material | Die casting aluminum |
| Led panel size | 640x480mm |
| Refresh rate | 3840Hz |
| Pixel density | 160000 dot/m2 |
| Weight | 5.5kgs |
| Power supply | 110/220v-50/60Hz |
| Avg power consumption | 250w per square meters |
Technical Specification
| Led lifetime | 100000 hours |
| Viewing angle | 140 ° / 140 °. Extended angle that improves viewing of images from the side |
| Working temperature and humidity | -30°C / 55°C 10%～95% |
| Control system | Novasater/Colorlight/Linsn |
| Video signal input | HDMI, DVI, VGA… |
| Grayscale | 14-16 bit |
| Brightness control | Programmable |
- PROGRAMMABLE ON AND OFF
- FAST AND EASY INSTALLATION
- SUPPORTED VIDEO AND IMAGE FILES: AVI, WMV, MPG, MOV, VOB, MP4, FLV, Bmp, jpg, png ...
Product Application

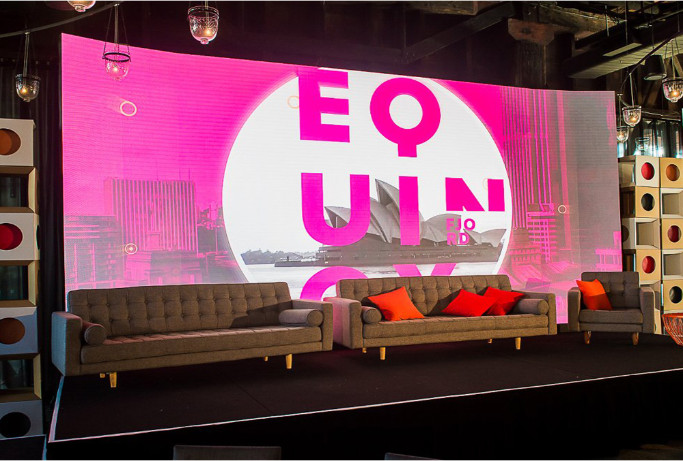

Conference LED background wall screen

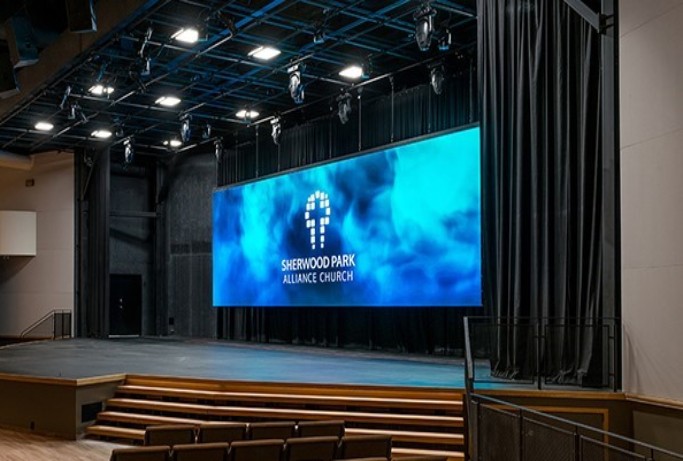

Indoor church LED screen

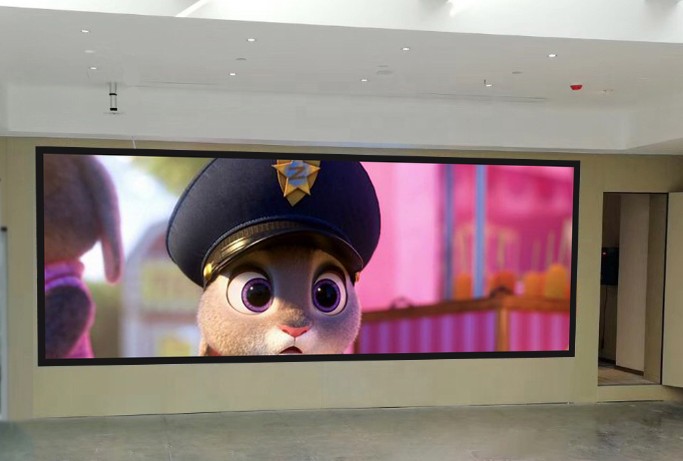

Indoor exhibition hall LED screen
