Box glued handle color: Green, Blue, Red, Black...
Product Feature
- Straight-edge lock/Arc lock: can make curved screen, 90 degree corner and flat screen
- Cable free hard link design, front and back service are supported
- Concave and convex setup support
- Perfect seamless stitching and fast installation
- Lightweight and slim thickness
- Front or back maintenance
More details

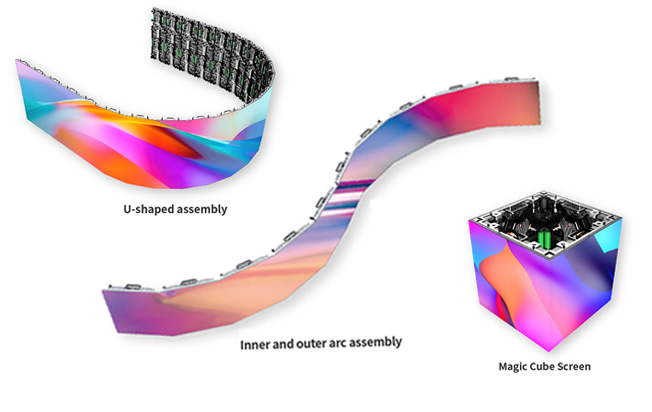

Straight-edge lock/Arc lock
Straight-edge can make flat and 90 degree corner screen, Arc lock can make concave and convex screen.
Module Protection Corner

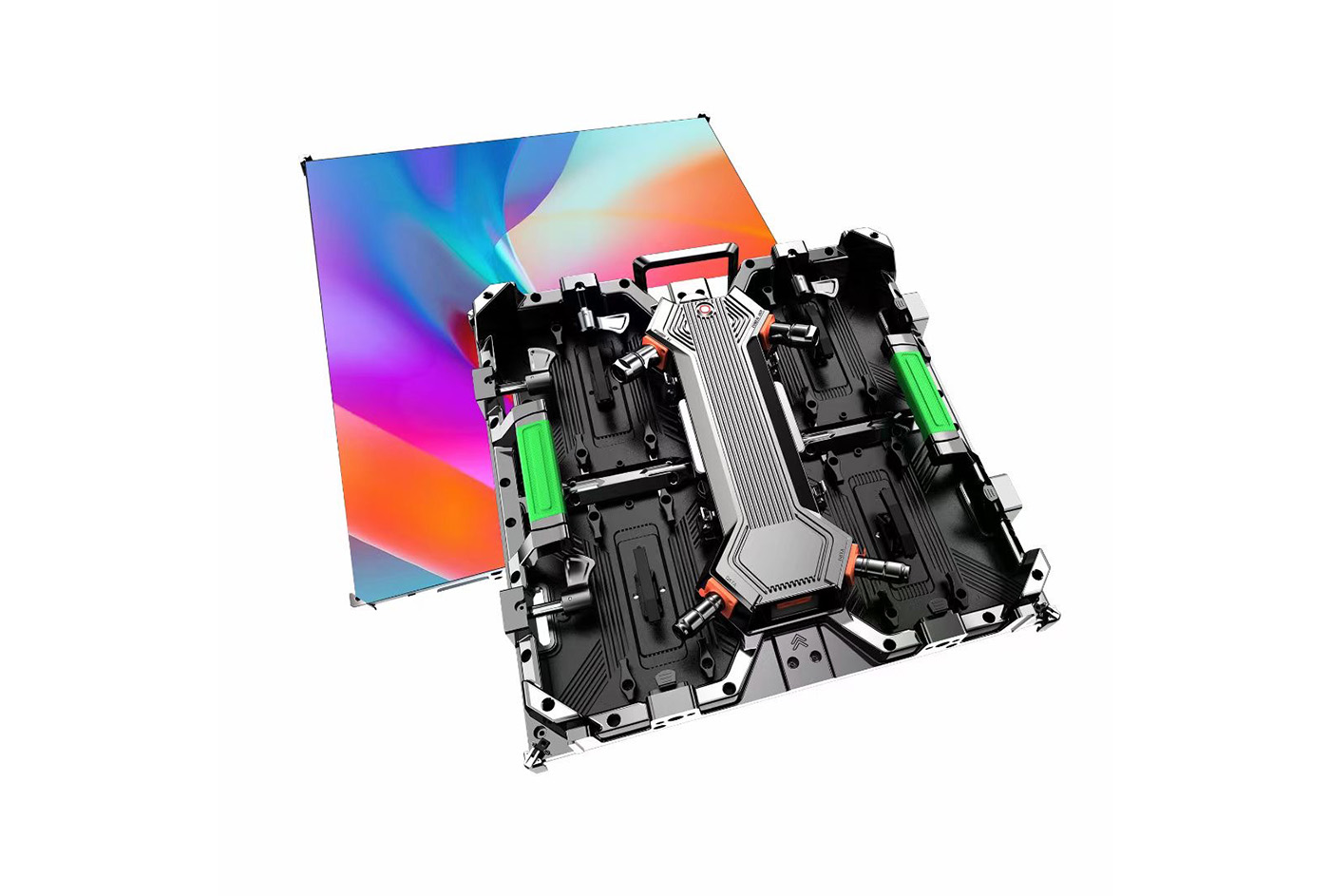

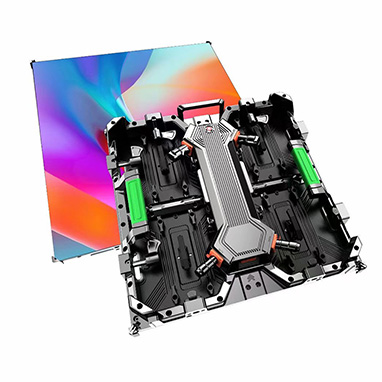

All around have a smooth handle that doesn't hurt your hands, corner protection designis avoiding any hits for modules' corner,100% protect LEDs.
We can help you to design and customize your own led display, we work with professional engineers who continuously develop new products, constantly solve the pain points of the market and industry of led display.
One stop led video wall solutions: We provide complete led video wall proposal, including led panels, power supply, control system, hanging beam, flight case, installation frame and other accessories.
Knowing that our products and your needs is the most important thing, suitable proposal can save so many times and cost.
24 hours online pre-sale and after-sales customer service, no time difference

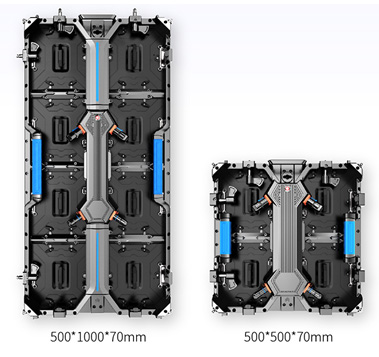

Product Size
Product Specification
Indoor LED Display
Pixel pitch | 2.604mm |
Led type | SMD1515 |
Usage | Indoor |
Protection class | IP33 |
Brightness | 800nits |
Led panel material | Die casting aluminum |
Led panel size | 500 x 500mm |
Weight | 6.4kgs |
Curved | +15 degree |
90 Degree | ok, can make corner |
Power consumption | 800W/250W per square meter |
Outdoor LED Display
Pixel pitch | 2.604mm |
Led type | SMD1515 |
Usage | Outdoor |
Protection class | IP65 |
Brightness | 5000nits |
Led panel material | Die casting aluminum |
Led panel size | 500 x 500mm |
Weight | 6.8 kgs |
Curved | +15 degree |
90 Degree | ok, can make corner |
Power supply | 110/220v-50/60Hz |
Power consumption | 800W/250W per square meter |
Technical Specification
Led lifetime | 100000 hours |
Viewing angle | 140 ° / 140 °. Extended angle that improves viewing of images from the side |
Working temperature and humidity | -30°C / 55°C 10%~95% |
Refresh rate | 1920-3840Hz |
Pixel density | 147456 dot/m2 |
Control system | Novasater/Colorlight/Linsn |
Video signal input | HDMI, DVI, VGA… |
Grayscale | 14-16 bit |
Brightness control | Programmable |
- PROGRAMMABLE ON AND OFF
- FAST AND EASY INSTALLATION
- SUPPORTED VIDEO AND IMAGE FILES: AVI, WMV, MPG, MOV, VOB, MP4, FLV, Bmp, jpg, png ...
Product Application

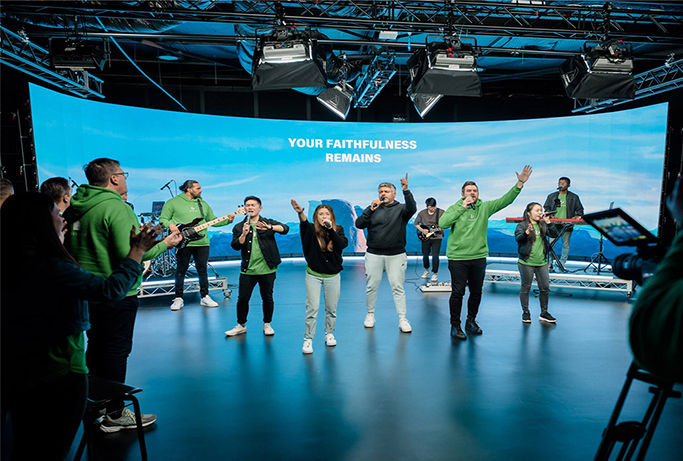

Indoor Public Events

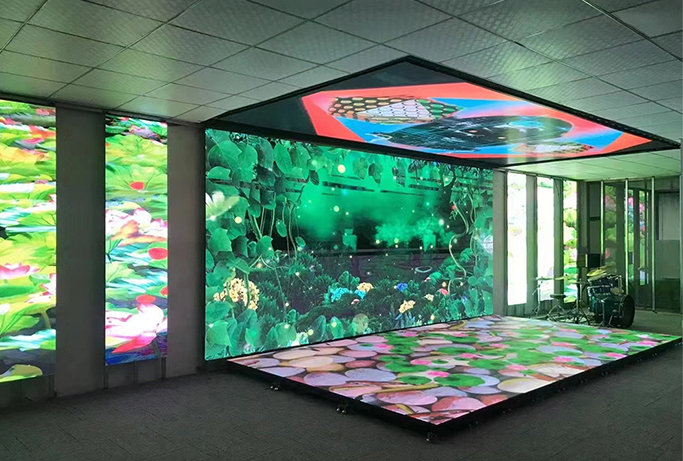

Show Room

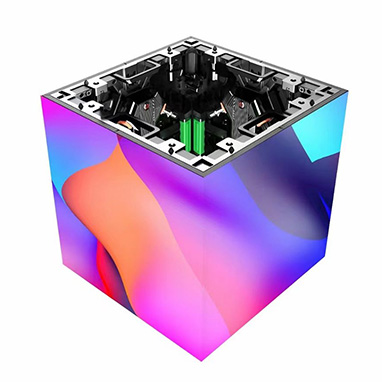

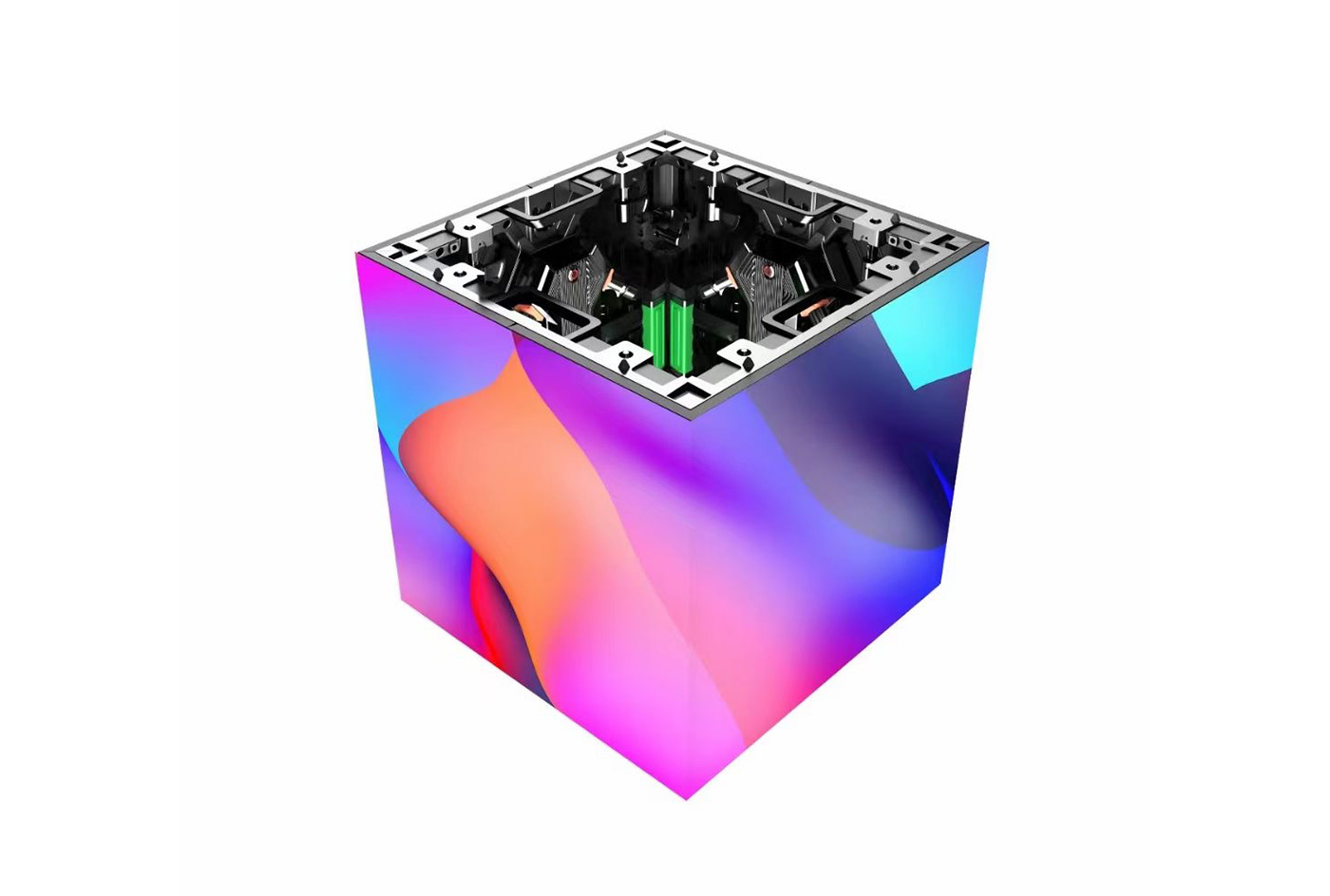

90 Degree Corner
Outdoor Public Events
