Product Feature
1. High-definition and delicate picture quality:
It uses high-quality LED lamp beads and precise pixel spacing control to ensure that the display shows excellent image quality with high resolution, high contrast, and wide color gamut.
2. Customized design:
Our outdoor naked-eye 3D creative LED displays provide personalized customization options for right-angle and curved screens. The right-angle design ensures smooth corner transition of the large 3D effect display and avoids visual abruptness. The curved screen cleverly adapts to building corners or specific space layouts, fitting the environment with elegant curves and enhancing the artistic beauty of the space.
3. Multiple material options:
We provide three box materials of iron, stainless steel and aluminum alloy for you to choose from to meet the needs of different application scenarios.
4. Ultra-high protection level:
The display has high-grade waterproof and dustproof performance of IP65-IP67, ensuring that the internal electronic components will remain safe when exposed to rain and dust pollution. Whether it is exposed to the sun or strong winds and rain, it can maintain stable operation, fully demonstrating the all-weather reliability of outdoor displays.
5. Flexible installation solution:
We provide a variety of installation methods including wall-mounted, single pole support, double pole support and roof installation, and can provide professional CAD drawing design solutions according to your specific project needs.
More details
Locating post
Heat exhaust
Waterproof and dust-proof cover
Door lock
Heat exhaust
Fan
Power supply
We can help you to design and customize your own led display, we work with professional engineers who continuously develop new products, constantly solve the pain points of the market and industry of led display.
One stop led video wall solutions: We provide complete led video wall proposal, including led panels, power
supply, control system, hanging beam, flight case, installation frame and other accessories.
Knowing that our products and your needs is the most important thing, suitable proposal can save so many times and cost.
24 hours online pre-sale and after-sales customer service, no time difference
Product Size
Product Specification

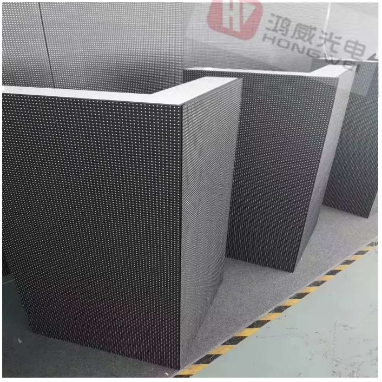

P2.5 outdoor 3D led display
Pixel pitch | 2.5mm |
Led type | SMD1415 |
Usage | Outdoor |
Protection class | IP65 |
Brightness | 5500nits |
Led panel material | Iron |
Led panel size | 960 x 960mm |
Refresh rate | 3840Hz |
Pixel density | 160000 dot/m2 |
Weight | 33 kgs |
Power supply | 110/220v-50/60Hz |
Avg power consumption | 350w per square meters |

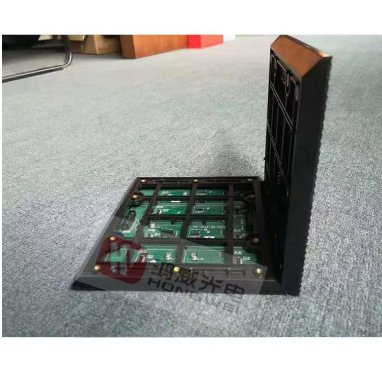

P3 outdoor 3D led display
Pixel pitch | 3mm |
Led type | SMD1415 |
Usage | Outdoor |
Protection class | IP65 |
Brightness | 6000nits |
Led panel material | Iron |
Led panel size | 960x960mm |
Refresh rate | 3840Hz |
Pixel density | 111111 dot/m2 |
Weight | 33kgs |
Power supply | 110/220v-50/60Hz |
Avg power consumption | 350w per square meters |

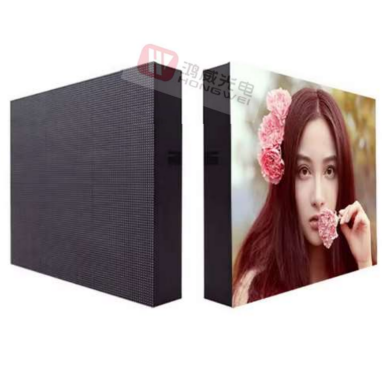

P4 outdoor 3D led display
Pixel pitch | 4mm |
Led type | SMD1415 |
Usage | Outdoor |
Protection class | IP65 |
Brightness | 6500nits |
Led panel material | Iron |
Led panel size | 960 x 960mm |
Refresh rate | 3840Hz |
Pixel density | 62500 dot/m2 |
Weight | 33 kgs |
Power supply | 110/220v-50/60Hz |
Avg power consumption | 350w per square meters |
Technical Specification
Led lifetime | 100000 hours |
Viewing angle | 140 ° / 140 °. Extended angle that improves viewing of images from the side |
Working temperature and humidity | -30°C / 55°C 10%~95% |
Control system | Novasater/Colorlight/Linsn |
Video signal input | HDMI, DVI, VGA… |
Grayscale | 14-16 bit |
Brightness control | Programmable |
- PROGRAMMABLE ON AND OFF
- FAST AND EASY INSTALLATION
- SUPPORTED VIDEO AND IMAGE FILES: AVI, WMV, MPG, MOV, VOB, MP4, FLV, Bmp, jpg, png ...
Product Application
3D right-angle creative LED display

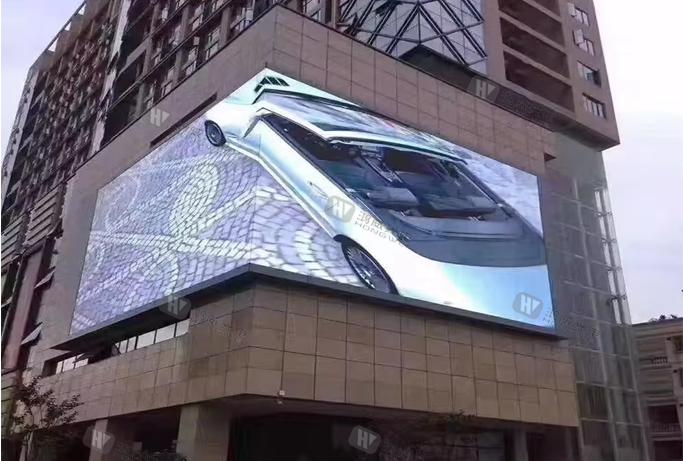

Outdoor naked-eye 3D creative LED display

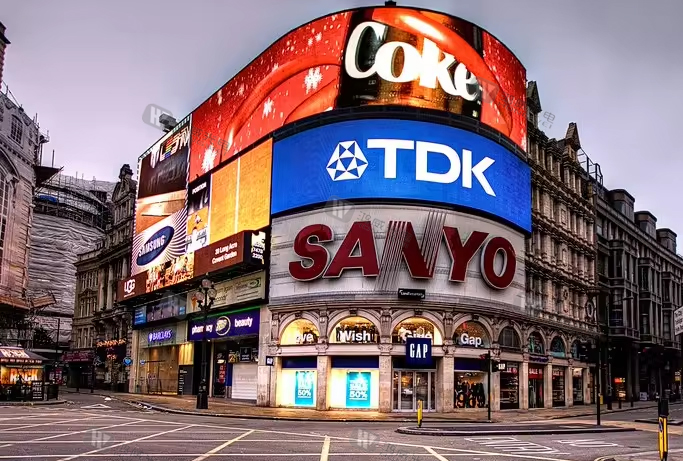

Outdoor 3D curves creative LED display
Outdoor 3D right angles creative LED display
