3D LED displays have become a powerful tool in advertising, entertainment, and public installations. These displays offer a mesmerizing, larger-than-life experience that captivates viewers and engages their senses in ways traditional 2D LED screens cannot. Whether it’s a giant outdoor digital billboard or a storefront display, 3D LED screens are revolutionizing how we interact with visual content. But how do these high-tech displays work? This article will explore the underlying technology behind 3D LED displays and explain how they create such striking, depth-filled effects.
Before diving into 3D LED technology, it’s important to understand how a regular LED display works. LED (Light Emitting Diode) displays are composed of tiny semiconductor devices that emit light when an electric current passes through them. These LEDs are arranged into a grid of pixels, each capable of emitting red, green, or blue (RGB) light, the three primary colors used to create full-color images on a screen.
LED displays come in many variations, but their basic functionality is the same: they use light to form images through the combination of different intensities of RGB light. The more densely packed the pixels, the higher the resolution of the screen, which is crucial for creating clear, detailed images.
In 2D LED displays, light is emitted from the pixels in a flat, uniform way, creating images on a flat surface. However, 3D LED displays go a step further by introducing a sense of depth and dimensionality that creates the illusion of three-dimensional objects and scenes.
A 3D LED display differs from a standard 2D display in that it creates the illusion of depth, making images appear to float, pop out, or even move in space. This effect is achieved using a variety of methods:
Stereoscopic 3D: In this approach, viewers typically wear glasses to perceive the 3D effect. The screen displays two slightly different images, one for each eye, which the brain combines to perceive depth.
Autostereoscopic 3D: This glasses-free version uses special techniques to project 3D images without the need for additional equipment. Autostereoscopic displays rely on parallax barriers or lenticular lenses to send different images to each eye from different viewing angles, creating the illusion of depth.
The key difference lies in how the screen manipulates light, angles, and layering to create an image that appears three-dimensional to the human eye.
Several components work together to make a 3D LED display come to life:
LED Panel: The core of the display, consisting of thousands or even millions of tiny LEDs arranged in pixels. Each pixel can emit RGB light, combining to create full-color images.
Driver ICs and Controllers: These electronic components manage the signals sent to the LEDs, controlling their brightness, color, and timing. For 3D displays, these controllers must be capable of processing complex 3D data and synchronizing it across the entire display.
Optical Lenses and Filters: For autostereoscopic displays, lenticular lenses or parallax barriers are used. These optical elements direct light toward specific angles, ensuring that different images are presented to each eye to create the 3D effect.
Content Source: The 3D visuals on these displays are created by 3D media. This could be specially-created 3D video or images, or converted 2D content. In either case, the 3D display relies on a depth map or layered images to add the illusion of dimension.
The magic behind 3D LED displays lies in how they manipulate depth perception. Our brains interpret depth by comparing the different perspectives presented by our two eyes. When a 3D display shows slightly different images for each eye, the brain perceives these images as part of the same scene, but from different angles, creating a sensation of depth.
In multiview systems, multiple perspectives are displayed simultaneously on the screen. This allows the display to adjust based on the viewer’s position, so the 3D effect changes as they move, increasing immersion.
The parallax barrier and lenticular lens systems on autostereoscopic displays work by directing light from each pixel to specific angles, ensuring that each eye receives a different image. The interaction between the light and the viewer’s eyes creates the illusion of depth, even without the need for special glasses.
There are several different types of 3D LED displays, each with its own unique method of producing three-dimensional visuals:
Autostereoscopic 3D LED displays: Also called naked-eye 3D LED displays or glasses-free 3D LED displays, these displays do not require viewers to wear special glasses. They use technologies such as parallax barriers or lenticular lenses to direct different images to each eye, creating a glasses-free 3D experience. These displays are often used in public places, digital signage, and advertising.
Stereoscopic 3D LED Displays (With Glasses): These displays use special active or passive glasses that filter light for each eye, allowing viewers to see different images from each perspective. This method is commonly used in cinemas or exhibitions, where high-quality 3D content is displayed.
Transparent 3D LED Displays: These displays allow light to pass through, enabling the creation of 3D effects that are visible without blocking the background. Used in advertising and retail environments, these displays create the illusion of floating 3D content while still revealing the space behind the display.

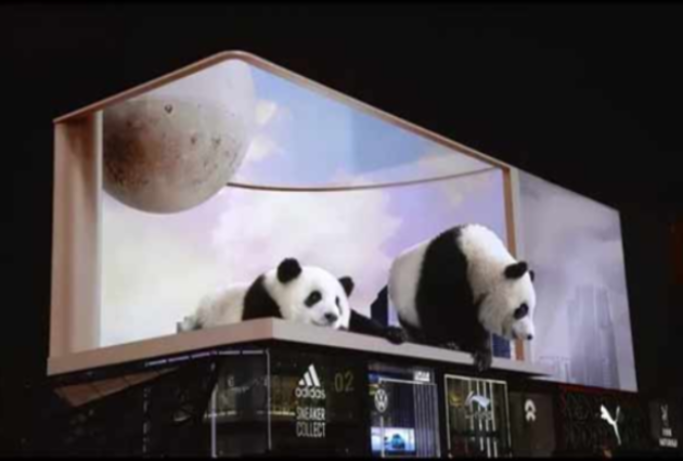

（Video shows naked eye 3D outdoor LED display）
The versatility of 3D LED displays means they are used in a wide variety of fields:

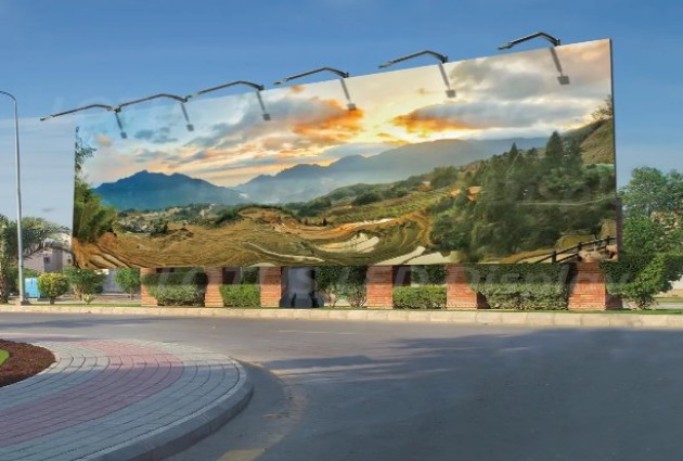

Outdoor Advertising and Digital Billboards: 3D LED displays have revolutionized outdoor advertising, making content come to life in ways that grab attention and leave a lasting impression on viewers.
Retail and Storefront Displays: Many stores use 3D displays to promote products or services with dynamic, lifelike imagery. These displays can be used for virtual product try-ons, interactive ads, and more.
Entertainment and Events: From concerts to sports stadiums, 3D LED displays enhance the audience experience by providing immersive visuals that complement live performances and broadcasts.
Public Art and Cultural Installations: Artists and cultural institutions use 3D LED displays for large-scale installations and exhibits, enabling visitors to interact with digital art in new, exciting ways.
While 3D LED displays offer incredible visual effects, they come with some challenges:
Viewing Angle and Distance: For autostereoscopic displays, the 3D effect is often most effective when viewed from a specific angle or distance, which can limit where and how the display is used.
Content Creation and Conversion: Creating content in 3D is a more complex process than in 2D. Converting 2D media into 3D also requires sophisticated tools to ensure the content maintains its visual appeal and depth.
Cost and Maintenance: Due to the advanced technology required, 3D LED displays tend to be more expensive than traditional 2D displays. Additionally, maintaining these complex systems can be costly and challenging.
The future of 3D LED displays is promising, with advancements on the horizon:
Improved Resolution and Brightness: As display technology continues to evolve, 3D LED displays are becoming brighter, sharper, and more energy-efficient.
Integration with Augmented and Virtual Reality: Future 3D LED displays may integrate more closely with AR and VR technologies, providing even more immersive experiences.
Interactive Features: We may see more interactive 3D displays in public spaces, where users can interact with the content through motion or gestures.
3D LED displays are changing the way we experience visual media. Through sophisticated technology, including autostereoscopic displays, stereoscopic 3D systems, and transparent screens, these displays offer a unique way to engage audiences. From advertising and entertainment to public art and retail, the applications of 3D LED displays are vast and continue to grow. As technology advances, we can expect even more innovative uses for 3D displays in the future. Whether you’re gazing up at a digital billboard or stepping into a museum exhibit, 3D LED displays provide an exciting glimpse into the future of visual media.
